12 13
JUICER JUICER

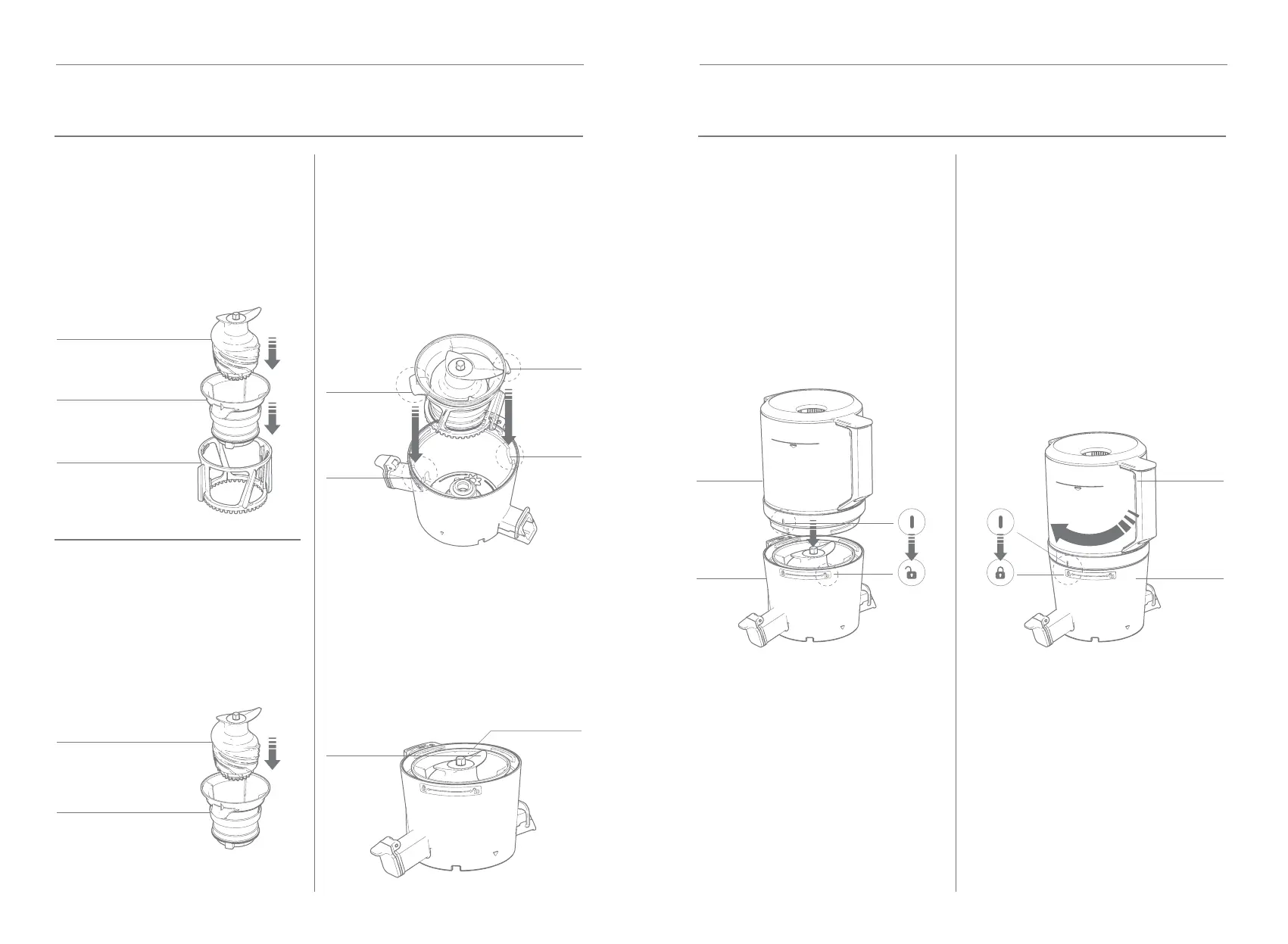

STEP 1
ASSEMBLE INNER
COMPONENTS
SORBET
ASSEMBLY
STEP 2
PLACE COMPONENTS
INTO CHAMBER
Place the auger into either the juice or
smoothie strainer.
Then place the combined auger and
strainer into the spinning brush.
Place the auger into the sorbet
attachment. Do not assemble the
spinning brush and move to step 2.
Remove pulp outlet gasket on pulp
outlet lever under the chamber.
Locate the LARGE and SMALL WINGS
on the outer rim of the strainer. Next,
locate the corresponding LARGE AND
SMALL CUTOUTS inside the chamber.
Place the strainer set assembly into the
chamber.
Press the auger down rmly, so the top
blade of the auger sits FLUSH with the
top of the strainer.
Large
Wing
Small
Wing
Small
Cutout
Spinning Brush
Large
Cutout
Strainer
Top
Auger
Blade
STEP 1
ALIGN VERTICAL GUIDE
WITH UNLOCK SYMBOL
STEP 2
ROTATE HOPPER
TO LOCK
Align the vertical Guide mark on the
hopper with the Unlock symbol on the
chamber. Press hopper down to t
onto chamber.
Be sure components are pressed into
the chamber so the auger sits ush with
the top edge.
Next, rotate the hopper clockwise until
the Guide mark on the hopper is aligned
with the Lock symbol on the chamber.
If the hopper will not rotate to lock
properly, please check to make sure the
internal components of the chamber are
assembled correctly.
Hopper
Hopper
Chamber Chamber
GUIDE MARK
ON HOPPER
UNLOCK
SYMBOL ON
CHAMBER
GUIDE MARK
ON HOPPER
LOCK
SYMBOL ON
CHAMBER
Strainer
Auger
Note:
Spinning brush is not used
for sorbet strainer assembly.
Note:
The top of the auger and strainer must be
ush with chamber to install the hopper.
Sorbet
Attachment
Auger
ASSEMBLING THE CHAMBER ASSEMBLING THE HOPPER
