2.2 DMX Terminator
ln DMX control mode, the DMX output of the last light fixture should be connected with a DMX terminator (not included).
The terminator is connected with a 120Ω(OHM) resistor across Pin 2 and Pin 3 (As shown below).
This prevents interference caused by DMX signals in the transmitting process.
2.3 Address Setting of the Light Fixtutre.
2.4 Refer to the DMX reference guide and control the fixture via DMX/RDM console.
(For detailed operation please refer to the DMX/RDM console operation manual.)
2.5 Download the latest technical data from https://www.nanlite.com/index#/en.
Pin 1:GND(SCREEN)
Pin 2:Signal(-)
Pin 3:Signal(+)
Pin 4:N/C
Pin 5:N/C
Pin 1:GND(SCREEN)
Pin 2:Signal(-)
Pin 3:Signal(+)
Five Pin Three Pin

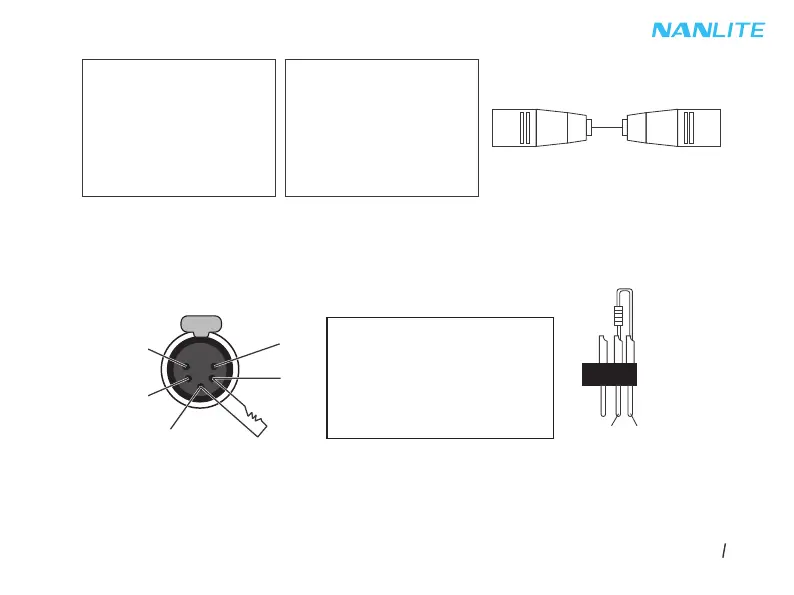

DMX Terminator Connection
Connect a 120Ω(OHM) resistor
across Pin 2 and Pin 3 in an XLR
plug and insert into the DMX
OUT socket on the last unit.
PIN 2 PIN 3
120Ω
1
2
3
5
4
