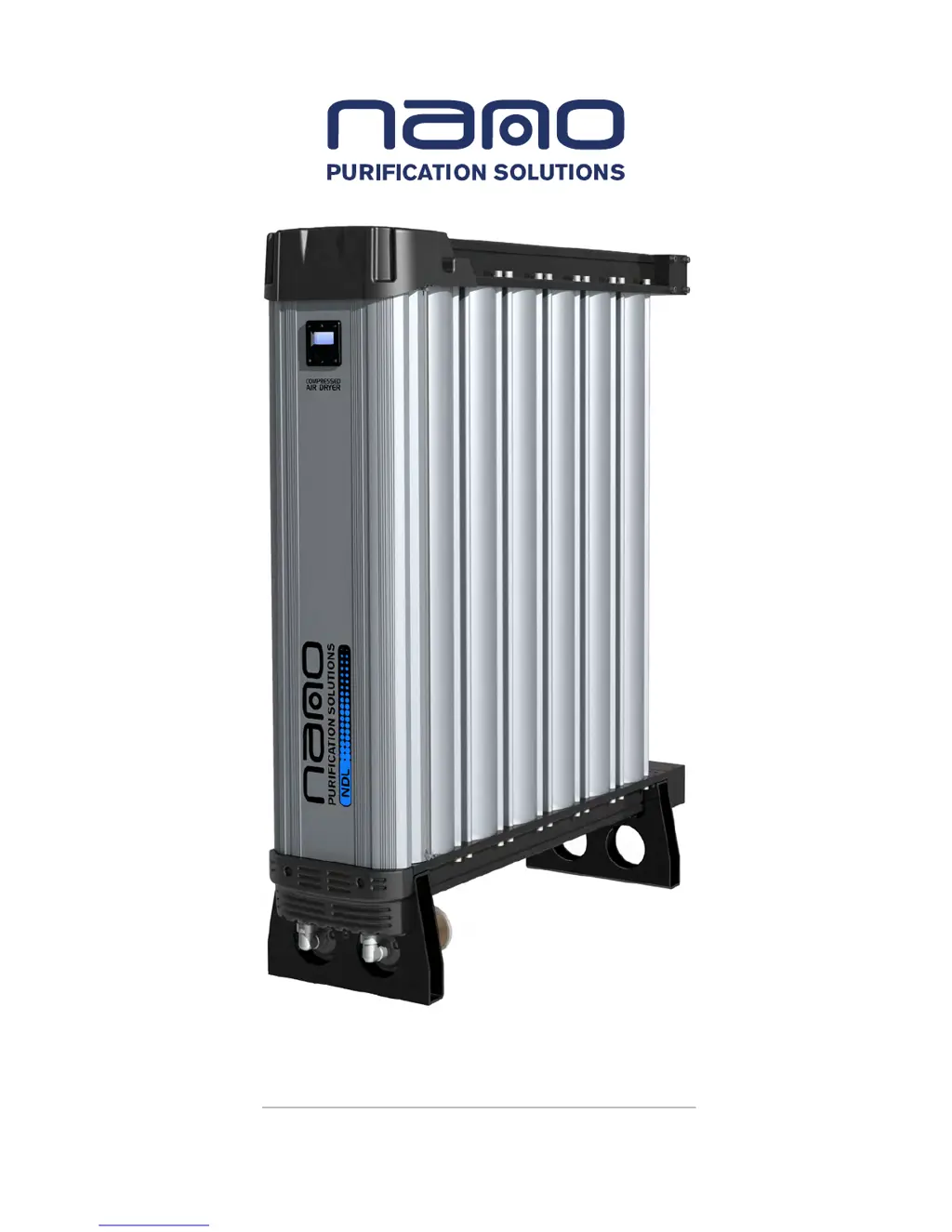

HEATLESS DESICCANT AIR DRYER
SERIES 3 AIR DRYER USER GUIDE

Table of Contents

Questions and Answers

  • C
    Curtis WeberJul 27, 2025
    Why is my NANO Dehumidifier showing poor dew point performance?
    • K
      Kiara HolmesJul 28, 2025
      Poor dew point performance in your NANO Dehumidifier can stem from several causes. First, ensure the inlet pressure is at least 58 psig (4 barg); adjust if needed. An electrical fault could also be the culprit, so verify the power is on and the front panel is illuminated, and that the dryer is cycling correctly. Moist or contaminated desiccant can also cause this issue; eliminate the contamination source and replace the desiccant. Other potential causes include too high air consumption (ensure dryer performance matches system needs), excessive inlet air temperature (check against specifications), or insufficient purge air (consult service personnel for adjustment). A blocked exhaust silencer can also contribute; consult service personnel to resolve this.
  • M
    Mrs. Veronica Garcia DDSAug 5, 2025
    What to do if my NANO Dehumidifier fails to cycle?
    • J
      Jacob DayAug 6, 2025
      If your NANO Dehumidifier fails to cycle, several factors could be responsible. First, check if the controller is powered and functioning correctly by observing the on-screen column status during normal cyclic operation. Also, check the power to the unit and the fuse. Ensure sufficient inlet pressure; it should be a minimum of 58 psig (4 barg), and adjust if necessary. If the unit fails to de-pressurize when cycling, the solenoid valve might be faulty; if it's receiving power but not clicking, replace it. Finally, check the inlet air supply if the outlet flow stops.
  • S
    Sean PetersonAug 16, 2025
    How to fix constant depressurization in NANO Dehumidifier?
    • S
      Sarah MyersAug 16, 2025
      Constant depressurization in your NANO Dehumidifier can occur if the dryer fails to initialize. Try switching the dryer off and then restarting it. Ensure the dryer is pressurized before powering it on to allow proper initialization before operation. Erratic airflow from the exhaust may also indicate a faulty or damaged valve, requiring service.

Summary

General Information

Document Introduction

Provides factory prescribed installation and maintenance procedures for the dryer.

Support Information

Contact details for parts and technical support for nano purification solutions.

Warranty Guidelines

Details the 5-year manufacturer's warranty for products purchased with an ES system.

Packaging Details

Describes how products are packaged in a wooden box and how to handle potential damage.

General Safety Precautions

Intended Use of the Product

Dryer is for compressed air treatment; operation is restricted to specified pressures and conditions.

Qualified Personnel

Only authorized, competent, and trained personnel are permitted to work on the product.

Safe Handling Procedures

Emphasizes using safe engineering practices, depressurizing, and isolating equipment before maintenance.

Technical Specifications

Technical Description

Explains the pressure swing adsorption principle using two desiccant beds.

Performance Specifications

Lists technical specifications including pressure, power supply, temperatures, and IP rating.

Product Contents and Unpacking

Series 3 Dryer Contents

Lists the items included in the Series 3 Compressed Air Dryer package.

Unpacking Guide

Provides illustrated instructions for safely unpacking the dryer from its wooden crate.

Physical and System Details

Product Dimensions

Details the dimensions and weight for various NDL models of the Series 3 dryer.

Equipment Overview

Identifies and labels the main components of the Series 3 dryer.

System Layout Diagram

Illustrates the typical system layout including compressor, receiver, separators, and the dryer.

Site Location Requirements

Specifies ideal conditions for installing the dryer, including temperature, surface, and space.

Installation Procedures

Mechanical Installation

Outlines the process for connecting inlet and outlet piping, including recommended filtration.

Electrical Installation

Details the steps for connecting the mains power cable to the dryer's controller.

Dryer Operation and Start-up

Dryer Operation Overview

Explains how to operate the dryer, including remote stop/start functionality.

6-Pin Electrical Connector Configuration

Shows the configuration of the 6-pin connector for various functions like retransmission and remote control.

Dryer Start-up Procedure

Provides a step-by-step guide for safely starting up the dryer after installation.

Performance Monitoring and Shutdown

Monitoring Dryer Performance

Explains how to monitor dew-point and the energy-saving economy mode.

Shutdown Procedure

Details the correct procedure for safely shutting down and depressurizing the dryer.

Maintenance and Servicing

Maintenance Guidelines

Lists guidelines for performing maintenance, emphasizing safety and using approved parts.

Cleaning Instructions

Instructions for cleaning the equipment using a damp cloth and mild detergent.

Daily Checks

Outlines daily visual and functional checks to ensure proper dryer operation.

Servicing Guidelines

Provides safety guidelines for carrying out servicing operations on the dryer.

Service Procedures and Kits

Details scheduled service intervals and the required service kits for different models.

Additional Service Kits

Describes the ES Upgrade Kit for converting to an energy-saving model.

Troubleshooting Guide

Troubleshooting Common Issues

Addresses common problems like poor dew point performance, failure to cycle, and constant depressurization.

NANO 3 series Specifications

General IconGeneral
BrandNANO
Model3 series
CategoryDehumidifier
LanguageEnglish
