ADDITIONAL
EZMs
AVAILABLE DEVICES
1. KEYPADS: GEM-RP2AS & GEM-RP1CAe2
2. X-10 INTERFACE: GEM-X10
3. WIRED ZONE EXPANDER: GEM-EZM816
4. WIRELESS RECEIVERS: GEM-RECV8, GEM-RECV16 & GEM-RECV96
5. RELAY MODULE: RM3008
6. VOICE INTERFACE: GEM-EVA
7. TELEPHONE INTERFACE: WIZARD2
(GEM-RP1CAe2)
2 LINE KEYPAD
REMOTE BUS
REMOTE BUS
NOTE: Refer to the EZM Installation Instructions for
specific wiring information.

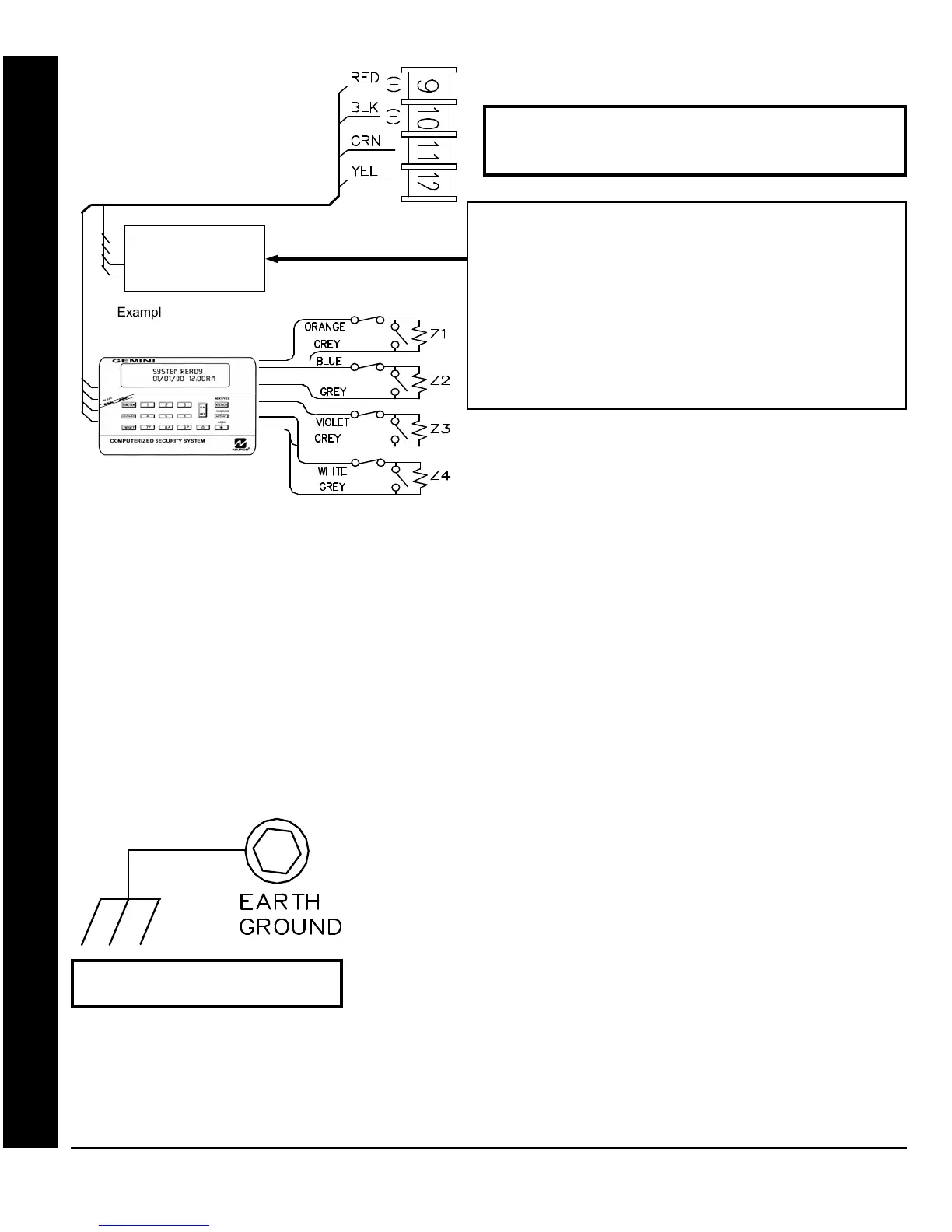

Connect the available devices as shown above to the remote bus terminals (9, 10, 11 & 12). Observe the correct color
wire connections. When connecting the keypads, first configure them accordingly (refer to the Keypad Configuration
Mode at the back of this manual). Keypads should be located near every exit/entry door. Up to seven keypads may be
connected if the longest cable run from the panel, to the farthest keypad (daisy chained or home-run) is less than 1000
feet. The maximum distance for seven keypads is 300 feet using 22 AWG. wire.
NOTE:
When running keypad wire,
avoid wiring parallel to other types of wiring.
EARTH GROUND
NOTE: Do not use a gas pipe, plastic
Connect the control panel EARTH GROUND screw to a metal cold-water
pipe using at least a #16 AWG. wire. Do not use a gas pipe, plastic pipe or
AC ground connections. Also, connect the circuit board to the metal
enclosure. Connect a wire with a ground lug crimped or soldered onto one
end of the EARTH GROUND screw to the cabinet.
NOTE:
Grounding
connections should avoid bends in the grounding wire whenever possible.
Wiring Connections: Remote Bus & Earth Ground
AVAILABLE DEVICES
1. KEYPADS: GEM-RP1CAe2, GEM-RP2ASe2, GEM-RP3DGTL, GEM-
K1CA, GEM-K2AS, GEM-K3DGTL (7 maximum)
2.
X-10 INTERFACE:
GEM-X10 (8 devices maximum)
3.
WIRED ZONE EXPANDER:
GEM-EZM8, GEM-EZM816 (32 zones
maximum)
4. WIRELESS RECEIVERS: GEM-RECV8, GEM-RECV16, GEM-RECV96
(32 zones maximum)
5. RELAY MODULE: RM3008 (8 relays maximum)
6. VOICE INTERFACE: GEM-EVA 1
7. TELEPHONE INTERFACE: WIZARD IIe
AR ME D
STATU S
Example:
To Next Page
