Napoleon GD80NT - Decorative Brick and Log Placement

33
W415-0695 / C / 03.19.12

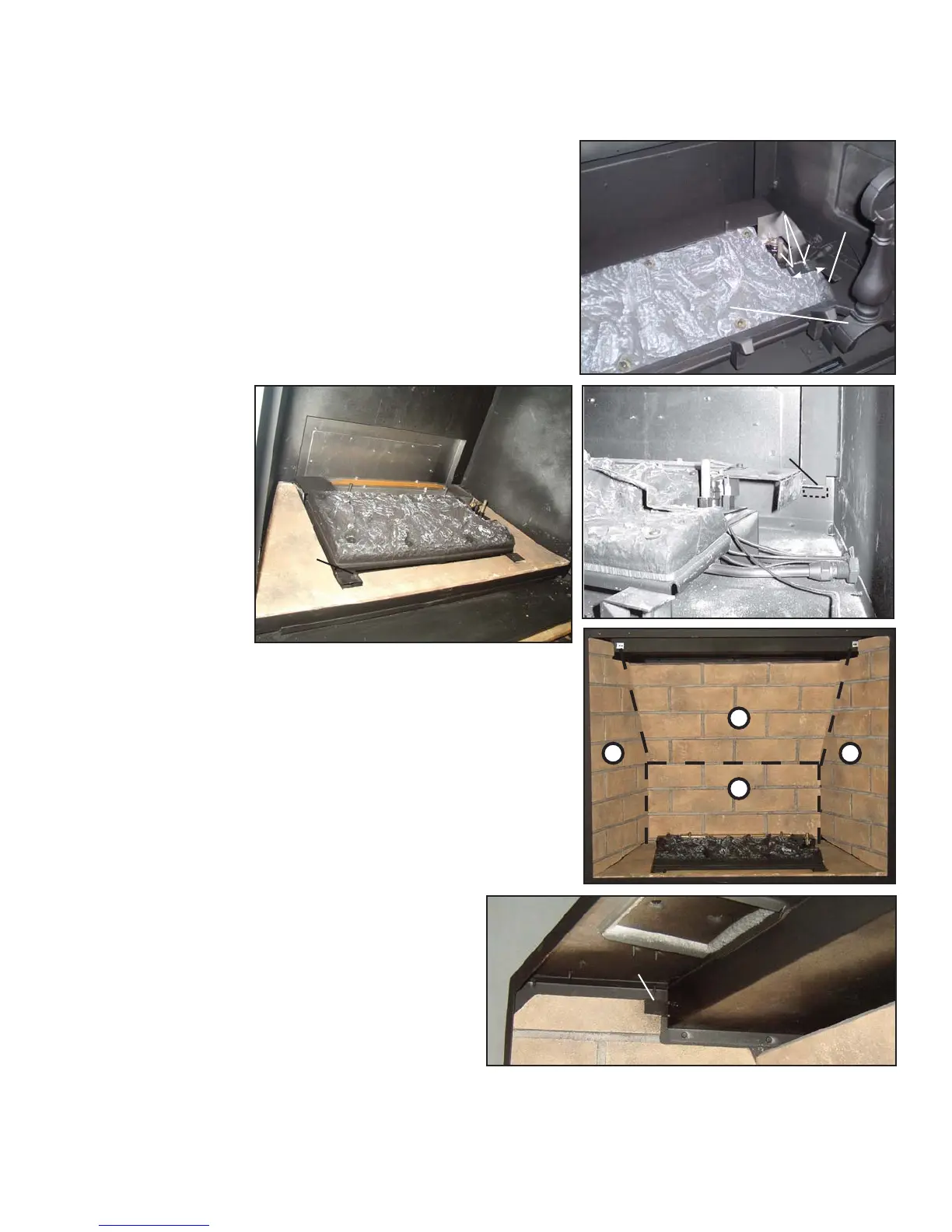

6.3 DECORATIVE BRICK PANEL INSTALLATION
A. Remove the hearth strip / screen assembly and glass door. (Refer to leafl et).
B. Remove the andiron / grate assembly by removing the
2 screws located behind the andirons.
C. Remove the right log bracket, as shown. Note the
position of the securing screw in the bracket.
Install the right, left and centre hearth bricks into the
fi rebox, as illustrated. The hearth should appear seamless
across the front. Ensure that a ¼” space exists between the
hearth bricks and the perimeter of the burner.
D. Ensure that the tabs, located on the back wall of the
fi rebox, have been bent forward horizontally.
E. Install the panels in the following order:
A - RIGHT
B - REAR
C - LEFT
D - BAFFLE
F. Secure the side panel using the retainers
located in the top
left and right corners of
the fi rebox.
G. Replace the components removed in
steps B - C.
H. Remove one end of the hearth assembly
so that the three front concrete hearth
pieces can be inserted, then replace the
end.
NG
NG
LP
LP
LOG
LOG
BRACKET
BRACKET
ANDIRON
ANDIRON
/ GRATE
/ GRATE
MOUNTING
MOUNTING
SCREW (
SCREW (
X
X
2)
2)
SECURING
SECURING
SCREW
SCREW
TAB
TAB
LEFT
LEFT
CENTRE
CENTRE
RIGHT
RIGHT
¼"
¼"
AIR
AIR
SPACE
SPACE
FRONT HEARTH
FRONT HEARTH
A
D
B
C
RETAINER
RETAINER
