Napoleon HD4N - Non-Combustible Facing Material

W415-1146 / A / 02.16.13
30
EN

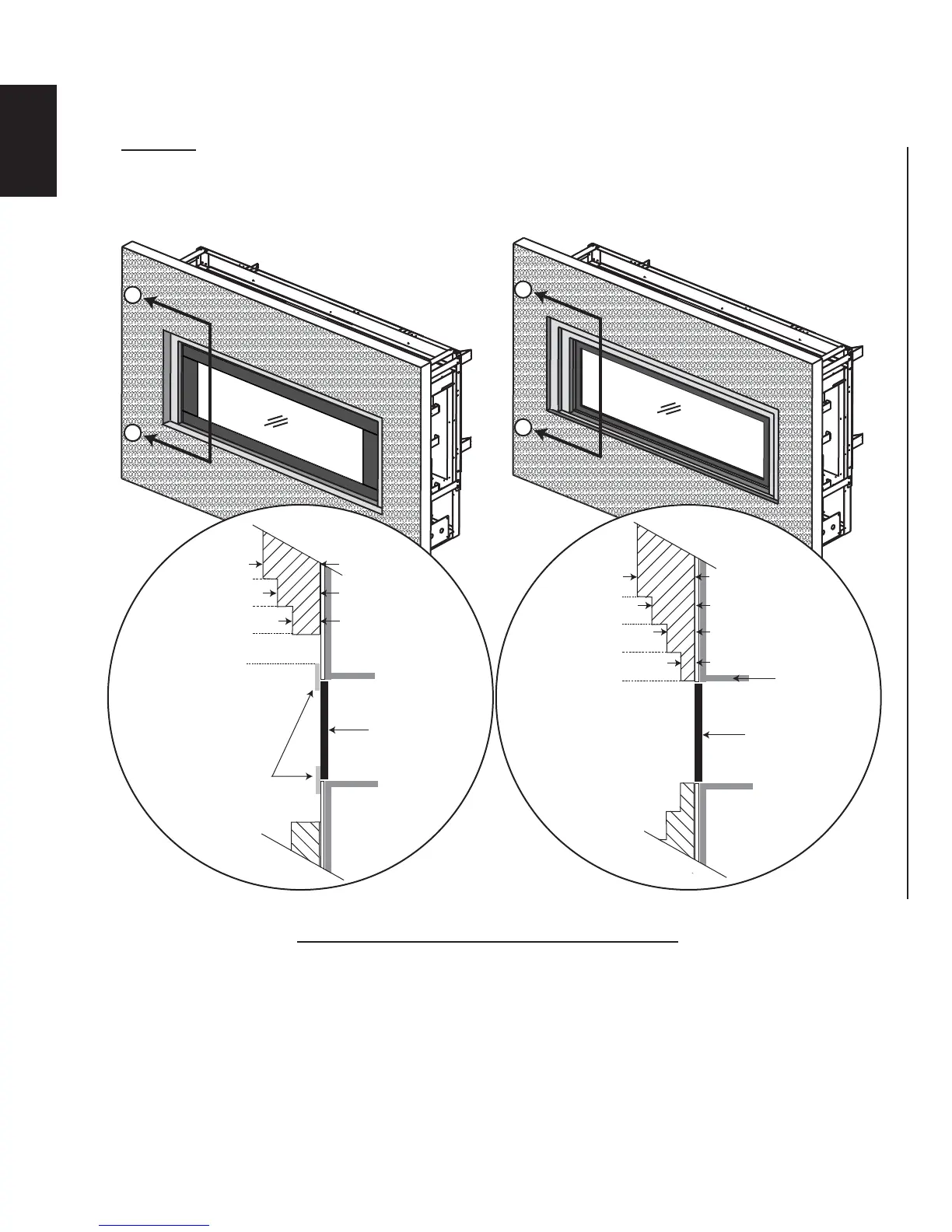

5.4 NON-COMBUSTIBLE FACING MATERIAL
DOOR
1” (25.4mm)
TOP OF
APPLIANCE
2” (50.8mm)
0” (0mm)
3” (76.2mm)
4” (101.6mm)
6” (152.4mm)
2” (50.8mm)
4” (101.6mm)
71.5A
WARNING: Non-combustible facing material must not project more than 1” (24.5mm) from the face of the door
(all four sides). If greater projections are desired, increase the clearance to the sides and top by 2” (50.8mm)
for every additional 1” (25.4mm) of projection. If using an optional surround, then 2” (50.8mm) clearance from
the surround is required before projecting out a maximum 2” (50.8mm). If greater projections are desired,
increase the clearance from the surround by 2” (50.8mm) for every 1” (25.4mm) of additional projection.
DOOR
2” (50.8mm)
OPTIONAL
SURROUND
TOP OF
APPLIANCE
0” (0mm)
4” (101.6mm)
6” (152.4mm)
3” (76.2mm)
2” (50.8mm)
4”
(101.6mm)
B
B
A
A
SECTION A - A SECTION B - B
