W415-1146 / A / 02.16.13
34
EN

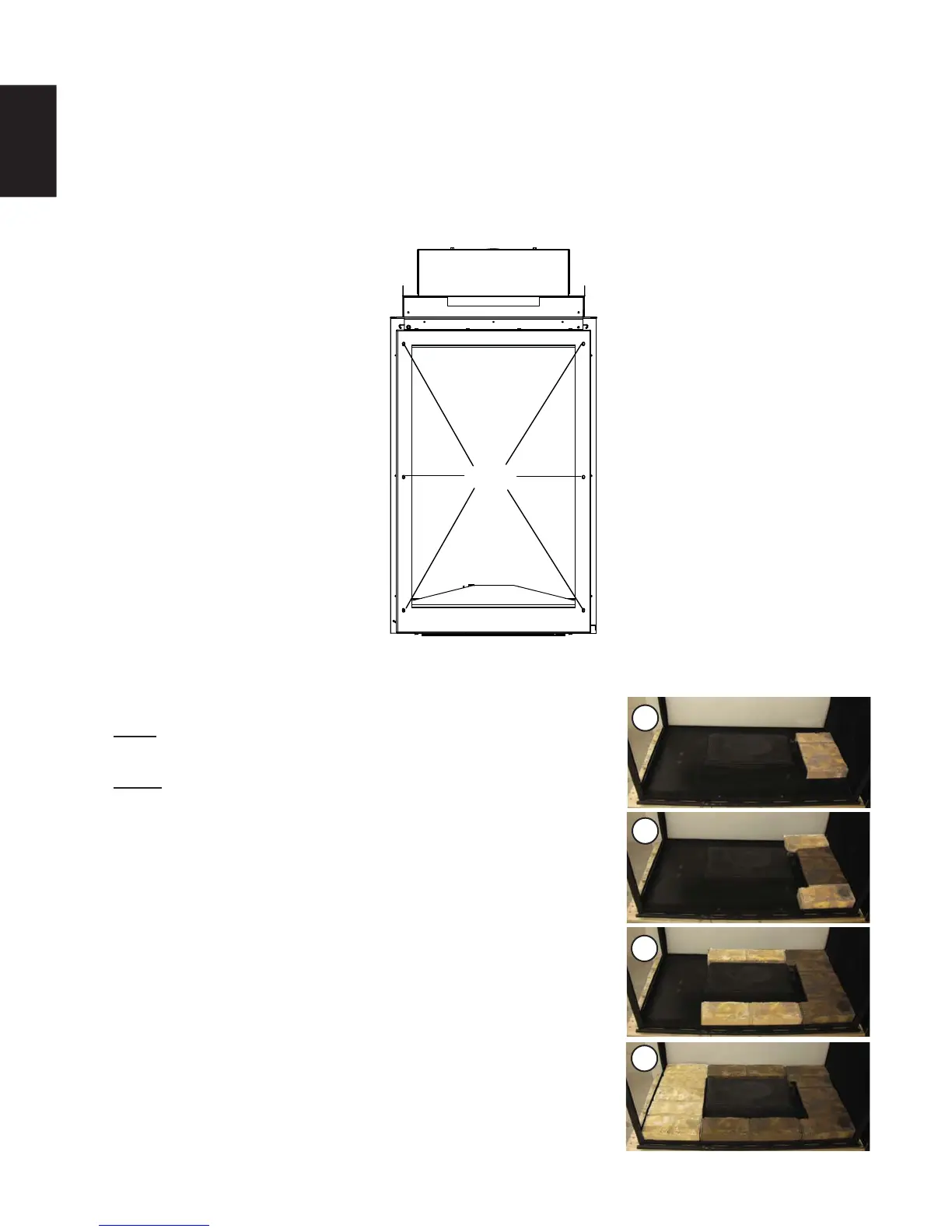

6.2 END DOOR REMOVAL / INSTALLATION
A. Remove the main doors from the appliance, refer to the "DOOR REMOVAL/INSTALLATION" section.
B. Remove the 6 screws securing the end door in place, as shown below. Ensure to keep one hand on
the door, from the inside of the appliance, at all times to prevent it from falling.
C. Tilt the door from the top downwards and carefully remove it from the appliance.
D. To install the end door, reverse these steps.
6 screws
6.3 HEARTH PAD INSTALLATION (HD4ST AND HD4P ONLY)
NOTE: The individual hearth pads can be easily identifi ed by the
numbers cast on the underside of each pad.
NOTE: The pilot is located on the right end in these instructions.
A. Remove the main doors from the appliance, refer to the "DOOR
REMOVAL/INSTALLATION" section.
B. Place the #3 hearth pad on the pilot side of the burner, as shown
in Figure B.
C. Place the #1A hearth pad on the right side and the #1 hearth pad
on the left side of appliance, as shown in Figure C.
D. Place the two #2 hearth pads on the right and left sides, as
shown in Figure D.
E. Place the #4 hearth pad on the left end, as shown in Figure E.
B
C
D
E
