Napoleon LEX Series User Manual

16
EN
www.napoleongrills.com
N415-0434 MAY 28.18
4”

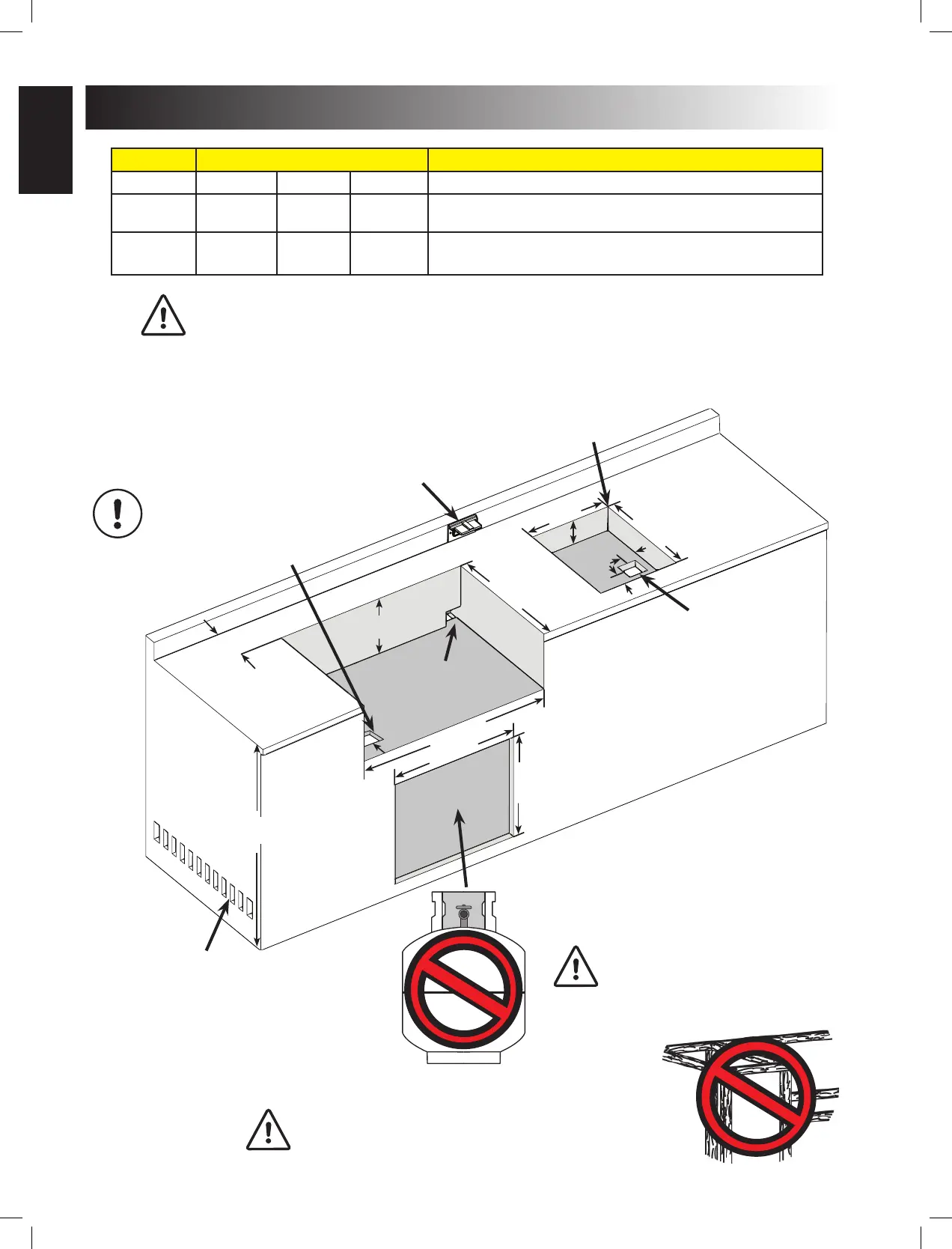

BUILT-IN UNIT OPENING DIMENSIONS
MODEL OPENING DIMENSIONS NOTES
W D H
BILEX485 29 3/4”
756mm
21 3/8”
543mm
7 1/2”
191mm
SIDE
BURNER
12 3/4”
324mm
16 1/2”
419mm
4 1/2”
114mm
OPENING OF AT LEAST 5 SQ (32cm
2
) IN MUST BE PROVIDED FOR
COMBUSTION AIR FOR SIDE BURNER.
MINIMUM 10 SQ IN (65cm
2
)
OF VENTILATION REQUIRED ON
EACH END OF CABINET
W
W
H
H
D
6” (152mm)
GAS INLET OPENING
OUTDOOR GFI ELECTRICAL OUTLET
REC OMMENDED - LOCATE ON SAME SIDE
OF GRILL AS ROTISSERIE BRACKET.
W
H
D
1¾”
(44mm)
1¾”
(44mm)
BUILT-IN SIDEBURNER
GAS INLET OPENING
NON-COMBUSTIBLE MATERIAL
Note: Accessory frames
overlap opening by 1 ¾”
(4cm) on all 4 sides.
WARNING! CABINET FRAME, CABINET AND
COUNTER TOP MUST BE MADE FROM NON-COMBUSTIBLE
MATERIAL.
WARNING! A propane tank can
not be stored below the gas grill.
WARNING! This grill is designed for Non-combusble enclosures only, and must be installed and
serviced by a qualied installer to local codes.
WARNING! Use only non-combusble materials (cered to ASTM E-136) such as steel studs,
cement board, ceramic le, marble, paint etc. When adding nishing materials to the appliance.
Do not use wood or drywall.
34” (864mm)
RECOMMENDED
ELECTRICAL OPENING

Napoleon LEX Series Specifications

General

Main Burners	4
Side Burner	Yes
Infrared Rear Burner	Yes
Material	Stainless Steel
Grill Grates	Stainless Steel
Fuel Type	Natural Gas or Propane
Warranty	Lifetime (limited)
