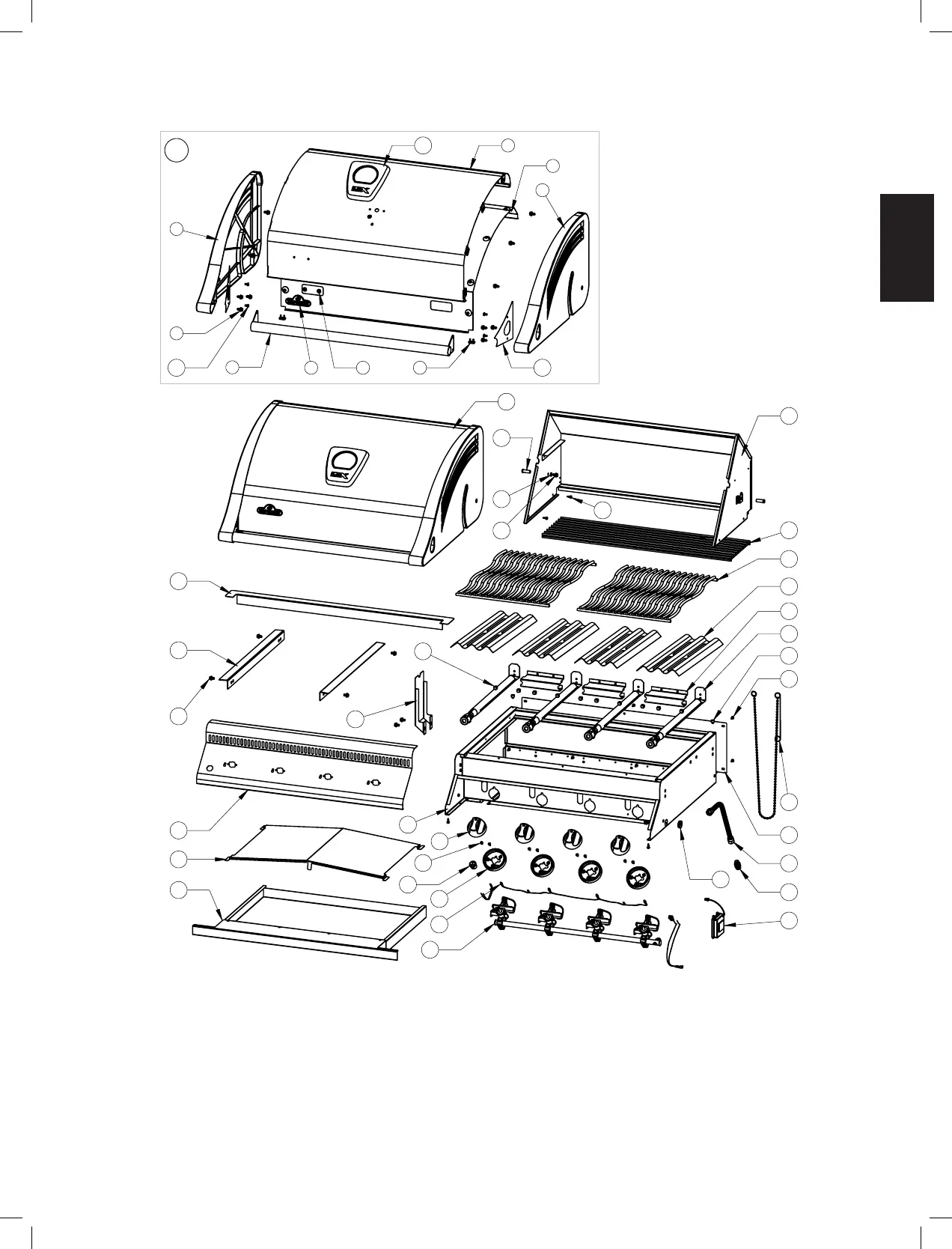

Napoleon LEX Series User Manual

51
FR
www.napoleongrills.com
N415-0434 MAY 28.18
41
40
42
43
28
15
12
37
36
38
23
24
26
16
27
20
39
34
33
31
18
22
14
13
14
21
25
29
30
32
35
19
16
44
17
3
4
1
5
11
6
7 8 9
10
2
44
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 N135-0042 LID CASTING LEFT 1
2
N135-0043 LID CASTING, RIGHT SIDE 1
3
N335-0042L INSERT, LID 1
4
N585-0078 HEATSHIELD LID 1
5
N570-0091 SCREW,1/4-20 X 1/2" SHARP TIP HX WSH 12
6
N325-0077 HANDLE 1
7
N385-0307 NAPOLEON LOGO, MILLED (2015) 1
8
W450-0005 NUT,SPRING 3/16 STUD SIZE 3
9
N510-0013 BUMPER, RECTANGULAR BLK SILICONE 2
10
N080-0287 BRACKET, LID HANDLE 2
11
N570-0042 SCRW,10-24 X 3/8 RND HD PHILIP STN STL 4
12
N570-0015 SCREW, LID PIVOT .303 SS 2
13
N735-0003 WASHER, LOCK 1/4 STN STL 2
14
N570-0073 SCREW, 1/4-20 X 3/8 S/S HEX WASHER HD 8
15
N475-0182 1
16
N570-0008 SCREW, #8 X 1/2" MARUTEX HEX WSHR 14
17
N685-XXXXA BEZEL, TEMP GAUGE - LEX 1
18
CH_MANIF_4BNR_RSIB_CT485 MANIFOLD TUBE 1
19
Z570-0039 SCRW,1/4-20 X1/2 STN STL HEX 10
20
N720-0044 1
21
W445-0031 CONNECTOR 3/8 TUBE TO 3/8 PIPE 1
22
Z570-0038 SCREW, M4 X 8MM PAN HD PHIL ZINC 8
23
N100-0036 4
24
N080-0281 BRACKET, CROSS LIGHT TUBE 3
25
N035-0075 BASE, LEFT SIDE 1
26
N510-0010 BUMPER, LID 2
27
N200-0077 COVER, BASE BACK 1
28
N475-0323 NGZ PANEL, CONTROL 485-4B 1
29
N105-0001 BUSHING, PLASTIC 0.875" HOLE 1
30
N750-0020_LED 6
31
N660-0002 SWITCH, LIGHT 1
32
N190-0001 1
33
N051-0011 BEZEL, CONTROL KNOB 4
34
N380-0021A KNOB, CONTROL 4
35
ROD FOR MATCH ROD ROD FOR MATCH ROD ASSY 1
36
N305-0057 SEARPLATE STN STL 4
37
N305-0058 GRILL COOKING STN WAVE ROD 2
38
N520-0023 RACK, WARMING 1
39
N475-0301 MOUNT, ROTISSERIE 1
40
N525-0043-M06 RAIL, DRIP PAN 1
41
N585-0044 SHIELD, HEAT DRIP PAN 1
42
N715-0084 TRIM, REAR TOP, BUILT IN 1
43
N080-0216 BRACKET, BUILT-IN UNIT MOUNT 2
44
N725-0034_CLAMP 4
45
N725-0034_SCREW 4
46
N455-0017 MUELLER SPUD 4
47
VALVE_MAIN_LAITE VALVE, MAIN BURN #56 PRO 4
48
N255-0016 FITTING, 1/8 MP TO 3/8 MF 1
49
Z385-0112 LABEL, MANIFOLD COLOR CODE BLACK 1
50
AIR_SHUTTER AIR SHUTTER 20GA CRS PLATED 4
51
AIR SHUTTER SCREW
SCREW, SELF-TAPPING #8 x 0.250 PAN HEAD
PHILIPS
4
52
SCREEN INSECT SCREEN 4
53
N035-0076 BASE, RIGHT SIDE 1
54
N035-0121 BASE, BACK 1
55
N035-0122 BASE, FRONT 1
56
n655-0096 STIFFENER, ANGLE BASE FRONT 1
57
N380-0021B INSERT, FLAME 4
58
CONNECTOR-FLAG_FEMALE 2
59
WIRE_1_22AWG_500 4
60
WIRE_2_22AWG_500 4
61
WIRE_3_22AWG_500 2
62
CONNECTOR-2PIN 1
63
WIRE_6_22AWG_500 1
64
WIRE_7_22AWG_500 1
65
WIRE_4_22AWG_LEX 1
66
WIRE_5_22AWG_LEX 1
67
N705-0029 HOOD, LEFT SIDE 1
68
N705-0030 HOOD, RIGHT SIDE 1
69
N080-0204 BRACKET, LID MOUNT 2
70
N080-0203 BRKT, WARMING RACK MNT 2
71
N685-0004_GASKET GASKET, TEMPERATURE GAUGE 1
72
N685-0004_GLASS GLASS, TEMPERATURE GAUGE 1
73
N685-0004_DIALBASE SHEETMETAL BASE, TEMPERATURE GAUGE 1
74
N685-0005_DIAL
DIAL, TEMPERATURE GAUGE WITH NAPOLEON
LOGO
1
75
N685-0005_TEMPPIN PROBE, TEMPERATURE GAUG 1
76
N685-0005_NEEDLE NEEDLE, TEMPERATURE GAUGE 1
77
N685-0003AZH 3/8-16 KNURLED BRASS NUT - CHROME PLATED 1
78
N080-0205 BRACKET, LID HANDLE 2
79
N190-0001_PLATE 2
80
N190-0001_LID 1
81
N710-0080-M05 PAN, DRIP BI485 1
82
N545-0005 RIVET, STN STL .125 X .039-.118 GRIP 4
83
KEY RING MATCH ROD KEY RING MATCH ROD 1
84
CHAIN FOR MATCH ROD CHAIN MATCH ROD 1
