Napoleon.com | Rogue® Series Grills
Maintenance |
17
Main Tube Burner Propane Natural Gas
R365 9/16” (14.3mm) 3/8” (10 mm)
R425 1/2” (13 mm) 3/8” (10 mm)
R525 1/2” (13 mm) 3/8” (10 mm)
RXT365 9/16” (14.3mm) 3/8” (10 mm)
RXT425 1/2” (13 mm) 3/8” (10 mm)
RXT525 1/2” (13 mm) 3/8” (10 mm)
RXT625 1/2” (13 mm) 3/8” (10 mm)
RSE425 1/2” (13 mm) 3/8” (10 mm)
RSE525 1/2” (13 mm) 3/8” (10 mm)
RSE625 1/2” (13 mm) 3/8” (10 mm)

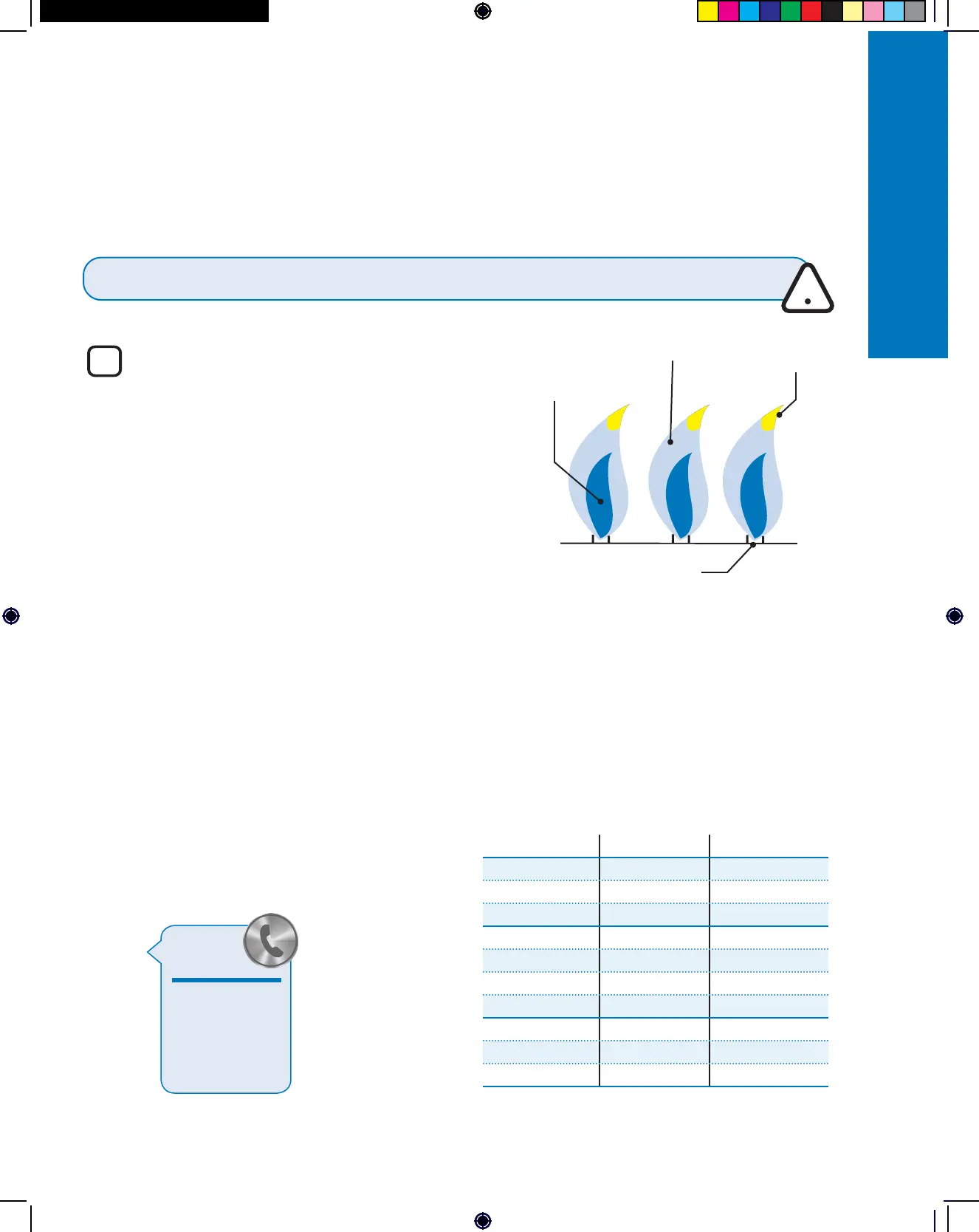

Fig. 1
Burner Port
Yellow Tip
Dark Blue
Light Blue
Maintenance
Maintenance Instructions
WARNING! Keep the grill away from combustible materials, gasoline, and other flammable vapors and liquids.
RECOMMENDATIONS
This grill should be thoroughly inspected and serviced annually by a qualified service person.
• Do not obstruct the flow of ventilation and combustion air.
• Keep the cylinder enclosure ventilation openings located on the side of the cart or enclosure and front and back of the
bottom shelf clear from debris.
COMBUSTION IN AIR ADJUSTMENT
IMPORTANT! This must be done by a qualified gas installer.
• The air shutter is factory set and should not require adjusting
under normal conditions. Adjustments might be required under
extreme field conditions.
• The flames of the air shutter will be dark blue, tipped with light
blue and occasionally yellow when adjusted correctly.
• Too little air flow to the burner will produce soot and lazy yellow
flames.
• Too much air flow to the burner will cause flames to lift erratically
and cause igniting difficulties.
Adjusting the Air Shutter
1. Remove cooking grids and sear plates. Leave lid open.
2. You may have to open the cabinet door or remove the top drawer
(if equipped) to access the air shutter screw located at the mouth
of the burner.
3. Remove the back cover to adjust rear tube burner air shutter.
4. Loosen air shutter lock screw and open or close air shutter as
required. (Fig. 1)
5. Light the burners on high.
6. Visually inspect burner flames.
7. Turn burners off, tighten locking screws, and replace removed
parts when shutters are set correctly.
8. Ensure insect screens are installed.
Note: Infrared burners have no air adjustment.
WE WANT
TO HELP!
Contact the Napoleon
Customer Solutions
Department for
recommended
replacement parts. 1-866-
820-8686.
