National Instruments 5761R User Manual

© National Instruments Corporation 5 NI 5761R User Guide and Specifications
NI 5761 Component-Level Intellectual Property (CLIP)
The LabVIEW FPGA Module includes a feature for HDL IP integration called CLIP. NI FlexRIO
devices support two types of CLIP: user-defined and socketed.
• User-defined CLIP allows users to insert HDL IP into an FPGA target, enabling VHDL code to
communicate directly with an FPGA VI.
• Socketed CLIP provides the same IP integration functionality of the user-defined CLIP, but also
allows the CLIP to communicate directly with circuitry external to the FPGA. Adapter module
socketed CLIP allows your IP to communicate directly with both the FPGA VI and the external
adapter module connector interface.

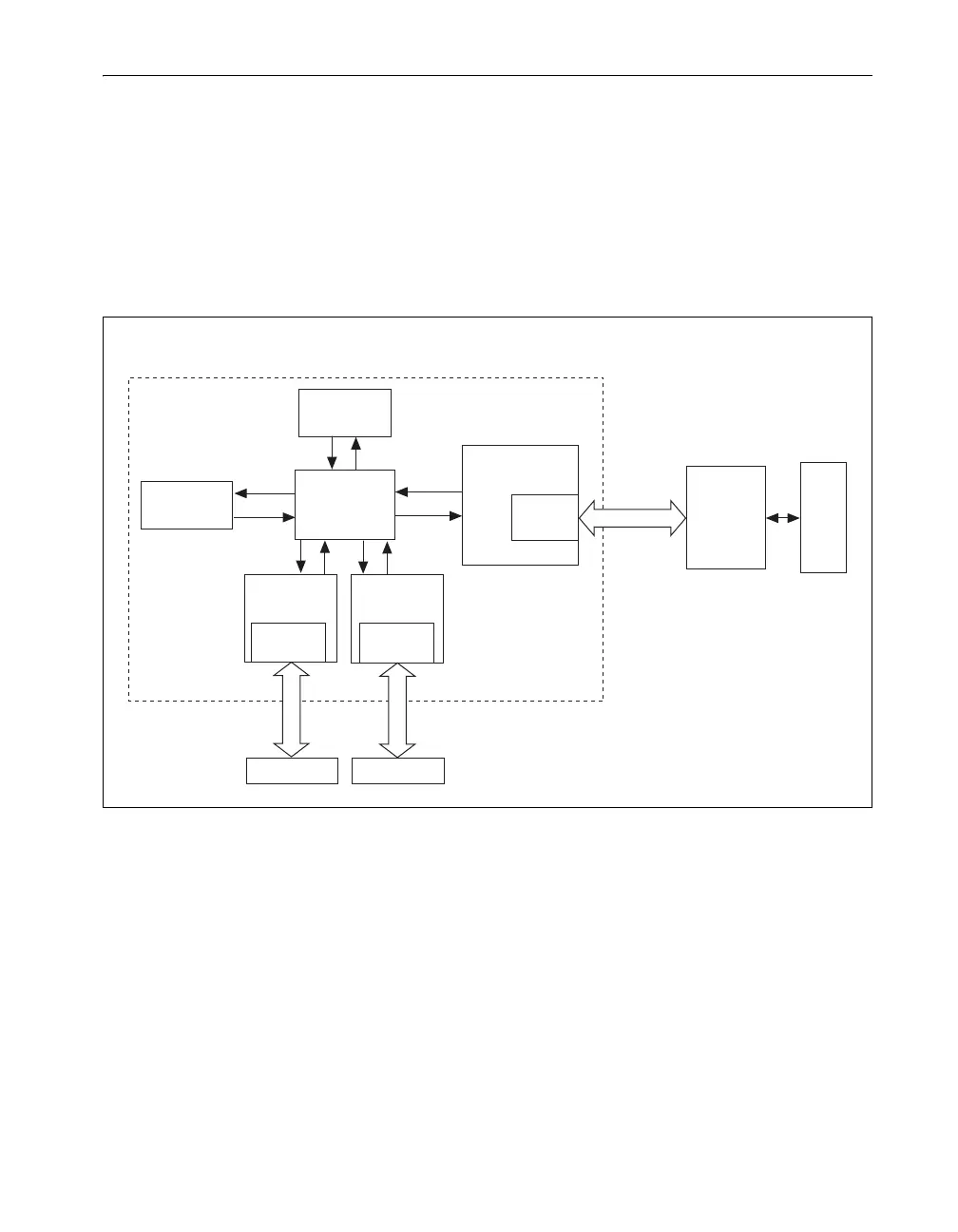

Figure 3 shows the relationship between an FPGA VI and CLIP.
Figure 3. CLIP Relationship
Adapter Module
CLIP Socket
LabVIEW
FPGA VI
User-Defined
CLIP
NI FlexRIO FPGA Module
FPGA
External
I/O Connector
Adapter
Module
Socketed
CLIP
User-Defined
CLIP
Fixed I/O
DRAM 0
CLIP Socket
Socketed
CLIP
DRAM 1
CLIP Socket
Socketed
CLIP
Fixed I/O Fixed I/O
DRAM0 DRAM1

National Instruments 5761R Specifications

General

Brand	National Instruments
Model	5761R
Category	Control Unit
Language	English
