NI Digital Waveform Generator/Analyzer Getting Started Guide | © National Instruments | 17
The NI SHC68-H1X38 cable is a single-ended cable that breaks out each single-ended NI digital
waveform generator/analyzer signal into two 0.1 inch header receptacles, one receptacle each for
the signal and ground. The NI SHC68-H1X38 cable provides an easy way to connect
NI single-ended high-speed digital waveform generator/analyzer devices to various types of
devices and circuits for interfacing, testing, or analysis.
This cable offers connectivity similar to that found on a typical logic analyzer, so you can use it
in logic analyzer-type applications. Unlike a typical logic analyzer, however, this cable also
allows for simultaneous pattern generation and acquisition so that you can use it in
stimulus/response applications as well. The following figure shows the parts locator diagram for
the single-ended digital flying lead cable.

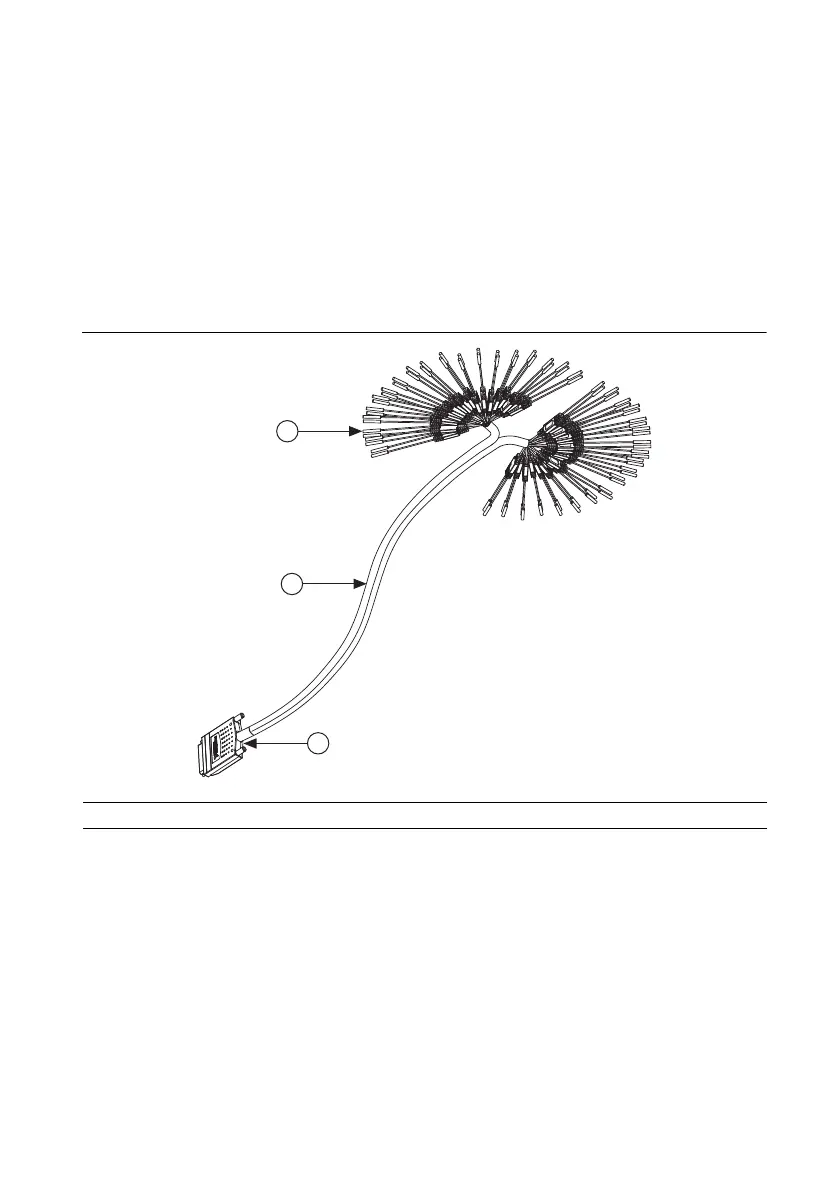

Figure 9. Single-Ended Flying Lead Cable Parts Locator Diagram
1 Lead Pairs 2 Removable Sleeving 3 68-Pin VHDCI Connector
