18 | ni.com | NI Digital Waveform Generator/Analyzer Getting Started Guide
Differential Accessories
The NI SMA-2164 test fixture is a breakout box for National Instruments differential digital
waveform generator/analyzer modules (NI 656x). This fixture provides an easy way to connect
to other devices for testing and debugging. For more information about using the NI SMA-2164,
refer to the NI SMA-2164 User Guide.

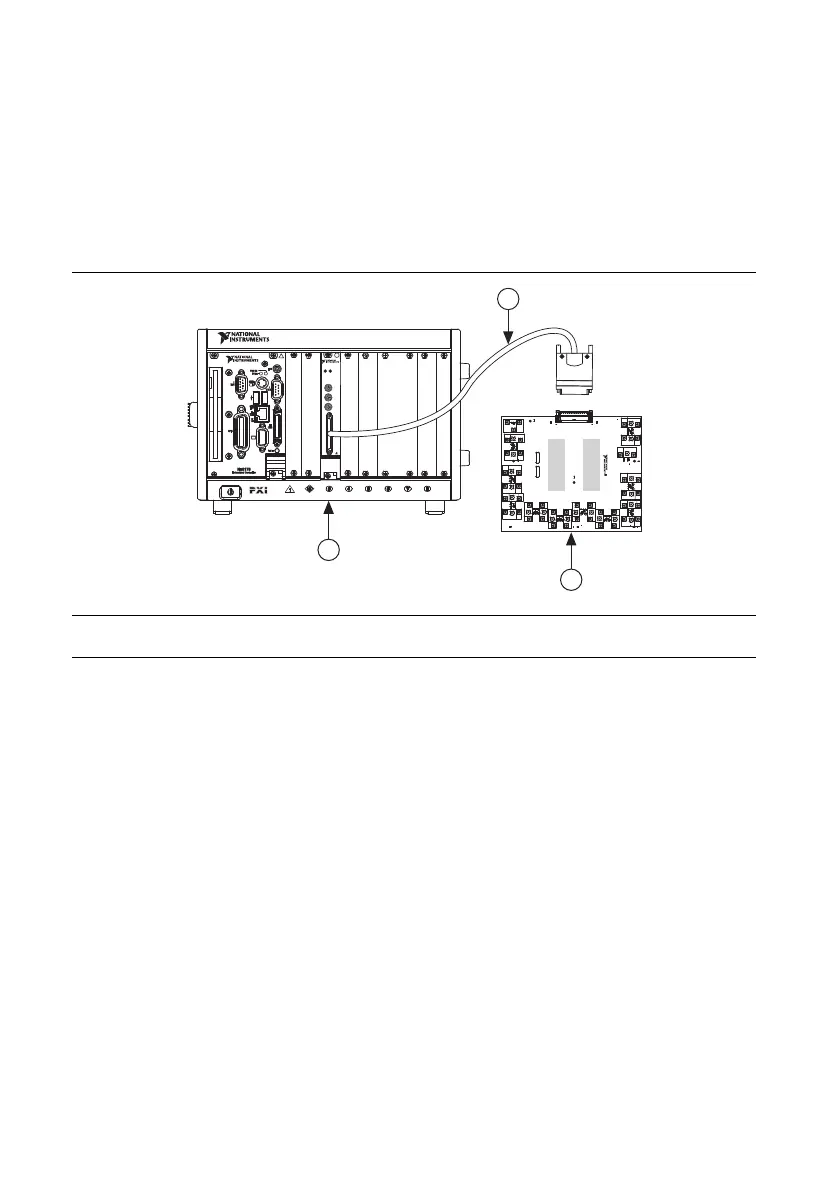

Figure 10 shows how to connect a differential NI digital waveform generator/analyzer to the
NI SMA-2164, using the NI SHB12X-B12X cable.
Figure 10. Connecting the NI SMA-2164 Accessory
1 NI Digital Waveform Generator/Analyzer,
installed in a PXI chassis
2 NI SHB12-B12X Cable
3 NI SMA-2164
NI PXI-6551
50 MHz Digital I/O
DIGITAL DATA & CONTROL
PFI 0
ACCESS ACTIVE
CLK
IN
CLK
OUT
NI PXI-1042
1
2
3
STROBE
CLK_ L VPECL
+
+
IO_3
+
–
IO_7
IO_10
IO_14
IO_6
IO_11
IO_13
MADE I N U.S. A.
IO_15
ASSY192 53 3A- 0 1
+ –
+
–
+
+
+
–
–
+
–
–
–
–
IO_12
–
–
+
+
–
+
IO_4
IO_5
IO_8
IO_2
IO_9
–
+
–
+
+
–
IO_1
+
–
–
+
+
PFI _3
CLK_ L VDS
+
PFI _2
+
–
+ –
PFI _1
VOS
VOS
VOS
VOS
VOS
VOS
VOS
VOS
VOS
VOS
VOS
IO_0
VOS
VOS
–
+
S/N
–
VOS
VOS
–
VOS
VOS
VOS
VOS
VOS
VOS
61 70
40 49 19 31 10
73
64 67
52 55
58
43 46 34 37 22 25 28 13 16
1
4 7
1
VOS
NI SMA-2164
DIFFERENTIAL
DIGITAL I/O ACCESSORY
FOR PATENTS: NI.COM/PATENTS
©COPYRIGHT 2005
