© National Instruments Corporation 9 NI USB-6008/6009 User Guide and Specifications
Cables and Accessories
Table 4 contains information about cables and accessories available for the NI USB-6008/6009. For a
complete list of accessories and ordering information, refer to the pricing section of the NI USB-6008
or NI USB-6009 product page at
ni.com.
Pinout and Signal Descriptions
Figure 6 shows the pinout of the NI USB-6008/6009. Analog input signal names are listed as
single-ended analog input name, AI x, and then differential analog input name, (AI x+/–). Refer to
Table 5 for a detailed description of each signal.

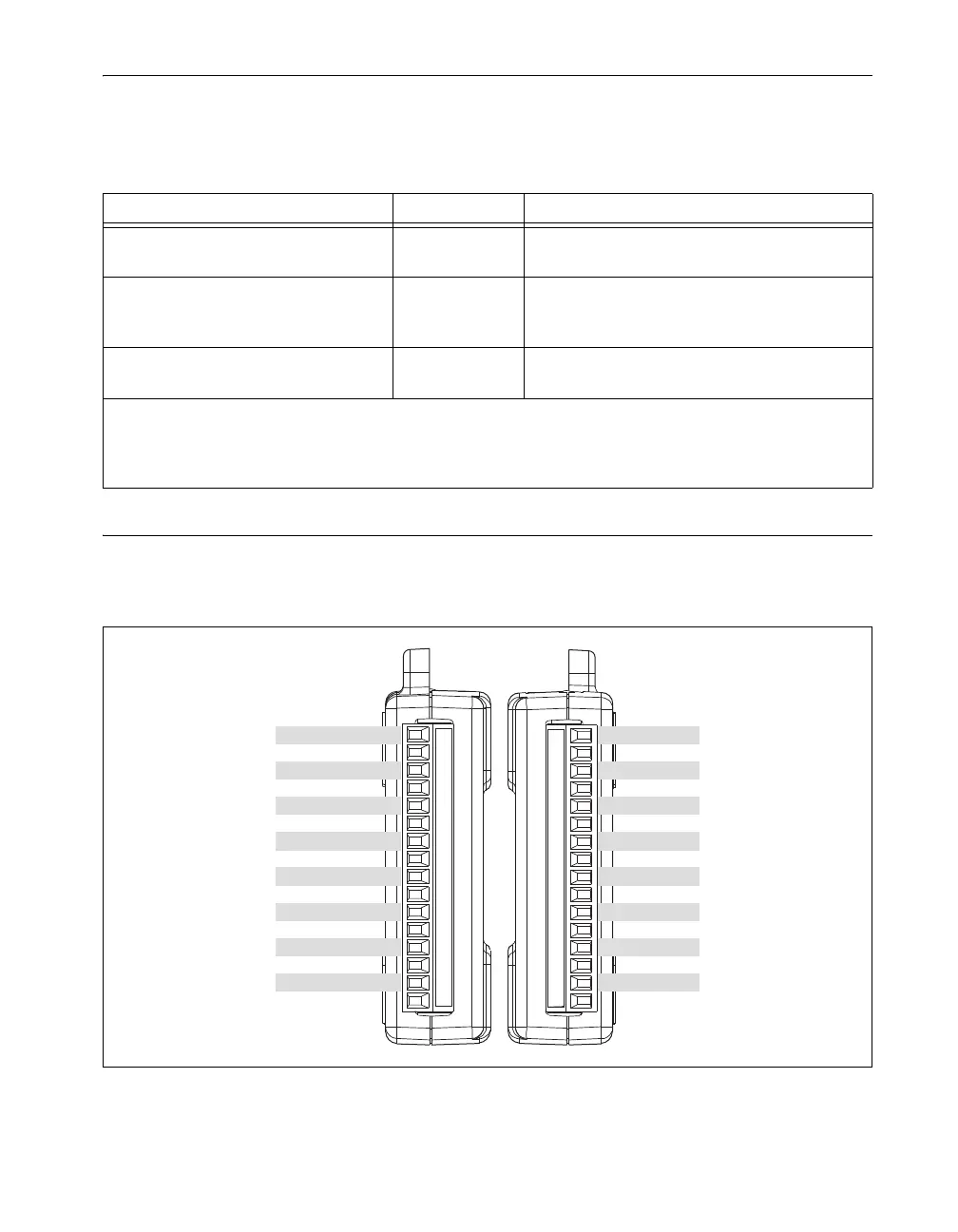

Figure 6. NI USB-6008/6009 Pinout
Table 4. NI USB-6008/6009 Cables and Accessories
Accessory Part Number Description
USB-6008/6009 Accessory Kit 779371-01 Four additional screw-terminal connectors,
connector labels, and a screwdriver
USB-6000 Series Prototyping Accessory 779511-01 Unshielded breadboarding accessory for
custom-defined signal conditioning and prototyping.
You can use up to two accessories per device.
Hi-Speed USB Cable 184125-01
184125-02
1 m and 2 m lengths
Caution: For compliance with Electromagnetic Compatibility (EMC) requirements, this product must be operated with
shielded cables and accessories. If unshielded cables or accessories are used, the EMC specifications are no longer
guaranteed unless all unshielded cables and/or accessories are installed in a shielded enclosure with properly designed and
shielded input/output ports.
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
GND
AI 0 (AI 0+)
AI 4 (AI 0–)
GND
AI 1 (AI 1+)
AI 5 (AI 1–)
GND
AI 2 (AI 2+)
AI 6 (AI 2–)
GND
AI 3 (AI 3+)
AI 7 (AI 3–)
GND
AO 0
AO 1
GND
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P1.0
P1.1
P1.2
P1.3
PFI 0
+2.5 V
+5 V
GND
