National Instruments RMC-8356 Installation Guide

6 | ni.com | RMC-8356 Installation Guide
• COM Port—Front-access COM (Serial) port.
• Control Panel—Front control panel with LEDs and buttons.
• Rack Ear Brackets—Attaches server chassis to the rack.

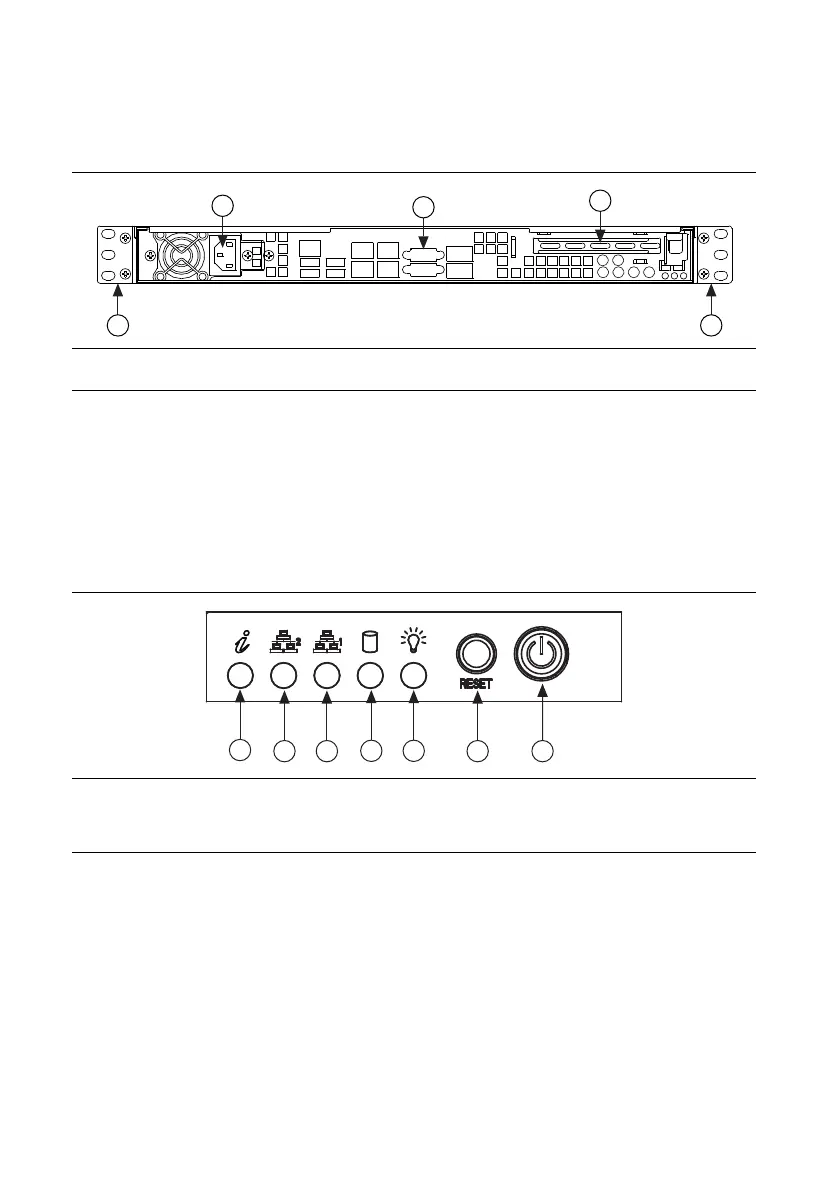

Figure 2. Rear View of the RMC-8356
The rear of the chassis includes the following features:
• Power Supply—350 W Platinum Level Power Supply.
• I/O Back Panel—Rear I/O ports.
• Expansion Card Slot—Slot for one expansion card (requires pre-installed riser card).
• Rack Ear Brackets—Attaches server chassis to the rack.
Figure 3. Control Panel Features
The control panel includes the following LEDs:
• Overheat/Fan Fail LED—Flash indicates a fan failure. Solid indicates overheat condition.
• NIC2 LED—Flash when there is activity on LAN port 2.
• NIC1 LED—Flash when there is activity on LAN port 1.
• HDD LED—Flash when there is hard drive activity.
• Power LED—Solid when system is operating.
1 Power Supply
2 I/O Back Panel
3 Expansion Card Slot
4 Rack Ear Brackets
1 Overheat/Fan Fail LED
2 NIC2 LED
3 NIC1 LED
4 HDD LED
5 Power LED
6 Reset Button
7 Power Button
1
2
3
4 4
1
2 3
4 5
6 7
