National Instruments VirtualBench Calibration Procedure

66 | ni.com | NI VirtualBench Calibration Procedure

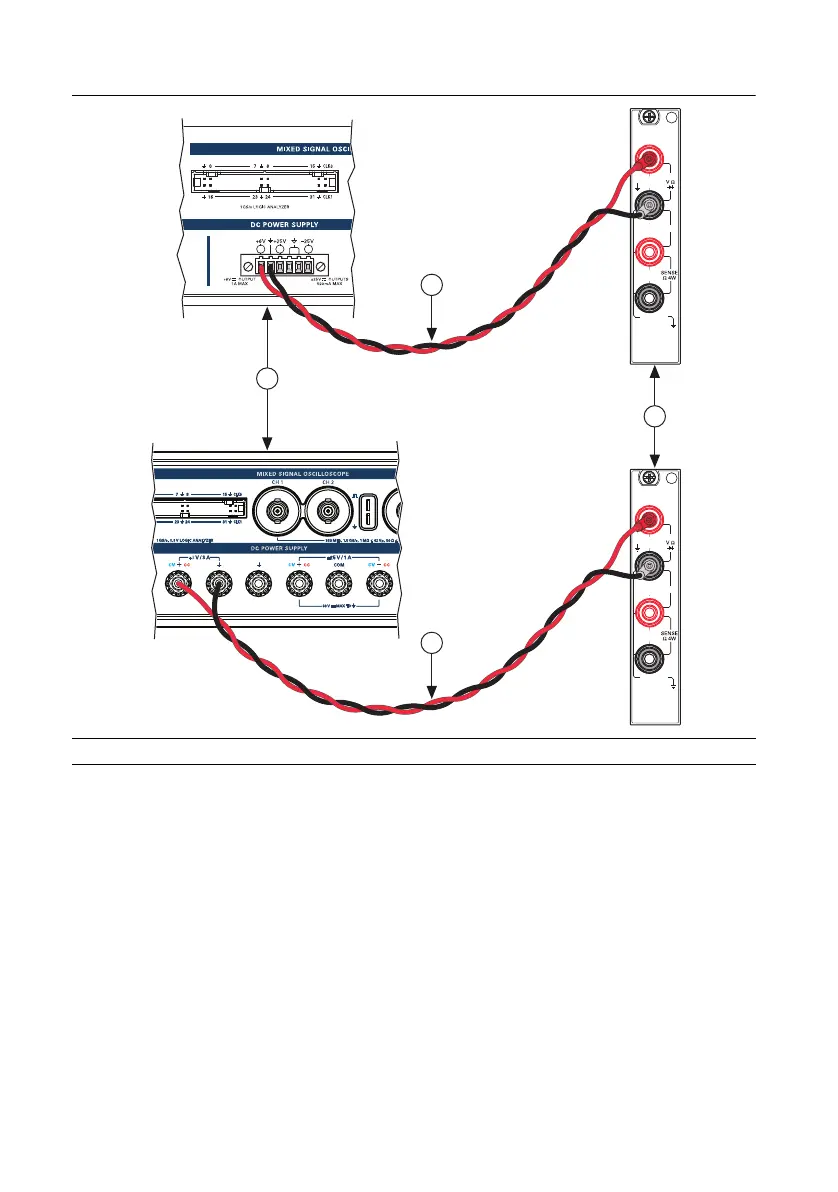

Figure 35. Cable Connections For +6 V Voltage Programming and
Measurement Accuracy Adjustment
4. Call PS Get Adjustment Points with the following parameter:
• Channel =
ps/+6V
This will return an array:
• Adjustment Points—An array of voltage points used in the adjustment steps
5. Call
PS Set Adjustment Point with the following parameters:
• Channel =
ps/+6V
• Adjustment Point—Supplied from the output of PS Get Adjustment Points
6. Wait at least 150 milliseconds for the DC power supply to settle.
7. Measure the output voltage with the DMM.
1 VirtualBench DC Power Supply 2DMM 3 Cabling Wire
HI
LO
300V
MAX
AMPS
500V MAX
HI
LO
1kV
MAX
3A, 250V
MAX
INPUT
MAX
1kV
1
3
3
HI
LO
300V
MAX
AMPS
500V MAX
HI
LO
1kV
MAX
3A, 250V
MAX
INPUT
MAX
1kV
2
