Viewing instrument panels

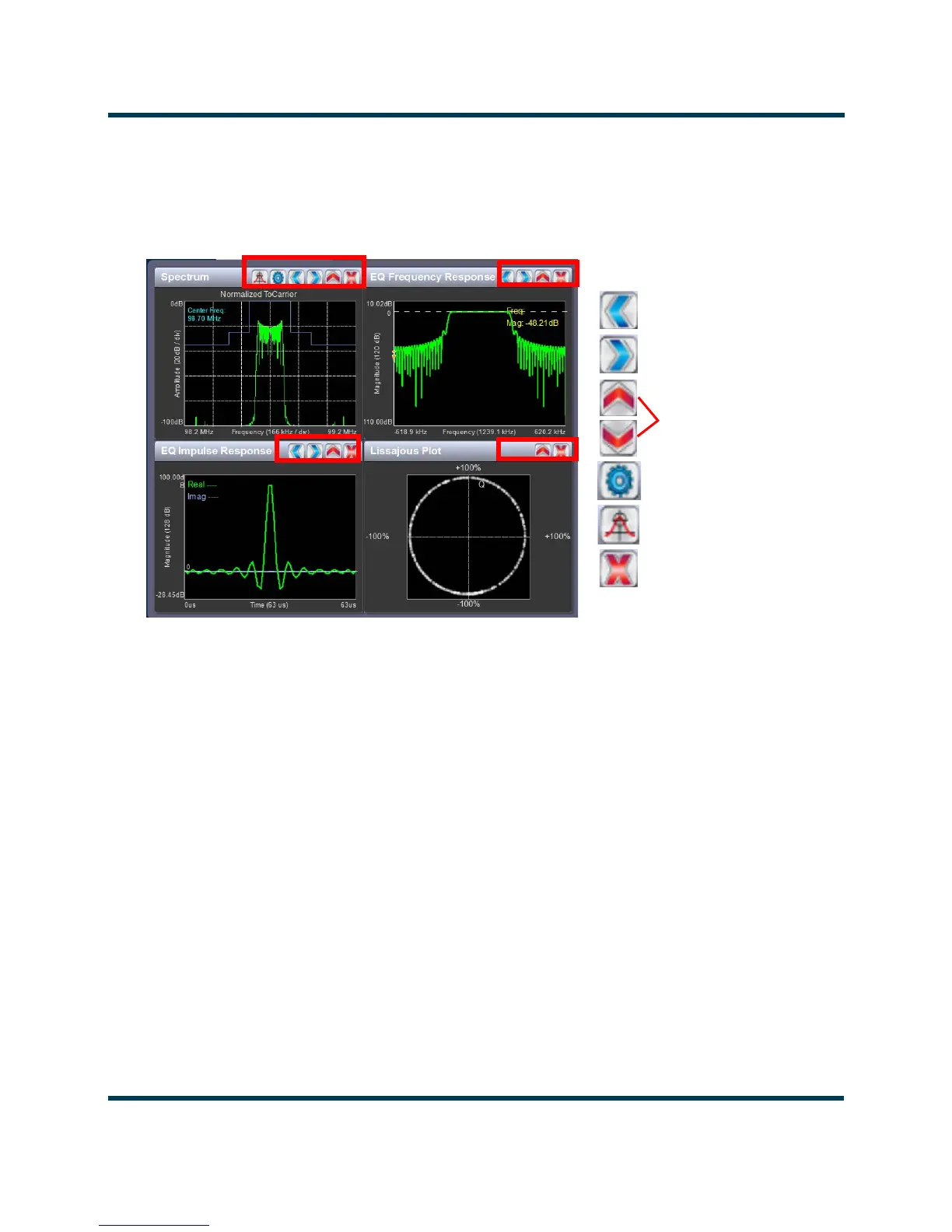

Each instrument panel has a menu bar that may be different from other panels (see Figure 2.16).
Figure 2.16: Instrument Panel Menus
Instrument panel procedures
Procedure to view instrument readings on the panel:
• To display a cursor in the panel, touch the screen where you want the cursor (see Figure 2.17
on page 2-28). The cursor position is noted in the upper, right-hand corner of the panel (e.g.,
frequency and amplitude for the spectrum analyzer). Touch in other areas of the instrument
to provide a coarse adjustment of the cursor position.
• To make fine adjustments, use the backward and forward buttons (see Figure 2.16).
Each panel has a tool bar at the top of the display
Backward one step
Forward one step
Maximize / Minimize
Cog (more settings)
Exit
Peak (jumps cursor to
the next peak)
To Next Page
