NV30/NV40 Operations and Maintenance Manual Operating the transmitter
Issue 3.3 2014-12-10 Page 2-33

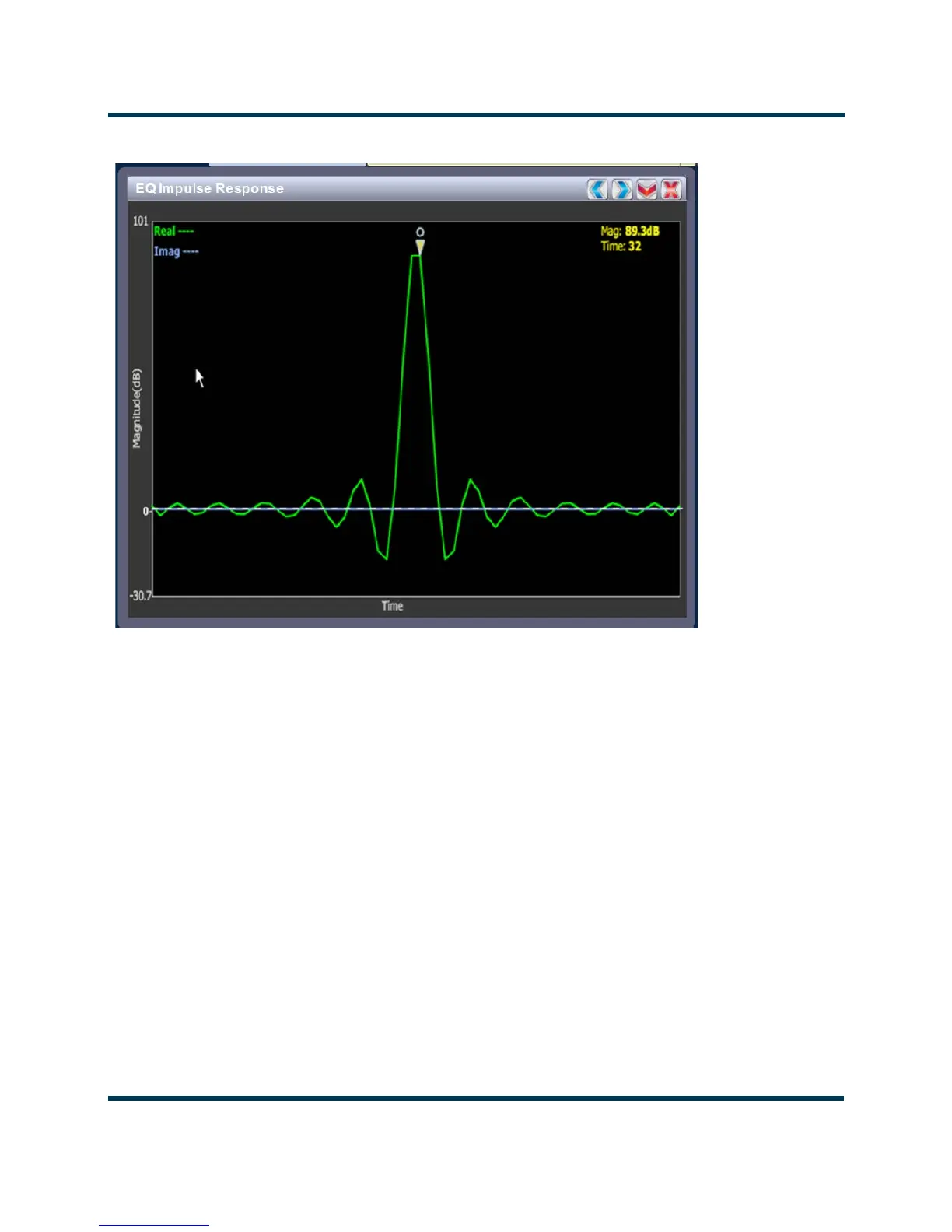

Figure 2.23: EQ Impulse Response
EQ impulse response
See Figure 2.23. This panel displays the impulse response of the modulator’s EQ filter in the time
domain. This is a static display tool so the screen image is not fluid and will not change.
Touch on the panel to display a cursor in the approximate area. The cursor position (magnitude and
time) is noted in the upper, right-hand corner of the panel. Touch in other areas of this instrument
panel to provide a coarse adjustment of the cursor position.
Use the left and right buttons as fine adjustments.
Use the maximize or minimize buttons as required.
