NV30/NV40 Operations and Maintenance Manual Operating the transmitter
Page 2-42 Issue 3.3 2014-12-10
Identifying meter information on a specific sub-device
1. Open the Meters List View window and select one of the desired transmitter sub-devices.
– Controller
– Exciter A
– Exciter B
– RF Modules - Multiple modules supported
2. Under Transmitter Layout, press the information button (i) beside a device type. This will open
an information window in tabular format (see Figure 2.32).
3. To choose individual meters for display in the Meters window of the Home page: Select the
device type name in the Transmitter Layout panel and select the checkbox next to the desired
meters shown in the Relevant Meters panel (see Figure 2.31 on page 2-41). If the Relevant
Meters
panel contains more than one page of information, use the scroll bar (right-side) to find
the desired meter.

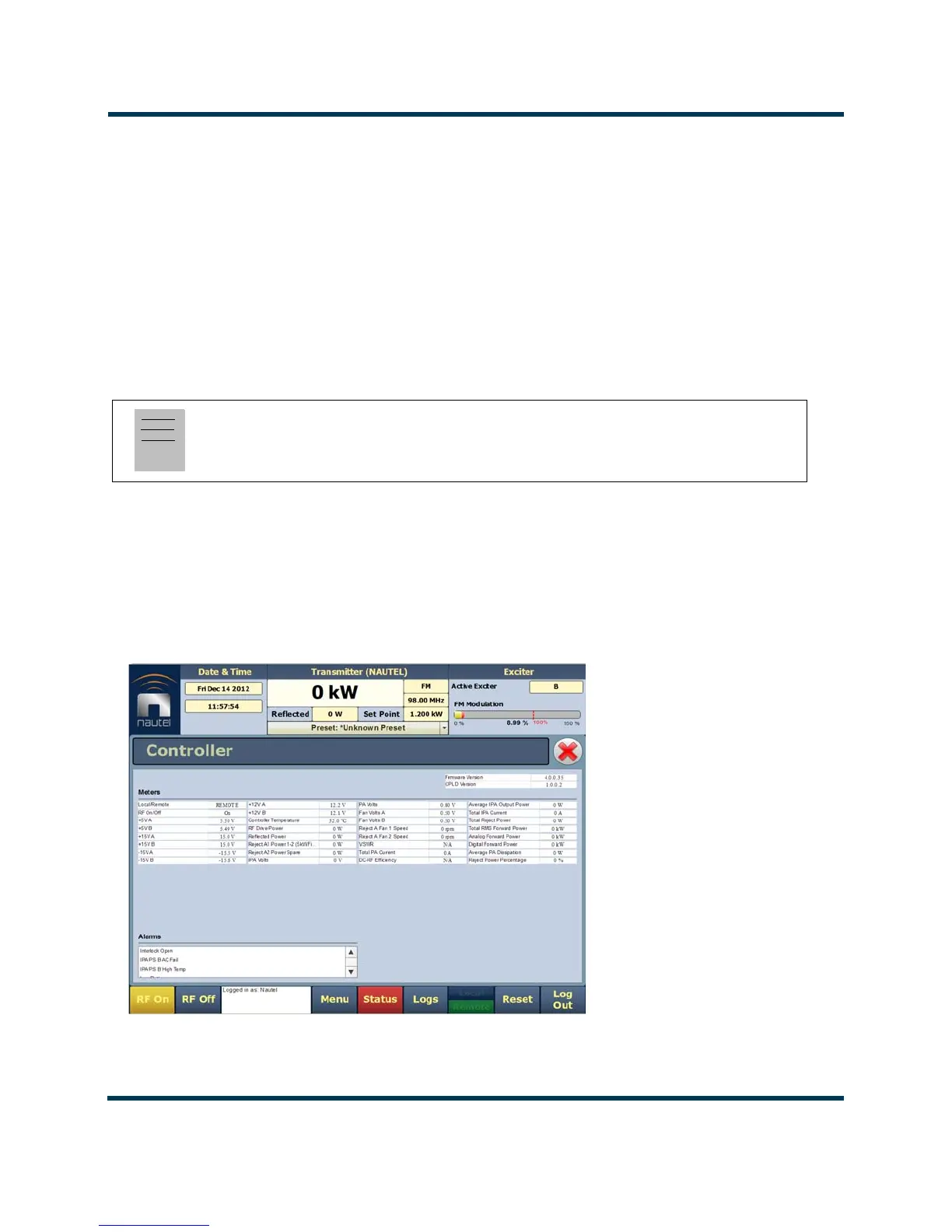

Figure 2.32: Meters - Information (Device type Controller shown)
Note:
When a meter value is updated, a blue box briefly appears around that value. Typically, updates
occur every one or two seconds.
