• A parameter value in the yellow section (as applicable) of a meter bar indicates the
parameter is still within an operational range, but is approaching design limitations.
• A parameter value in the red section of a meter bar indicates the parameter is outside
normal operating conditions.
Accessing meter information
Procedures for accessing and editing information in the Meters section of the AUI screen:
• To delete a meter from the Home page, press X in the Meters window (Figure 2.31).
• To review all the meter options, press the meter list view shortcut
button (magnifying
glass) at the top of the meters panel (see Figure 2.31). This will open the
Meter List View
window.
•On the Meter List View screen users can see all relevant meters of a sub-device. Select
the sub-device in question under the Transmitter Layout column and the Relevant
Meters
column will be populated. The desired Meters can now be selected.

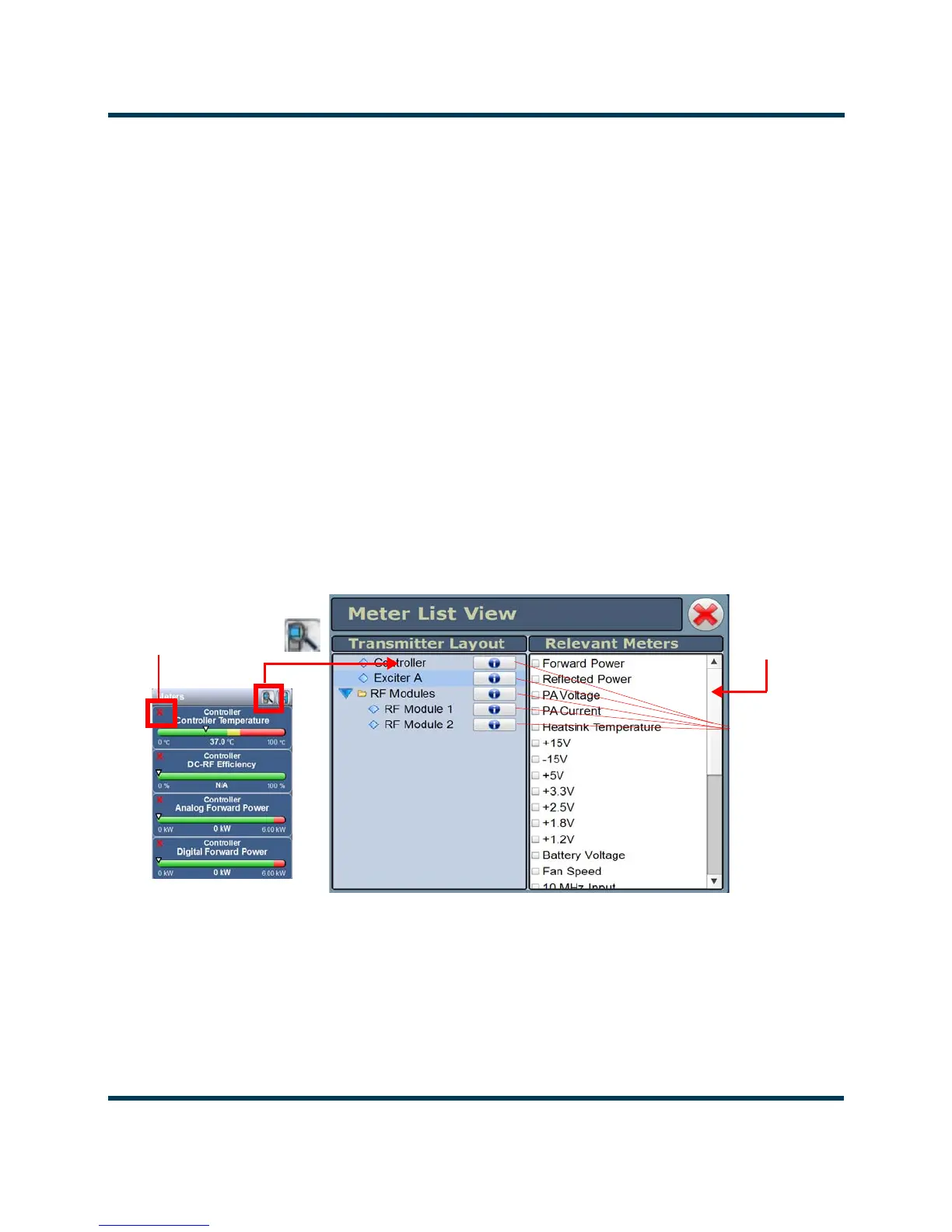

Figure 2.31: Meters List View Window (Exciter A shown)
Information
X
to close/delete
Buttons
(displays full
set of meters
for specific
sub-device)
Scroll Bar
To Next Page
