NV30/NV40 Operations and Maintenance Manual Operating the transmitter
Issue 3.3 2014-12-10 Page 2-59
Viewing transmitter status
You can view the NV30/NV40’s operational status using the Transmitter Status page - see
Figure 2.40. This page shows current active alarms and status to aid in fault diagnosis. To view the
Transmitter Status page, select
Status from the AUI bottom banner.
This section includes the following topics:
• Viewing alarm details on page 2-60
• Status button colour indications on page 2-60
• Resetting alarms on page 2-60

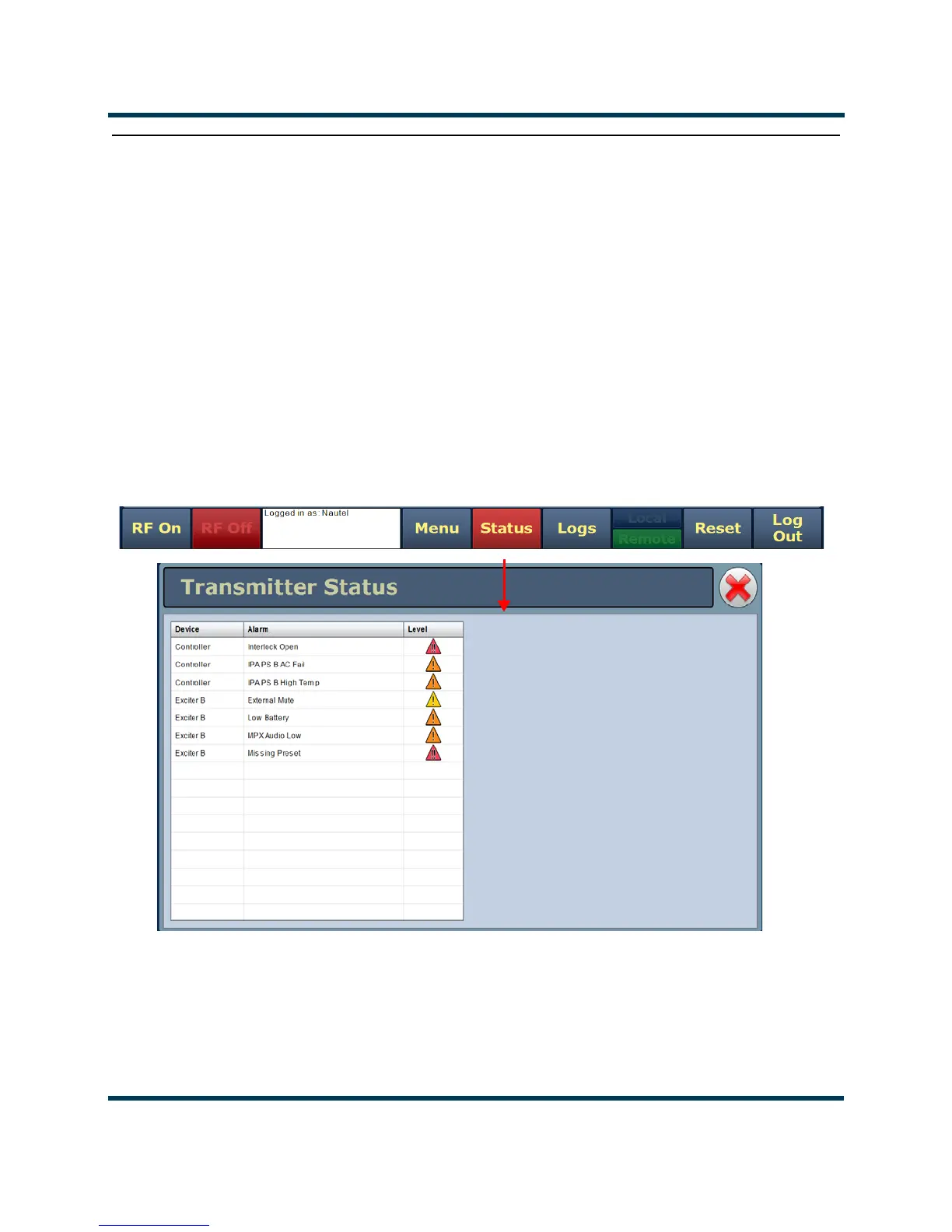

Figure 2.40: Transmitter Status page
