System configuration
This factory setting (see Figure 2.43) configures the type of system the transmitter will be part of, sets
the
ALC Limit (in %), and sets the cooling Fan Voltage.
•System Type
– Standalone: indicates the transmitter operates by itself.
– SC1 Combined: indicates the transmitter operates as part of a combined
system and is controlled by the SC1 system controller.
– N+1: Indicates the transmitter operates as part of a main/standby or +1
backup for N other transmitters, and is under the control of the SC1
system controller.
•ALC Limit Allowable range is 0-135%, with a typical value of 100%. ALC limit allows
the transmitter to compensate for any power shortfall by setting DAC
limit at a higher percentage than should be required.
• Fan Voltage
Allowable range is 30-53V, with a the typical value of 48V.

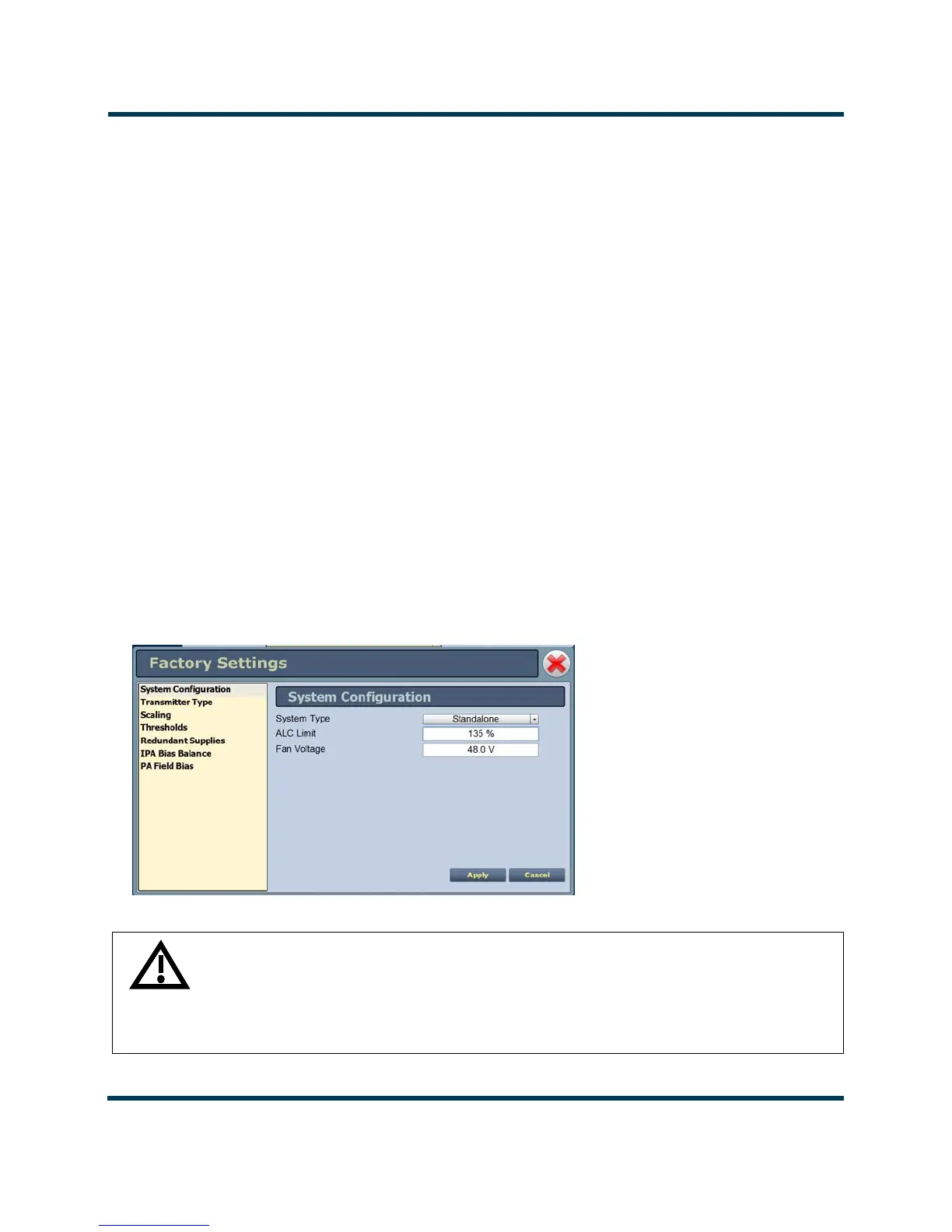

Figure 2.43: Factory Settings - System Configuration
WARNING: Device settings are established at the factory and should not
require any adjustment. These settings affect critical system protection
circuits. Making changes to these settings may void your warranty.
Contact Nautel before making changes.
