NV30/NV40 Operations and Maintenance Manual Operating the transmitter
Page 2-64 Issue 3.3 2014-12-10
Scaling
This factory setting (see Figure 2.45) supports the calibration of various metered parameters.

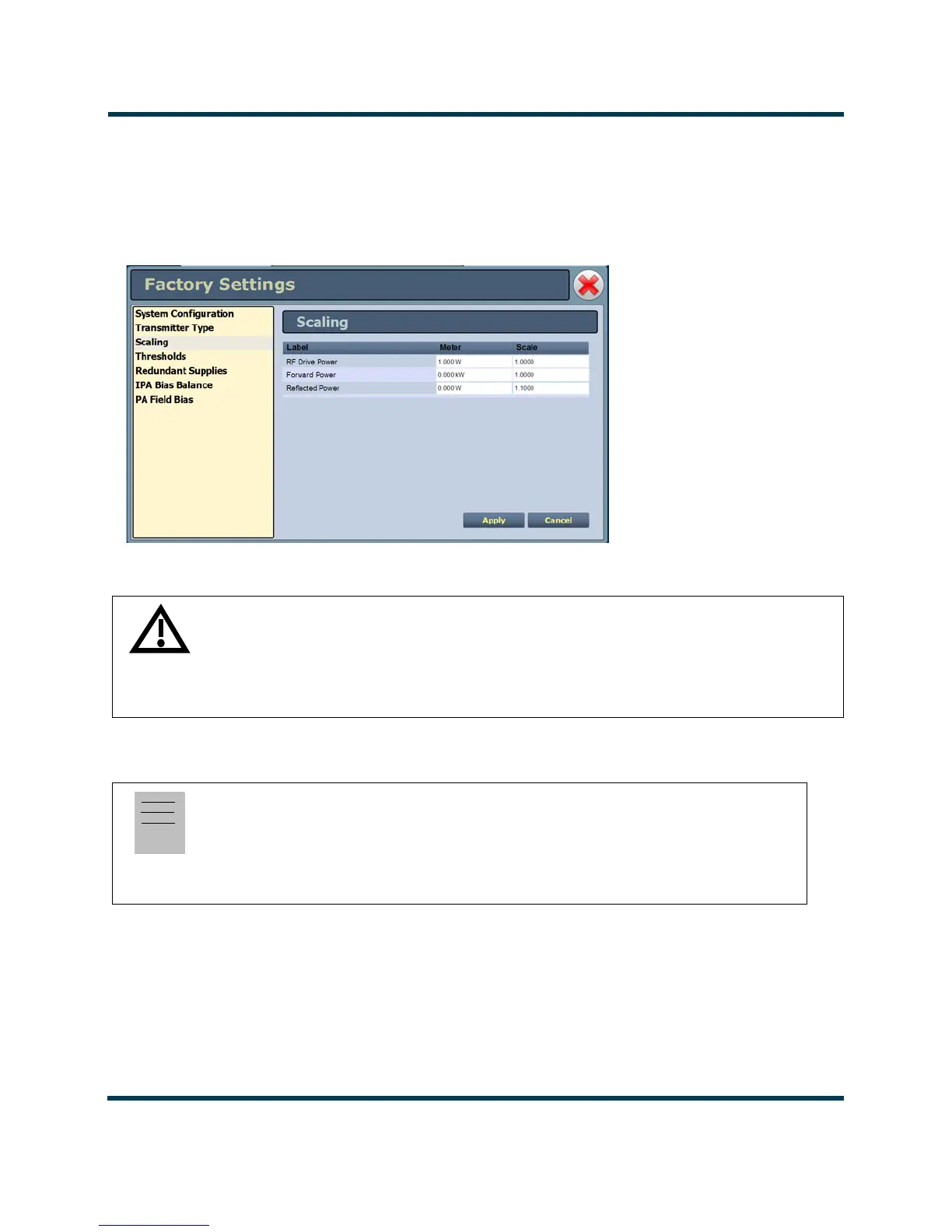

Figure 2.45: Factory Settings - Scaling
WARNING: Device settings are established at the factory and should not
require any adjustment. These settings affect critical system protection
circuits. Making changes to these settings may void your warranty.
Contact Nautel before making changes.
Note:
FM and FM+HD modes display analog tranmitter power output in the top banner of the AUI.
HD and DRM+ modes display total digital RMS power. For FM+HD if the total RMS
power is desired, see applicable meters in controller device list. See Identifying meter information on
a specific sub-device on page 2-42.
