Page 19 of 32
B2 Product Manual 2_0
8 Appendix
8.1 APPENDIX A ā€“ Block Diagram

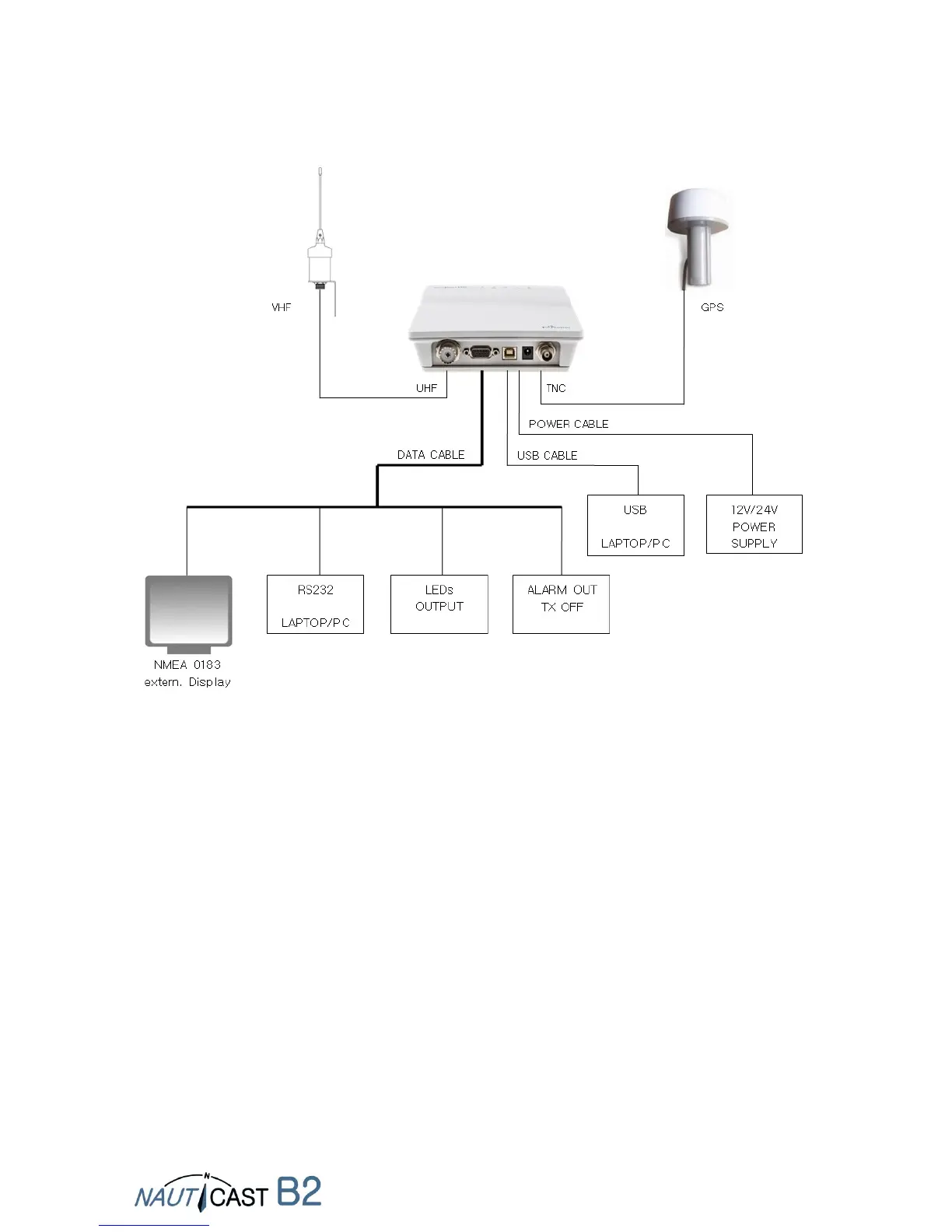

System Block Diagram
(Note: Mount your unit with cable/connector side down)
Power supply, PC, NMEA compatible devices not included
Data Cable optional
