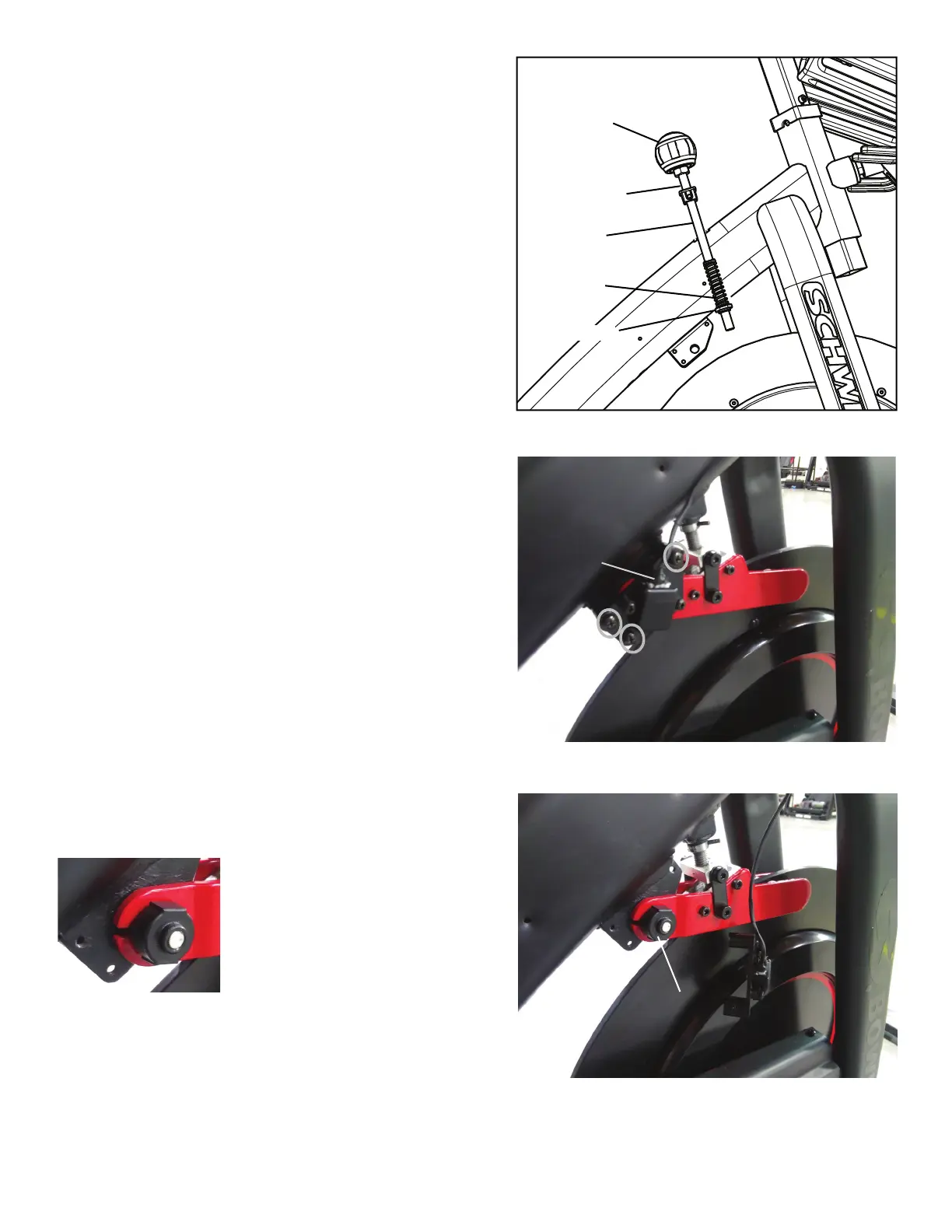

6. Pull quickly and sharply up on the Resistance Knob to pop the
plastic top cap out of the steel tube and remove the Resistance Knob and
Shaft. Note the spring and some spacers may remain in the square steel
tube. These can be retrieved with a magnet tool or turning the bike upside
down.
7. Using a #2 Phillips screwdriver, remove the hardware (indicated by
ovals) that secures the Resistance Sensor. Allow the Resistance Sensor
to hang from the Cable.
NOTICE: Do not crimp the cable.
8. Remove the Resistance Sensor Magnet after noting the at
segments are oriented up and downward. This will assist with re-
assembly.
Resistance Knob
Resistance Ad-
justment Shaft
Top Spacer
Spring
Square Spacer
Resistance Sensor
Resistance Sensor
Magnet
