Nautilus E618 Service Manual

102
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the
wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure
location.

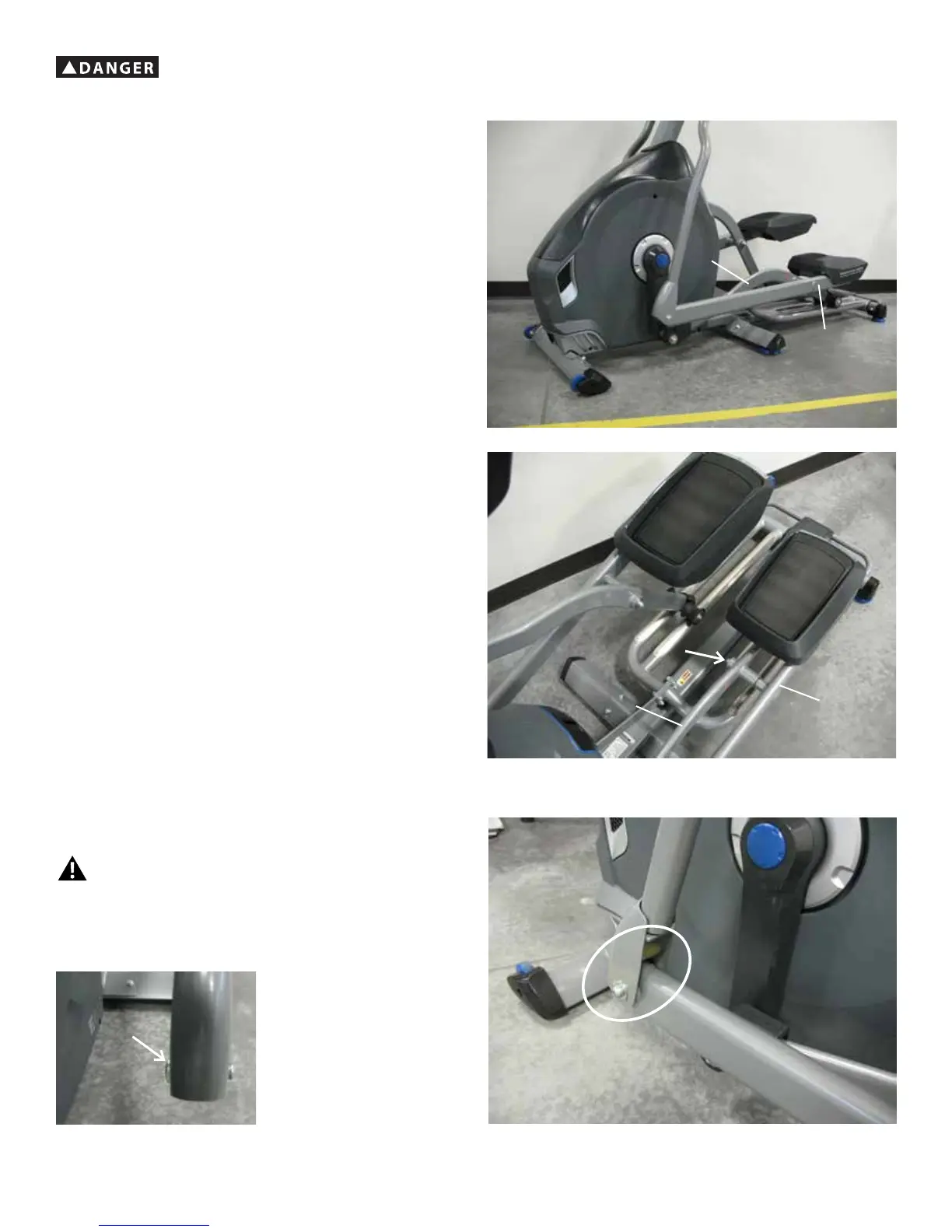

Note: This procedure shows the removal and replacement of the Left
Pedal and Leg. To remove the Right Pedal and Leg, adjust the procedure
accordingly.
1.Usinga6mmhexwrenchand13mmwrench,removetheindicated
hardware from the Pedal.
2.Usinga6mmhexwrenchanda13mmwrench,removetheindicated
hardware from the Lower Handlebar Arm and Pedal.
Be aware that the Handlebar Arm will be loose and may pivot
when the hardware is removed.
Note: To assist with reassembly, observe how the Pivot Sleeve engages
ushwiththeLowerHandlebarArm.
Pedal
Leg
Leg
Pedal

Nautilus E618 Specifications

General

Display	LCD
Programs	29
Heart Rate Monitoring	Contact and telemetry enabled
Bluetooth Connectivity	Yes
User Profiles	4
Maximum User Weight	300 lbs
