Nautilus E618 Service Manual

111

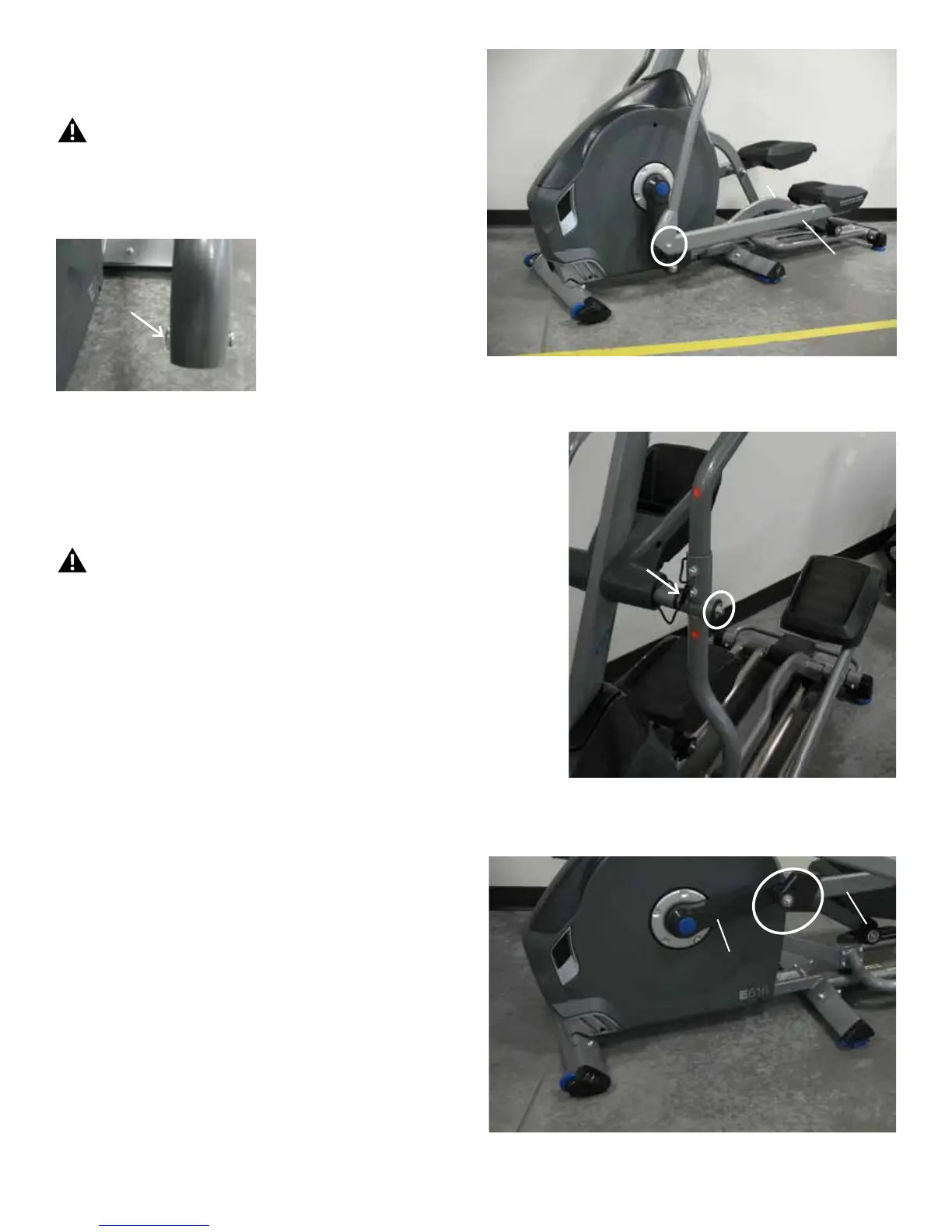

4.Usinga6mmhexwrenchanda13mmwrench,removetheindicated
hardware from the Lower Handlebar Arms and Pedals. Set the hardware
safely aside for reassembly.
Be aware that the Handlebar Arms will be loose and may
pivot when the hardware is removed. This step may require
two people.
Note: To assist with reassembly, observe how the Pivot Sleeve engages
ushwiththeLowerHandlebarArm.
5. Disconnect the Cable from the Upper Handlebar that goes into the
Console Mast.
6.Usinga6mmhexwrenchanda13mmwrench,removethehardware
from the Lower Handlebar Arms and the Arm Pivot Rod.
Be aware that the Handlebar Arms will be loose and may
pivot when the hardware is removed.
7. Remove the Handlebar Arm Assemblies and set them safely aside.
8.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Crank Arm and Leg.
9. Remove the Leg and Pedal together from the Rail Assembly and set
them safely aside for reassembly.
NOTICE: This step may require two people.
Leg
Pedal
Leg
Crank Arm

Nautilus E618 Specifications

General

Display	LCD
Programs	29
Heart Rate Monitoring	Contact and telemetry enabled
Bluetooth Connectivity	Yes
User Profiles	4
Maximum User Weight	300 lbs
