Nautilus E618 Service Manual

20

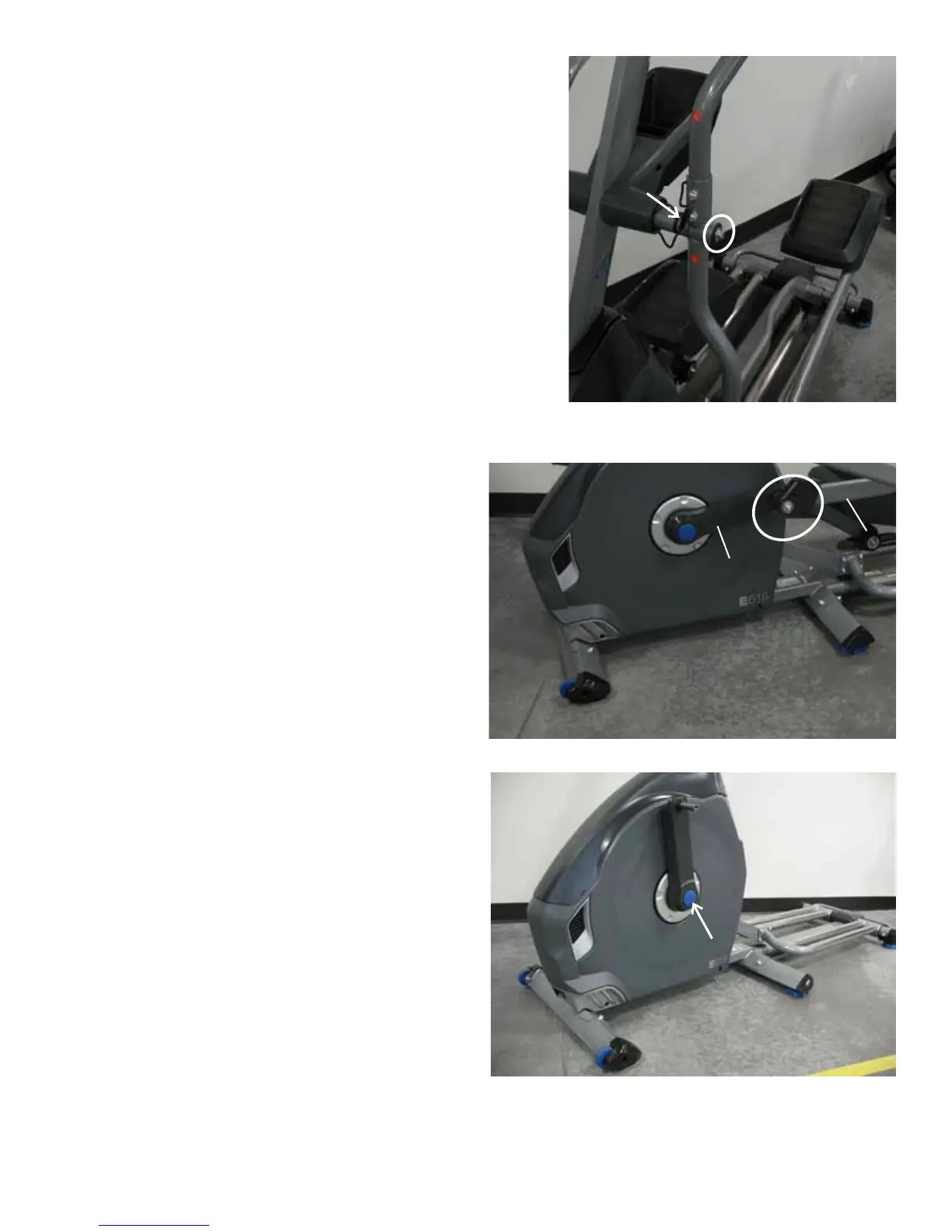

6. Disconnect the indicated Cable (with arrow) from the Upper Handlebar
that goes into the Console Mast.
7.Usinga6mmhexwrenchanda13mmwrench,removetheindicated
hardware (by oval) from the Arm Pivot Rod. Remove the hardware and the
Upper and Lower Handlebar Arms. Set them safely aside for reassembly.
8.Usinga6mmhexwrench,loosenandremovetheindicatedhardware
from the Left Crank Arm and Leg, and set it safely aside for reassembly.
Remove the left Leg and Pedal together from the Rail Assembly and set
them safely aside for reassembly.
NOTICE: This step may require two people.
9. Using a small standard screwdriver, gently pry the cap off of the Left
Crank Arm.
Leg
Crank Arm

Nautilus E618 Specifications

General

Display	LCD
Programs	29
Heart Rate Monitoring	Contact and telemetry enabled
Bluetooth Connectivity	Yes
User Profiles	4
Maximum User Weight	300 lbs
