Nautilus E618 Service Manual

40

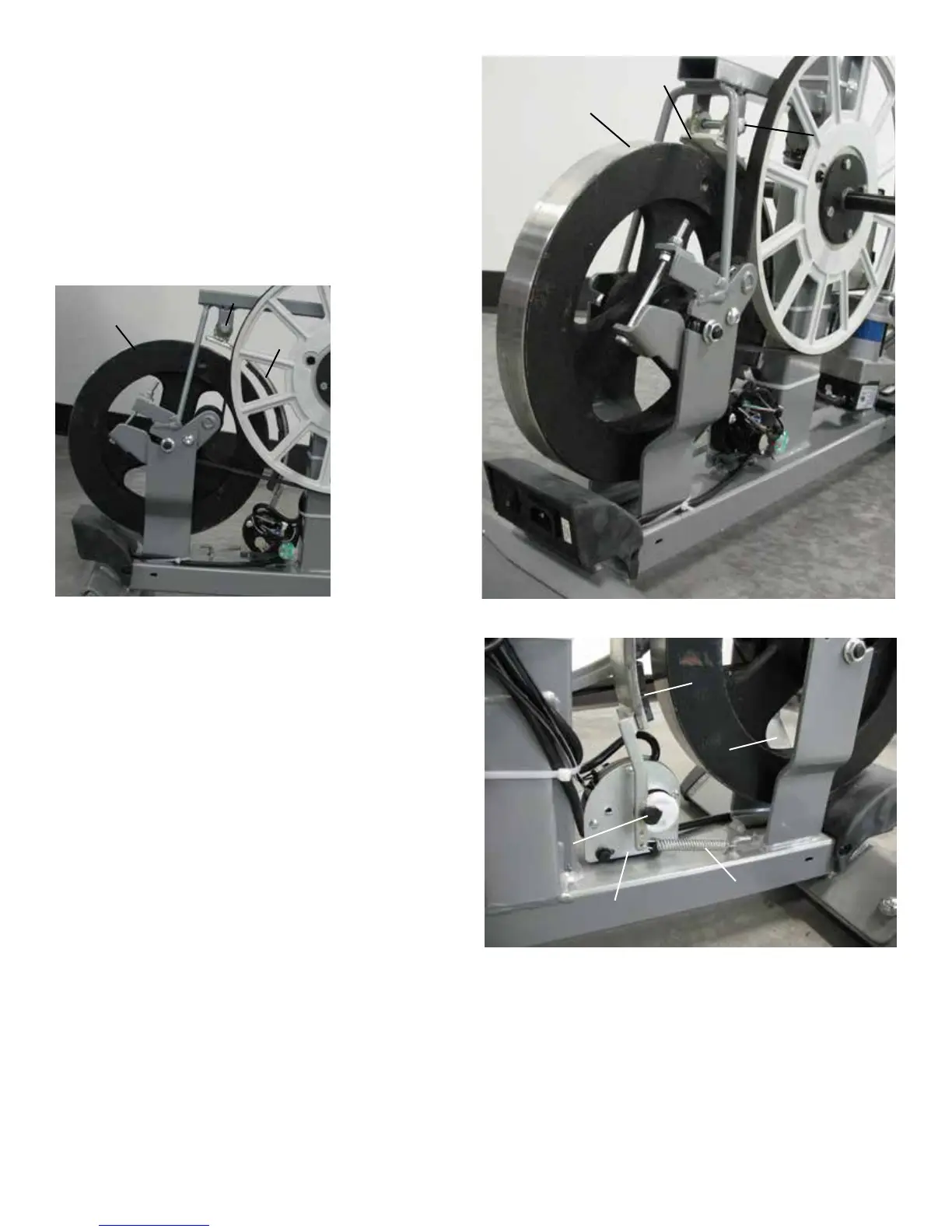

13.Insert2.5”x10”cardboardbetweentheFlywheelandthe
Brake Magnet, and tape the cardboard to the Brake Magnet.
Note: Be sure the cardboard covers all of the Brake Magnet.
14. Use pliers to unhook the Tension Spring from the Main Frame.
Pull back and release the Magnet Arm enough to disengage it
from the Motor Pulley Shaft.
15. Loosen and remove the Brake Magnet Hardware that attaches
the Brake Assembly to the Main Frame Bracket.
NOTICE: Hold the Brake Assembly so that it does not fall.
Do not crimp the cables
16. Remove the Brake Assembly, and then the cardboard. Discard
the old Brake Assembly.
17. Installation is the reverse procedure. Tape the cardboard to
the new Brake Magnet. Be sure the cardboard will completely
cover the new Brake Magnet before installation.
NOTICE: Do not crimp the cables.
Flywheel
Brake Magnet
Flywheel
Brake Magnet
Brake Magnet
Flywheel
Servo Motor Bracket
Tension Spring
Motor Pulley
Shaft
Brake Magnet Hardware
Brake Magnet
Hardware

Nautilus E618 Specifications

General

Display	LCD
Programs	29
Heart Rate Monitoring	Contact and telemetry enabled
Bluetooth Connectivity	Yes
User Profiles	4
Maximum User Weight	300 lbs
