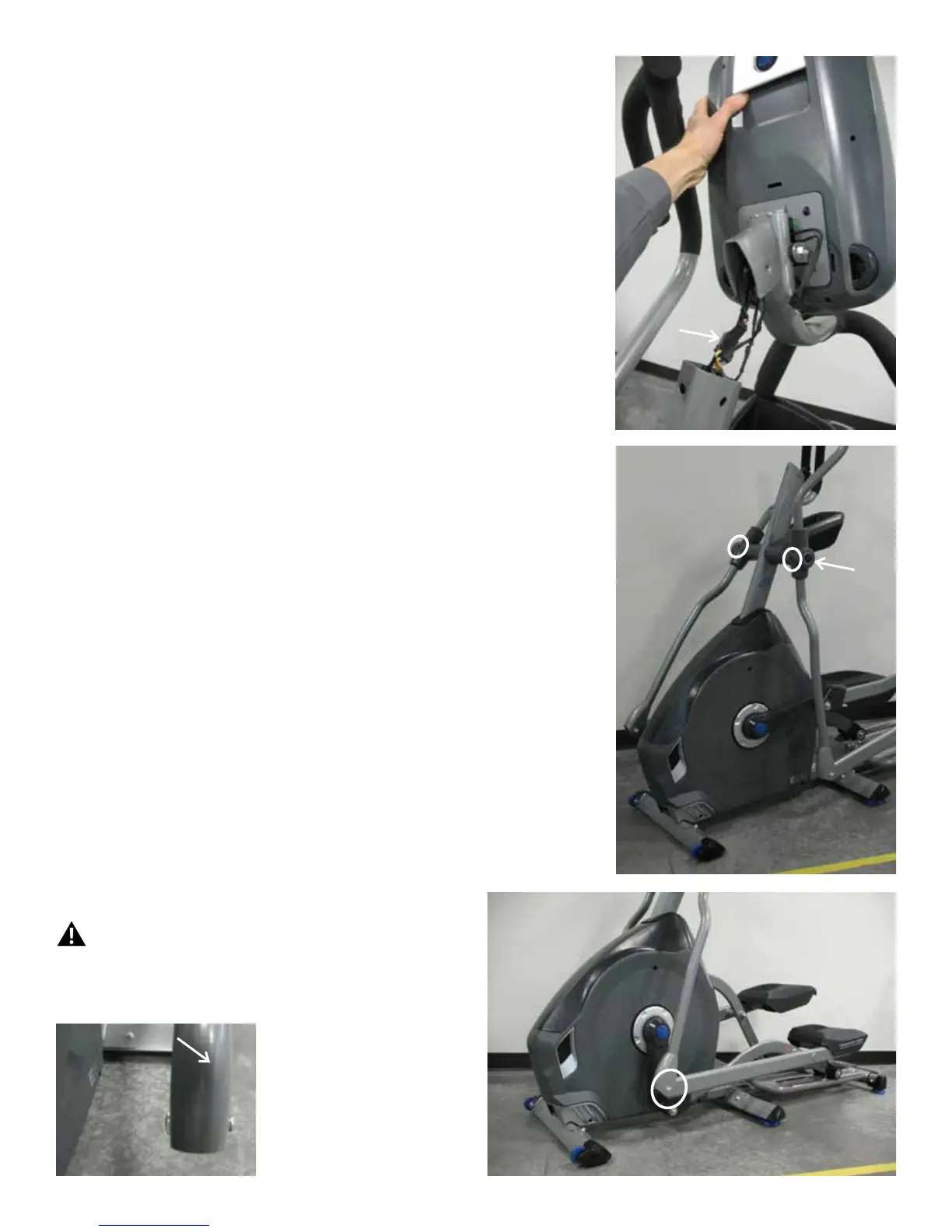

3. Gently lift and remove the Console/Static Handlebar Assembly from the
Console Mast and disconnect the four cables (the Input/Output, Lift Motor,
Resistance Control, and Incline Control Cables) that come from the back
of the Console.
Note: Do not let the Cables fall down inside the Console Mast. If neces-
sary, use a rubber band or wire tie to secure them. This step may require
two people.
4. Using a #2 Phillips screwdriver, remove the 4 screws from each set
(right and left) of the Handlebar Shrouds. After removing the hardware,
pinch the Handlebar Shrouds to unsnap them from each other. Place them
safely aside.
5.Usinga6mmhexwrenchanda13mmwrench,removetheindicated
hardware from the Lower Handlebar Arms and Pedals.
Be aware that the Handlebar Arm will be loose and may pivot
when the hardware is removed.
Note: To assist with reassembly, observe how the Pivot Sleeve engages
ushwiththeLowerHandlebarArm.
