Nautilus E618 Service Manual

79
Note: The Remote Incline Cable is on the left side of the machine, and
the Remote Resistance Cable on the right. The following photos show the
Remote Incline Cable being replaced. If replacing the Remote Resistance
Cable, perform the same steps but on the right side of the machine.

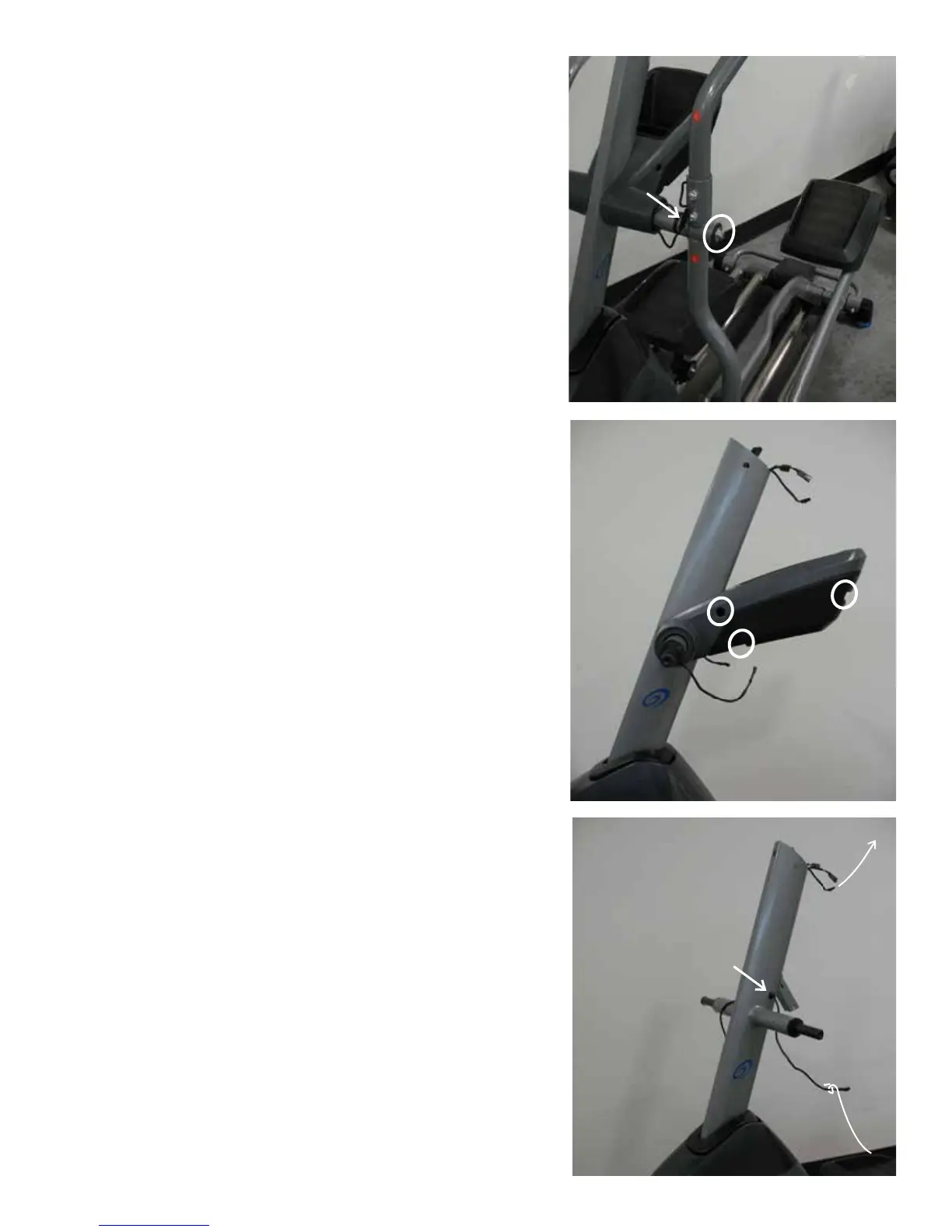

6. Disconnect the indicated Cable (with arrow) from the Upper Handlebar
that goes into the Console Mast.
7.Usinga6mmhexwrenchanda13mmwrench,removethehardware
from the Lower Handlebar Arm and the Arm Pivot Rod. The hardware on
both ends of the Arm Pivot Rod will need to be held to remove it.
8. Remove the Handlebar Arms.
9. Using a #2 Phillips screwdriver, remove the 5 screws (3 indicated on left
side, two on right side) from the Water Bottle Holder.
10. Remove the indicated grommet (by arrow) from the Console mast that
secures the Remote Incline Cable and remove it from the Cable.
11. Tie a length of string to the end of the Remote Incline Cable. Hold
the other end of the Remote Incline Cable and carefully pull it out of the
ConsoleMastsothatthestringextendsthroughtheConsoleMast.
NOTICE: Do not crimp the cables.
12. Untie the string from the old Remote Incline Cable and discard the old
cable.
