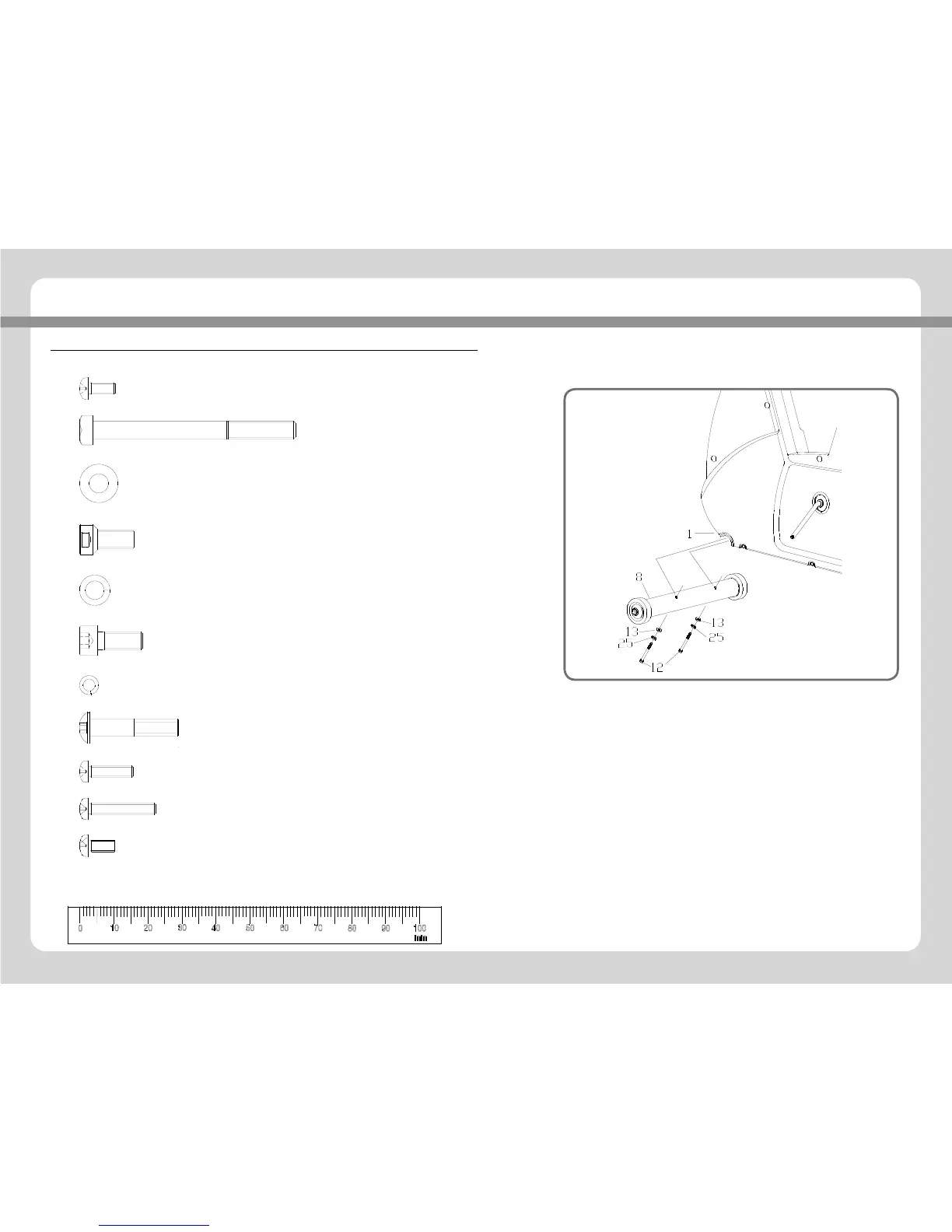

STEP 1: Attaching the Front Stabilizer
Attach the front stabilizer (#8) to the frame (#1), using two washers (#13), two spring
washers (#25) and two hex bolts (#12).
ASSEMBLY INSTRUCTIONS
NO. Description Quantity
11 Phillips Head Screw M5 (12mm) 2
12 Hex Bolt M8 (90mm) 4
13 Flat Washer 6
19 Allen Bolt M8 (16mm) 2
25 Spring Washer 6
27 Allen Bolt M8 (20mm) 2
37 Spring washer 4
86 Button Head Screw M8 (45mm) 2
7-5 Phillips Head Screw M5 (25mm) 2
7-4 Phillips Head Screw M5 (35mm) 2
7-6 Phillips Head Screw M5 (10mm) 4
