NB 3000 EXERCISE BIKE
ASSEMBLY INSTRUCTIONS

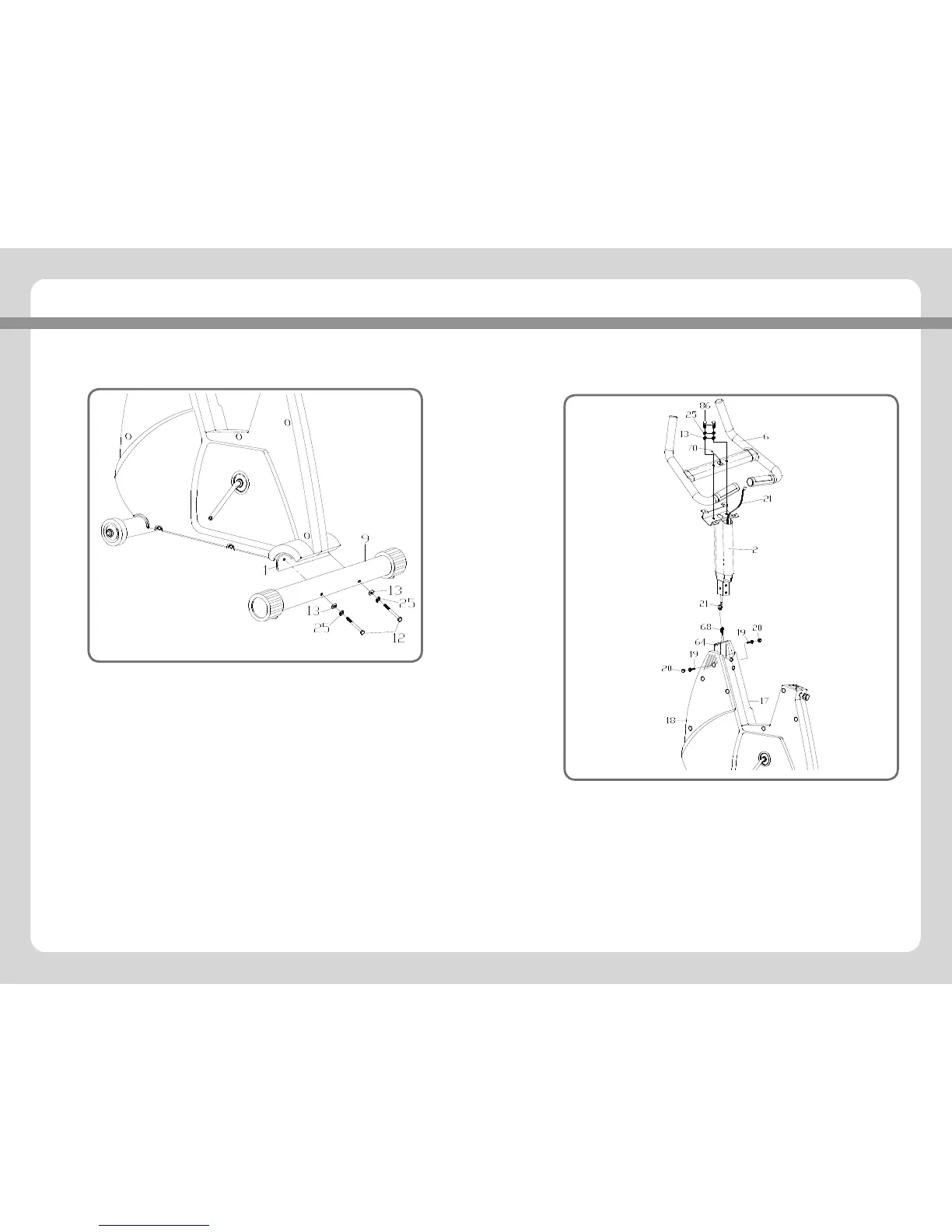

STEP 2: Attaching the Rear Stabilizer
Attach the rear stabilizer (#9) to the frame (#1), using two washers (#13), two
spring washers (#25) and two hex bolts (#12).
STEP 3: Assembling Handlebar & Console Mast
Attach the handlebar (#6) to the console mast (#2), using two washers (#13), two
spring washers (#25) and two button head screws (#86). Insert the handlebar boot
(#64) into the shrouds (#17, #18). Connect the upper computer wire (#21) with the
lower computer wire(#68). Secure the console mast using two Allen bolts (#19) and
two shroud caps (#20). Be careful not to damage computer wire during assembly.
To Next Page
