NB 3000 EXERCISE BIKE ASSEMBLY INSTRUCTIONS

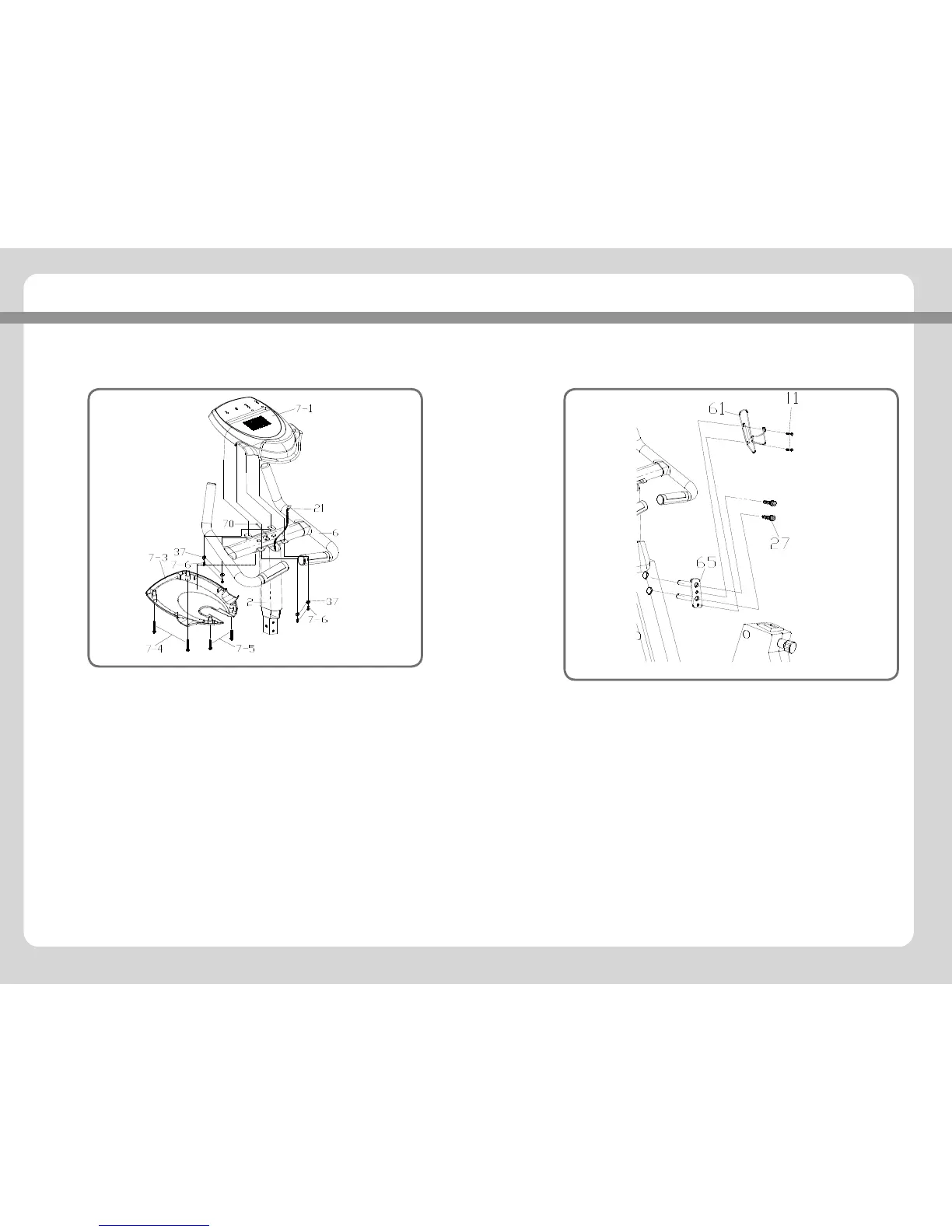

STEP 4: Attaching Computer Console
Plug the upper computer wire (#21) and the hand grip wire (#70) into the com-
puter console (#7-1). Fasten the computer console (#7-1) to the console mast (#2)
using four washers (#37) and four Phillips head screws (#7-6). Attach the computer
lower cover (#7-3) to the computer console (#7-1) using two 35mm Phillips head
screws (#7-4), and two 25mm Phillips head screws (#7-5).
STEP 5: Attaching Water Bottle Cage
Install the bottle bracket (#65) into the shroud using two Allen bolts (#27). Then
assemble the water bottle cage (#61) into the bracket using two Phillips head screws
(#11).
