Nautilus NE 3000 User Manual

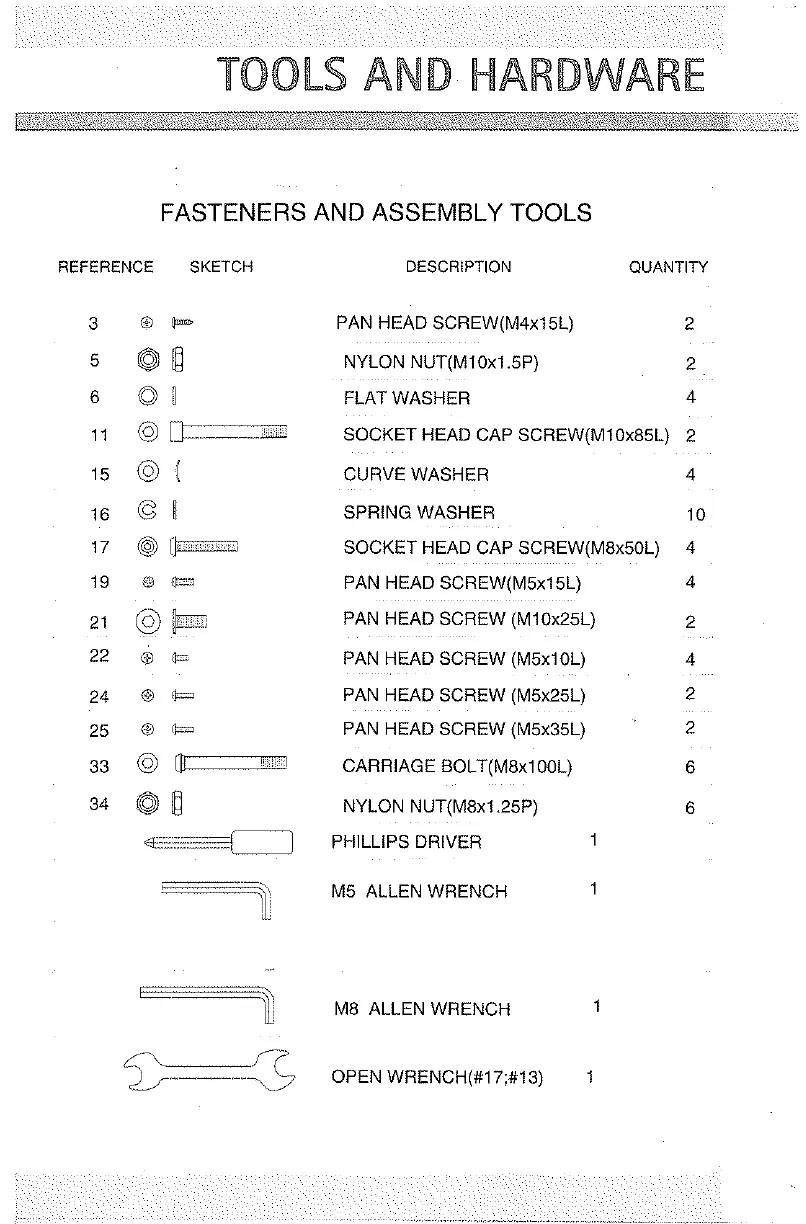

HARDWARE
TOOLS ANI
FASTENERS AND ASSEMBLY TOOLS
REFERENCE SKETCH DESCRIPTION QUANTITY
3 © pm PAN HEAD SCREW(M4x15L) 2
5 β NYLON NUT(M10x1.5P) 2
6 01 FLAT WASHER 4
1 OUT SOCKET HEAD CAP SCREW(M10x85L) 2
15 CURVE WASHER 4
16 SPRING WASHER 10
17
SOCKET HEAD CAP SCREW(M8x50L) 4
19 PAN HEAD SCREW(M5x15L) 4
21
PAN
HEAD
SCREW
(M10x25L)
2
22 PAN HEAD SCREW (M5x10L) 4
24 PAN HEAD SCREW (M5x25L) 2
25 PAN HEAD SCREW (M5x35L) 2
33 CARRIAGE BOLT(M8x100L) 6
34 NYLON NUT(M8x1.25P) 6
PHILLIPS DRIVER 1
FRS, M5 ALLEN WRENCH 1
出
e
İ M8 ALLEN WRENCH 1
SN 7 一
DS OPENWRENCHW#17:#19) 1
