NE
3000
ELLIPTICAL
TRAINER

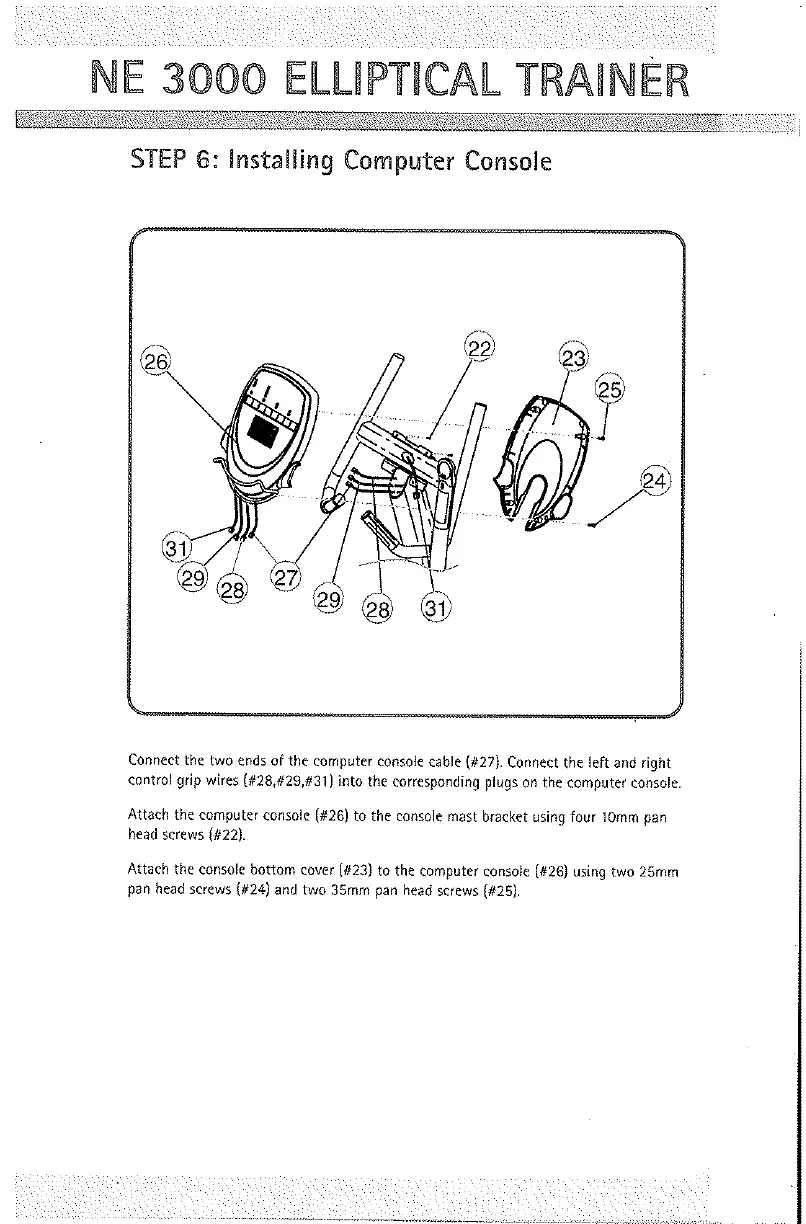

STEP
6:
Installing
Computer
Console
M
Connect
the
two
ends
of
the
computer
console
cable
(327).
Connect
the
left
and
right
control
grip
wires
(#28,#29,#31)
into
the
corresponding
plugs
on
the
computer
console.
Attach
the
computer
console
(#26)
to
the
console
mast
bracket
using
four
10mm
pan
head
screws
(422).
Attach
the
console
bottom
cover
(#23)
to
the
computer
console
(#26}
using
two
25mm
pan
head
screws
(#24) and
two
35mm
pan
head
screws
(#25).
