Nautilus ONE Service Manual

3
1
2
Return plates to:
Nautilus Inc.
709 Powerhouse Rd.
Independence, VA
24348
Seat Frame
Weight Drive
Seat Frame
Plate

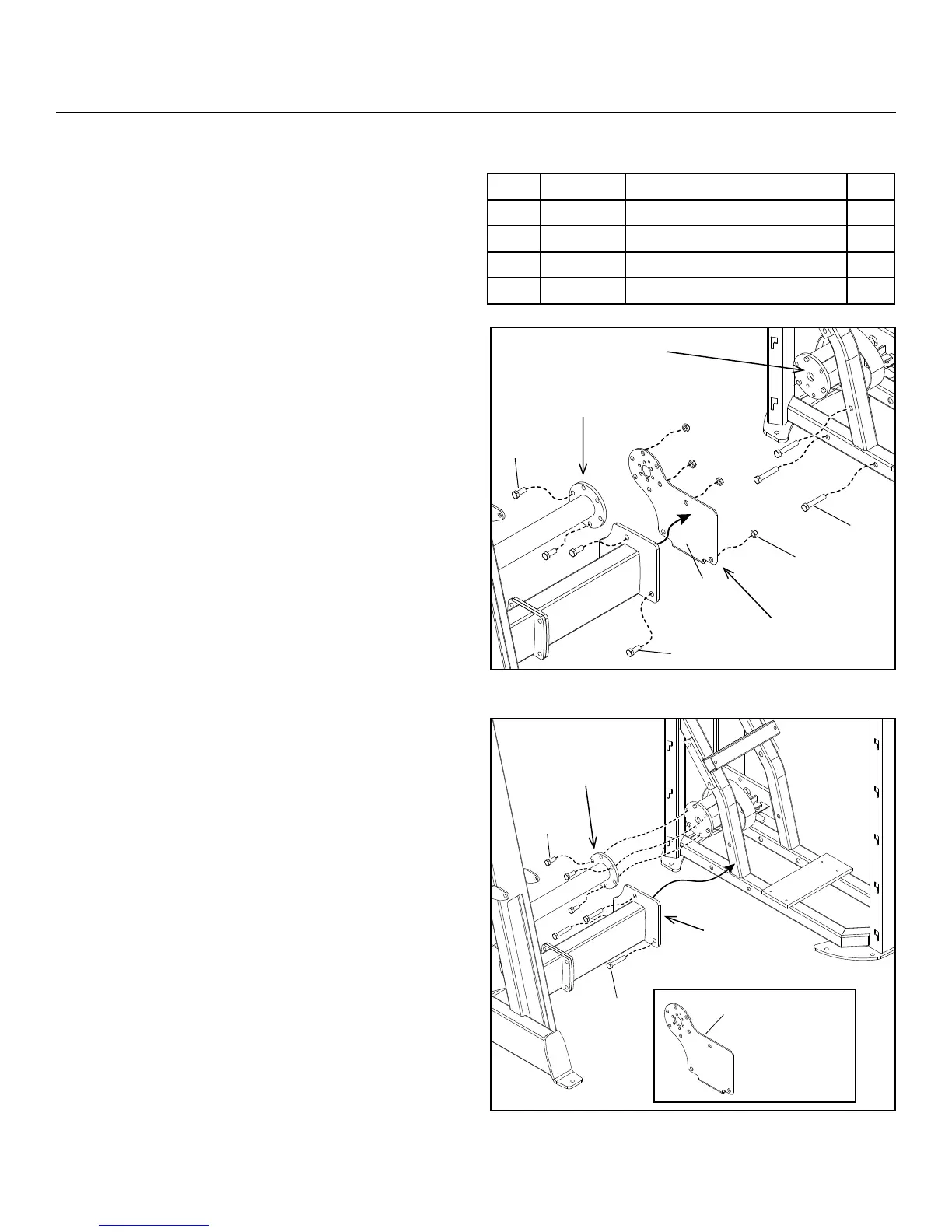

Weight Drive Installation/Removal
Tools Required: 3/4” Socket Wrench,
AdjustableWrench
Installation Tip: Inspect the seat frame movement
arm(s) before assembly to the weight tower. If the
movement arm(s) are not resting firmly against the rubber
stop(s), reduce belt tension as necessary. The movement
arm must rest against the rubber stops to ensure proper
initial weight drive to seat frame assembly and jackshaft
timing. Belt tensioning procedures are located on Page 11
of this service manual.
1-1 Remove (3) 1/2-13 x 3” bolts from the Tower with
3/4” socket wrench (Figure 1).
1-2 Remove the Weight Drive Support from the Seat
Frame by removing (4) 1/2-13 x 1 1/4” bolts and
(4) 1/2-13 Lock Nuts with 3/4” socket wrench and
adjustable wrench. Discard (1) bolt and (1) nut
(Figure 2).
NO. PART NO. DESCRIPTION QTY.
1 56-0161 WEIGHT DRIVE SUPPORT 1
2 01-1331 BOLT HH 1/2-13 X 3” 3
3 01-1271 BOLT HH 1/2-13 X 1 1/4” 4
4 03-1055 LOCK NUT 1/2-13 4
1
2
4
3
3
Seat Frame
Weight Drive
Weight Drive
Support
Tower
Weight Drive
Service Procedures
Figure 1
Figure 2
Service Manual
9

Nautilus ONE Specifications

General

Target Muscles	Full Body
Usage	Home
Frame Material	Steel
Type	Elliptical
User Interface	LCD
Display	LCD
Heart Rate Monitoring	Yes
Resistance System	Eddy Current Brake (ECB)
