P-Slot
Nautilus ONE™ Tower Shroud Installation
Attach the Rear Shroud
1-1 Put Rear Shroud into the Bottom slot and secure with one
screw at the top.
Attach the Inside Shroud
2-1 Put Inside Shroud into P-slots in the Steel Frame and fit
the adjustment knob assembly through the center hole of
the shroud.
2-2 Insert front and back tabs into the P-slot openings (See
Fig. 1).
2-3 Push down on both front and back to seat tabs at the
bottom of the P-slots.
NOTICE: Do not attempt to force the shroud downward or
tabs may be broken off. When the tabs are aligned
to the P-slots, the cover should drop down into the
slots with minimal resistance.
2-4 I nstall the center cap behind the dial. Adjust the dial to
the lowest setting and lift the dial up and out of the way
(Figure 2). Snap the center cap into the shroud opening
tabs. Make sure to align the cap to the open ring.
Attach the Outside Shroud
3-1 Put Outside Shroud into the P-slots in the Steel Frame.
3-2 Push down on both front and back to seat tabs at the
bottom of the P-slots. When the tabs are aligned to the
P-slots, the cover should drop down into the slots with
minimal resistance.
3-3 Align and attach the tab/slot where the front of both side
shrouds meet at the top of the front post.
NOTICE: Do not attempt to force the shroud downward or
tabs may be broken off.
Attach the Handlebar Assembly
4-1 Position the handle bars over the plastic shrounds (Figure 3).
4-2 Attach the handlebar with (4) hex head bolts, (4) lock
washers and (4) lock nuts.
Attach the Rear Shroud
5-1 Position the handle bars over the plastic shrounds (Figure 4).
Service Procedures

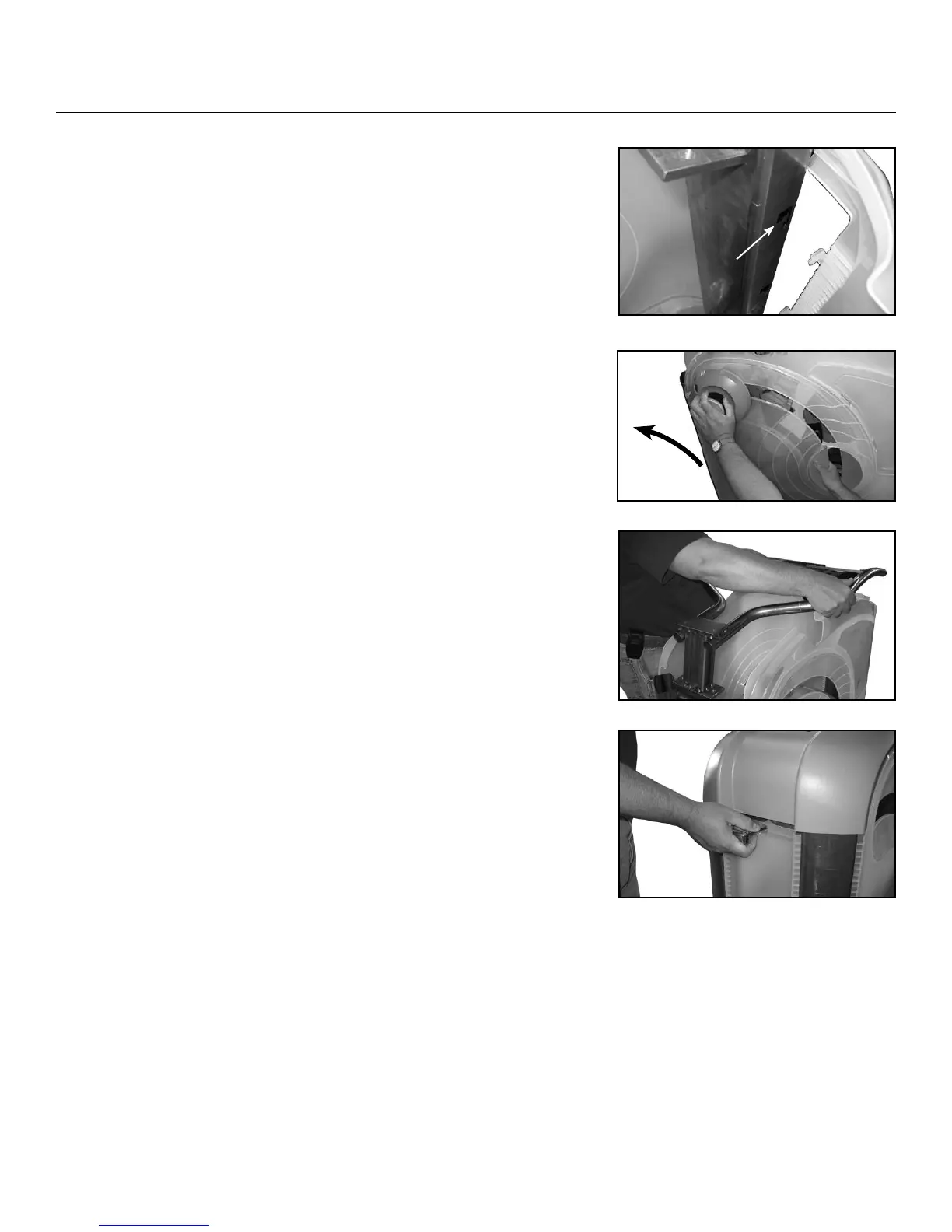

Figure 1
Figure 2
Figure 3
Figure 4
Service Manual
7
