Nautilus U624 - Assembly Instructions: Stabilizers and Console Mast

8
ASSEMBLY

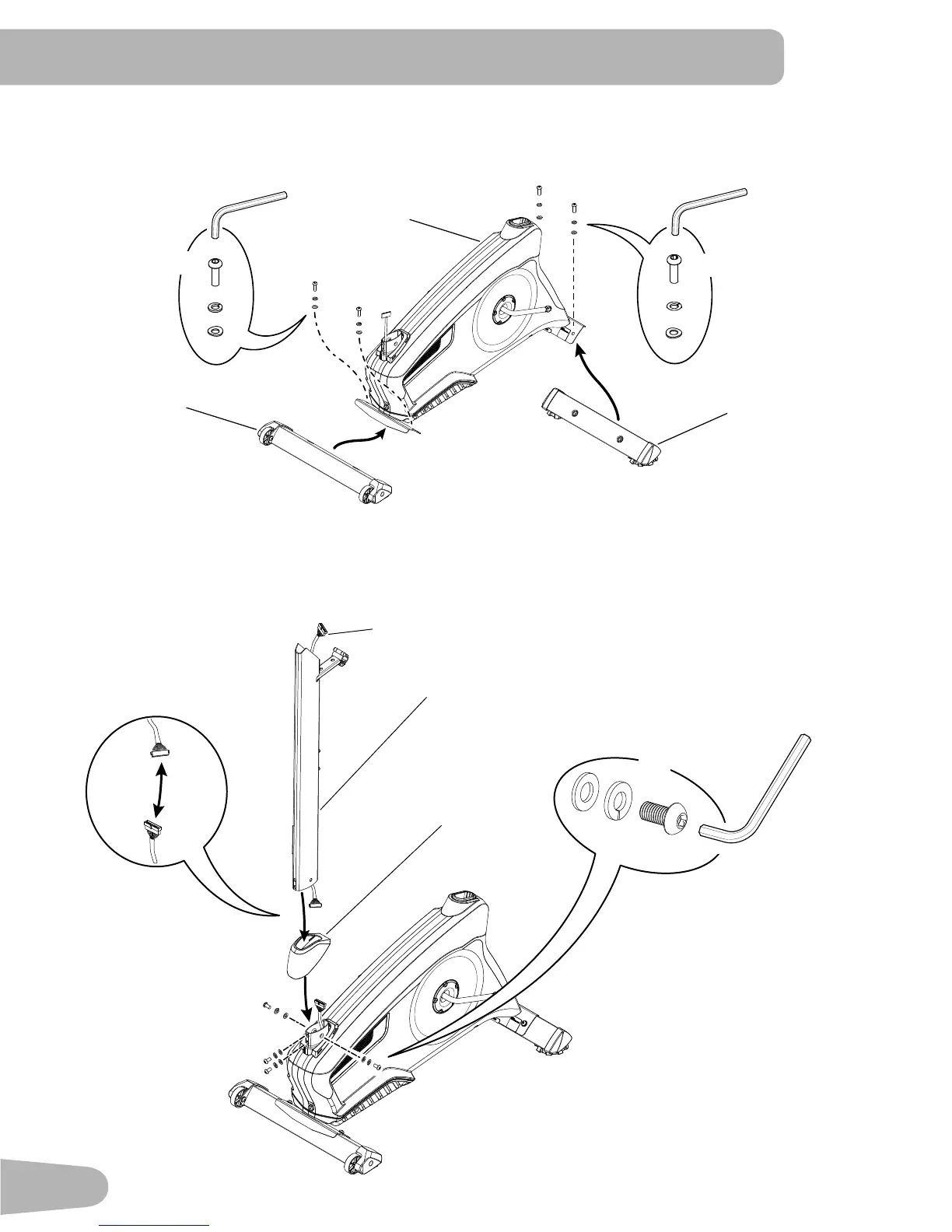

1. Attach Stabilizers to Main Frame
Note: Hardware (*) is pre-installed on the stabilizers and not on Hardware Card. Make sure transport wheels on
the front stabilizer point forward.
2. Install Console Mast and Mast Gasket on Main Assembly
NOTICE: Make sure the Console Cable connector (a) does not fall into the Console Mast. Align the clips on the
cable connectors and make sure the connectors lock. Do not crimp Console Cable.
X2
6 mm
*
*
*
X2
6 mm
*
*
*
2
3
1
A
6 mm
C
B
X4
a
4
5
