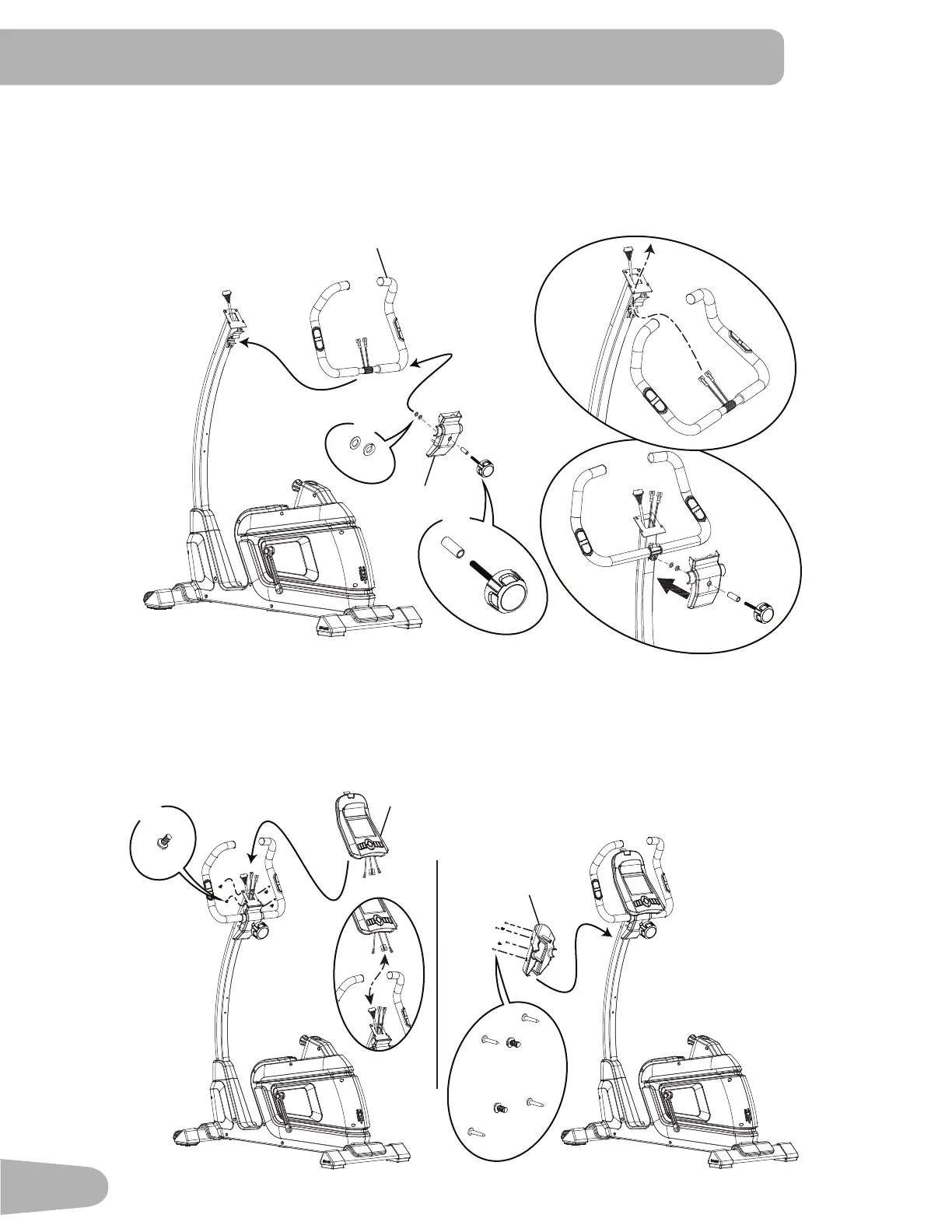

3. Attach Handlebars to Console Mast
NOTICE: Route the Contact Heart Rate Cables through the opening in the Console Mast. Do not crimp the cables. Put
the Handlebars in the bracket on the Console Mast, adjust the Handlebars to the desired angle, place the
Handlebar Mount Cover into position, and install the hardware. Fully tighten the Handlebar Adjustment Knob
to keep the Handlebar in position.
5
2
16
X1
C
D
E
X1
4. Attach the Console and Console Pivot Shroud to Console Mast
NOTICE: Donotcrimpthecables.PushtheextrawiredownintotheConsoleMasttoallowpivotclearance.The hardware(*)
is pre-installed and not on the Hardware Card.
3
1
F
F
F
F
*
X4
*
*
