Nautilus U627 - Assembly Instructions - Part 1; Attach Stabilizers to Main Frame

9
ASSEMBLY

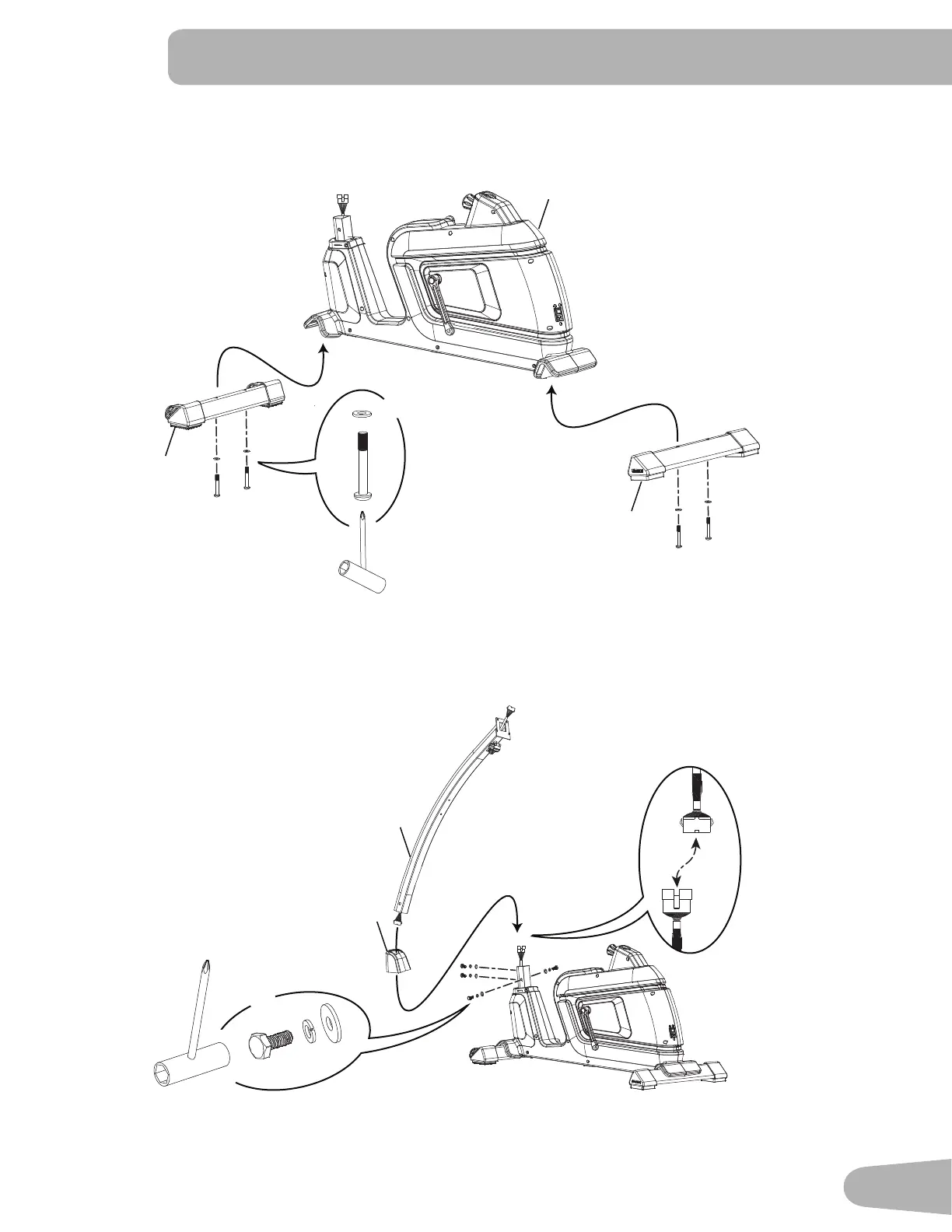

1. Attach Stabilizers to Main Frame
Note: Make sure transport wheels on the front stabilizer point forward.
2. Attach Console Mast and Mast Boot to Frame Assembly
NOTICE: Do not crimp Console Cable. The hardware(*) is pre-installed on the Console Mast and not on the Hardware
Card.
X4
10
14
11
B
A
*
*
*
X4
4
13
