8

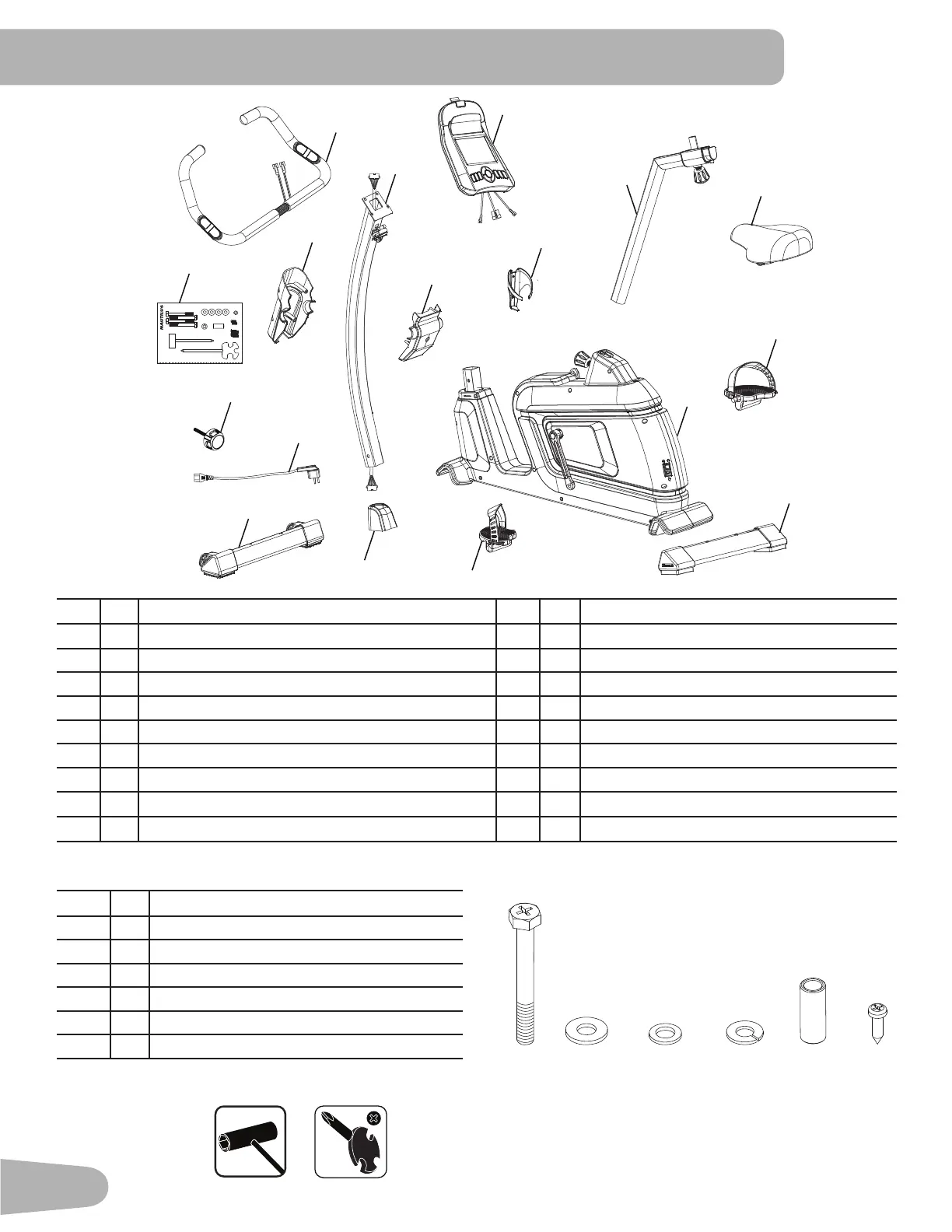

PARTS / HARDWARE / TOOLS
Item Qty Description Item Qty Description
1 1 Console 10 1 Main Frame
2 1 Handlebars 11 1 Rear Stabilizer
3 1 Console Pivot Shroud 12 1 Left Pedal (L)
4 1 Console Mast (with Handlebar Mount) 13 1 Mast Boot
5 1 Handlebar Mount Cover 14 1 Front Stabilizer
6 1 Water Bottle Holder 15 1 Power Cord
7 1 Seat Post 16 1 Handlebar Adjustment Knob
8 1 Seat 17 1 Hardware Card
9 1 Right Pedal (R)
Hardware
1
5
6
4
2
3
10
9
7
14
17
8
12
11
13
15
16
8026026 REV
A
1 OF 1
A
x4
B
x4
D
x1
C
x1
F
x
2
G
x4
E
x1
Item Qty Description
A 4 PhillipsHeadHexScrew,M8x72
B 4 Flat Washer, M8
C 1 Flat Washer, Narrow M8
D 1 Lock Washer, M8
E 1 Bushing
F 4 SelfTappingScrew,2.9x13
Tools (Included)
A B C D E F
