Navien NFB Series User Manual

76 Installing a Common Vent System
9.6.3 Direct Vent Application – Horizontal
Installation
12" (300 mm) min.
12" (300 mm) min.
Exhaust Gas
Intake Air

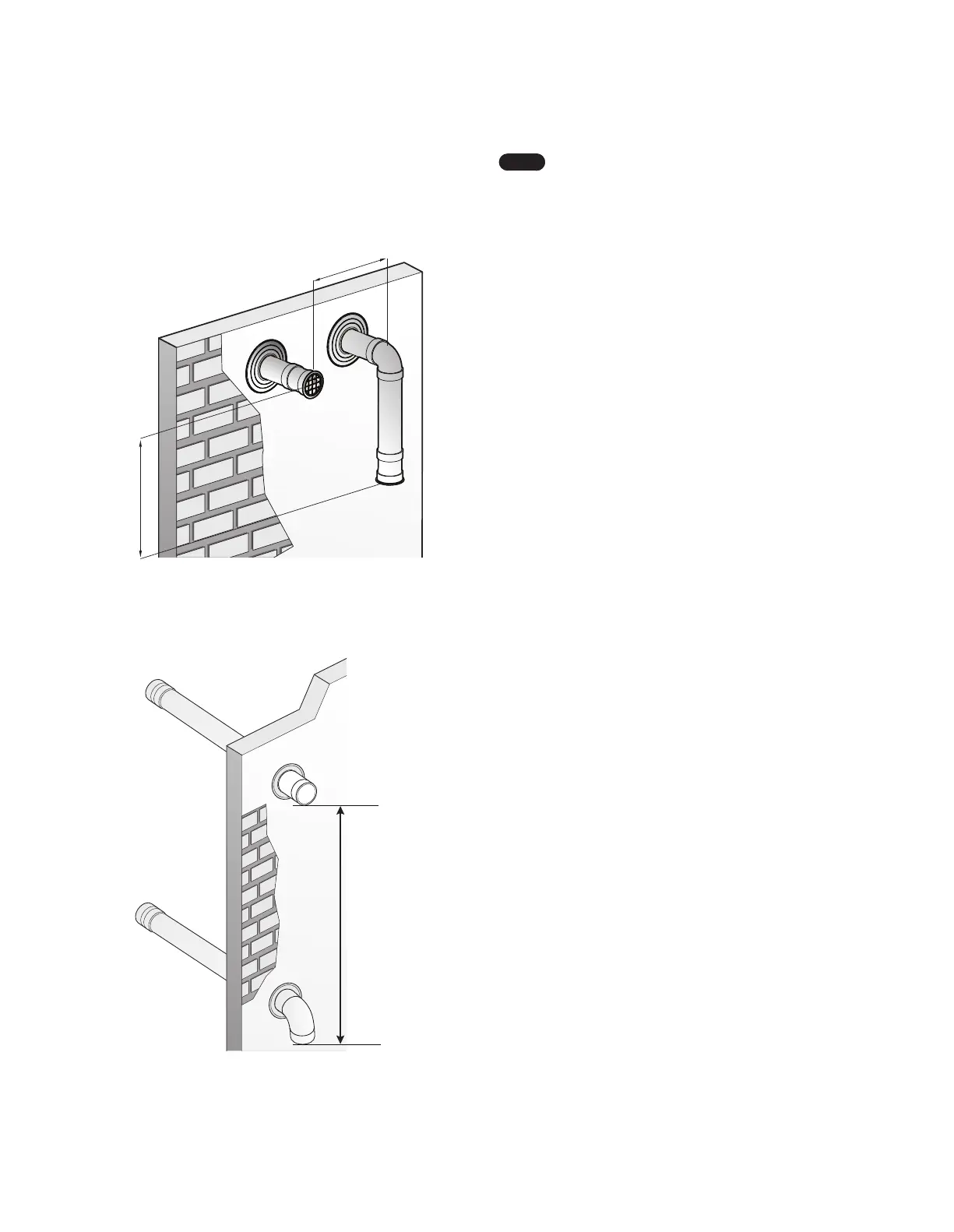

In cases where a 12” horizontal clearance is not possible, provide a
vertical clearance of at least 36” with the exhaust above the intake
but do not exceed 20’.
Intake
Maximum
length 20’
(6 m)
Minimum
length 36”
(91 cm)
Exhaust
Note
●
The illustration is intended for reference purposes
only.
●
Direct the exhaust away from any building
openings.
●
During cold weather situations, the temperature of
the exhaust will be much warmer than the ambient
air. Therefore, you will see water vapor being
produced at the termination.

Navien NFB Series Specifications

General

Type	Condensing Boiler
Fuel Type	Natural Gas or Propane
Heat Exchanger	Stainless Steel
Vent Type	Direct Vent
Vent Diameter	2" or 3"
