Maintaining the Water Heater 11

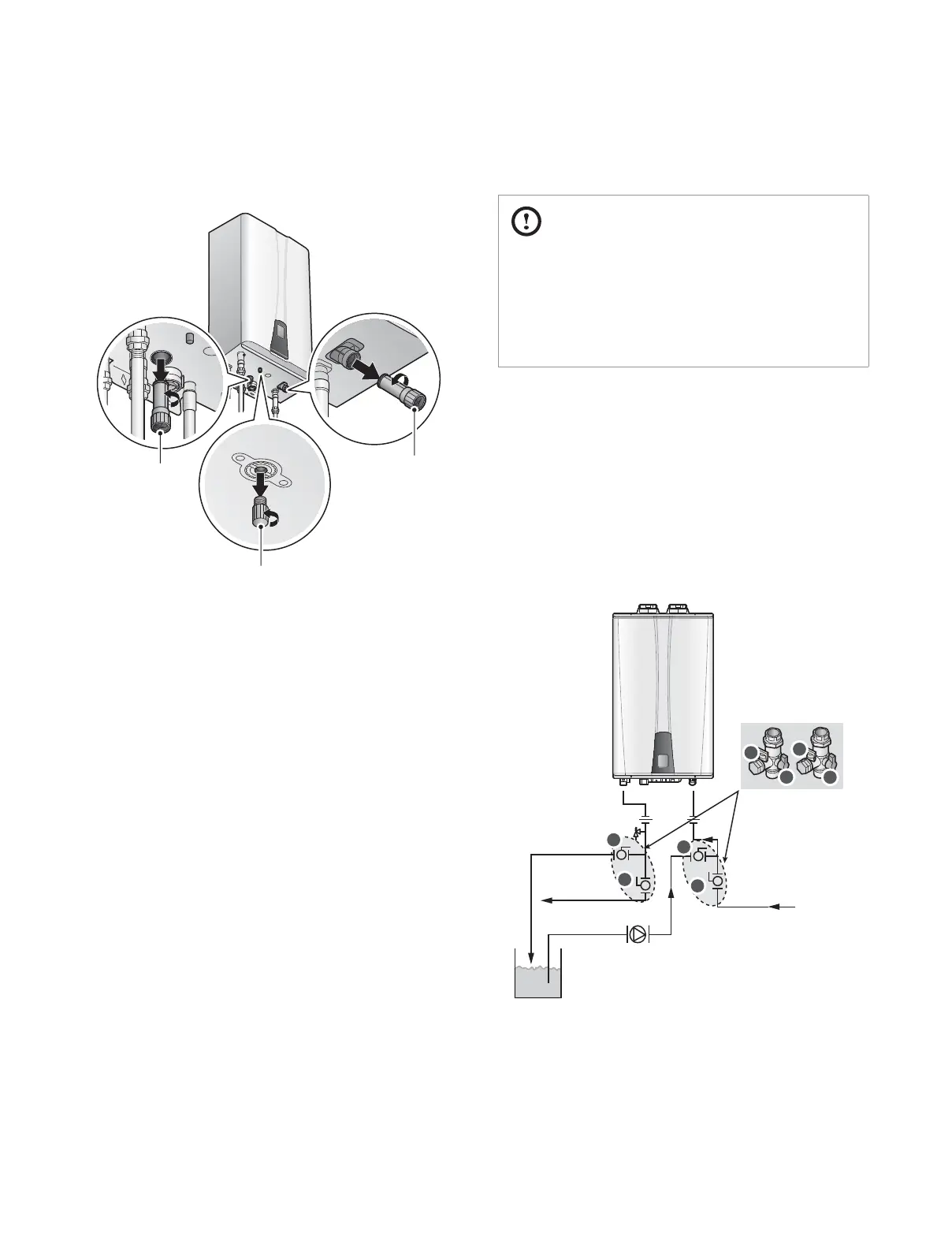

4.3 Flushing the Heat Exchanger
CAUTION
Flushing the Heat Exchanger is a somewhat complicated
procedure. Read the following instructions carefully before
attempting this procedure. If you are uncertain about any of
the steps in the procedure, contact an authorized technician or
licensed professional. Keep in mind that improper maintenance
can void your warranty.
Refer to the “2.2 Parts of the Water Heater” on page 6 for
details about part locations.
Before flushing the Heat Exchanger, gather the following items:
Ɣ
A bucket that is 5 gallons or larger
Ɣ
Cleaning solution diluted with water
Ɣ
3 hoses
Ɣ
A water circulation pump
To flush the Heat Exchanger:
A
A
B
B
C
C
D
D
Navien Easy valve Kit
Cold Water Line
Hot Water Line
Circulation Pump
Flushing Kit
6. Remove the recirculation inlet filter from the bottom of the
water heater (“A” model only).
Recirculation
Inlet Filter
(“A” model only)
Pump Drain Plug
(“A” model only)
Cold Water
Inlet Filter
7. Open the pump drain plug (“A” model only).
8. Remove the cold water inlet filter.
9. Allow the residual water to drain from the water heater.
10. When the water is completely drained, reinsert the
recirculation inlet filter and the cold water inlet filter, and then
close the pump drain plug.
11. To refill the water heater follow the steps of “Draining the
Water Heater” in reverse.
To Next Page
