DIAGNOSTICMANUAL

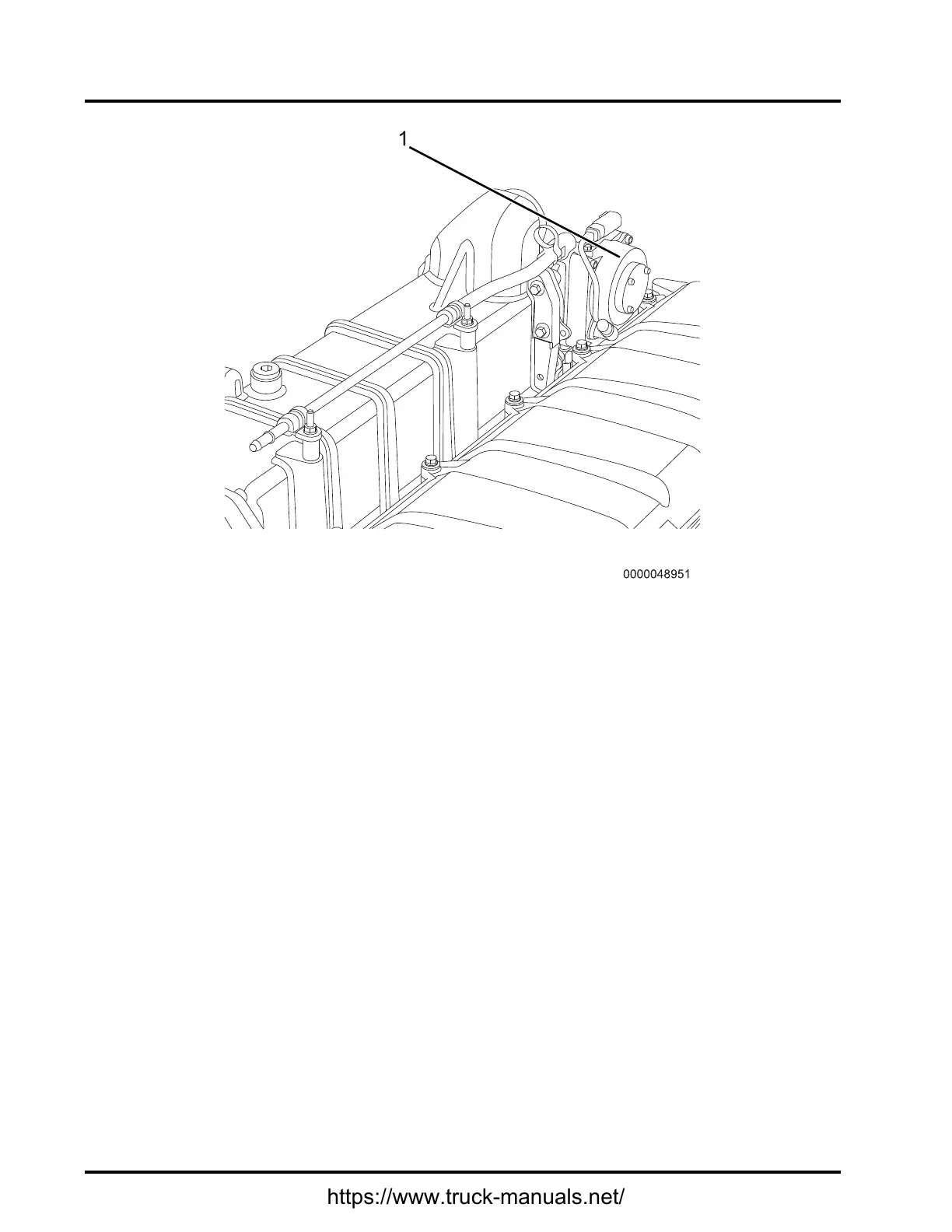

1.ExhaustGasRecirculation(EGR)
valve
Figure41EGRValveLocationMaxxForce®11and13Engines(RightRearEngine)
ExhaustGasRecirculation(EGR)Valve
TheEGRvalvereceivesthedesiredvalvepositionfromtheECMforexhaustgasrecirculation.TheEGR
valveregulatestheowofexhaustgasesthroughtheEGRsystem.
144
