INSTALLATION/ SERVICE MANUAL
INSTALLATION/ SERVICE MANUAL
13
14

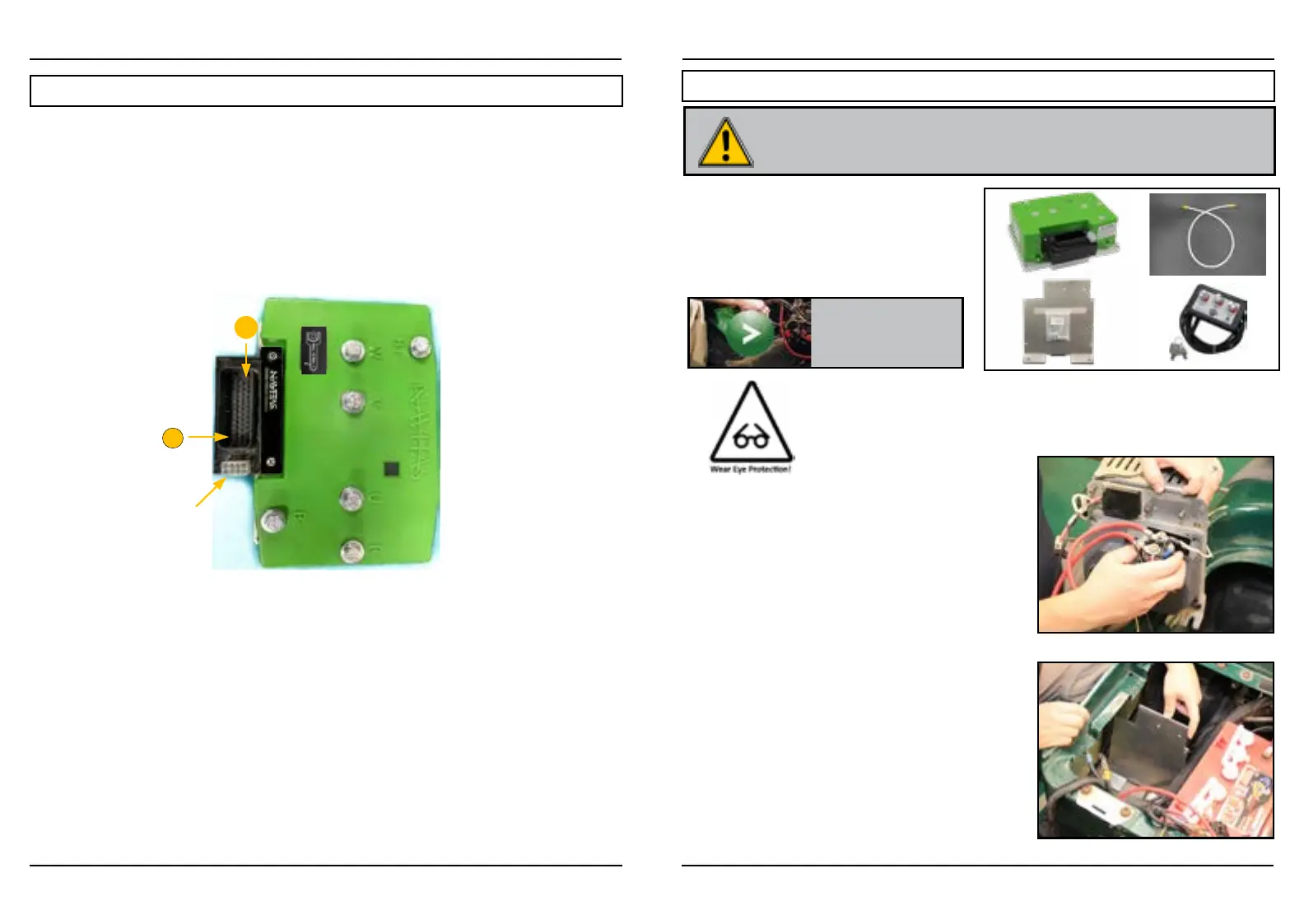

INSTALLATION INSTRUCTIONS
RXV Installation cont’d
Pinout for Controller
Diagrams and other updates available at:
NavitasVS.com/support
To OEM vehicle harness
P1: Key In
P2: Reverse Buzzer
P3: NA
P4: Brake Light Relay Release
P5: Brake Solenoid Out
P6: Main Solenoid Out
P7: Logic Power GND
P8: Motor Temperature In
P9: Foot Switch In
P10:Tow Switch In
P11:Charger Interlock In
P12:Brake Switch In
P13: NA
P14: NA
P15:+5V PF
P16:Throttle In
P17:Brake In
P18:Anolog GND
To OTF Programmer
PN: 10-000686
P1: +12V PF
P2: OTF Regen
P3: OTF speed
P4: OTF acceleration
P5: +5V PF
P6: OTF Lock
P7: OTF LED
P8: Analog Ground
Navitas TAC2 AC Motor Controller
for EZ-GO RXV
Product Model 10-000878-01
35-POS Ampseal
1-776231-1
8-POS Molex
39-28-1083
P19:NA
P20:NA
P21:NA
P22:Forward In
P23:CAN Positive
P24:NA
P25:+12V Output
P26:+5V PF
P27:NA
P28:NA
P29:NA
P30:SOC Display Out
P31:SPD A In
P32:SPD B In
P33:Reverse In
P34:Analog Ground
P35:CAN Negative
35
1
Module 40-000620
TAC2 for RXV
OTF
Issue Date: 20181219
1. Power down
• Turn o key, disconnect battery
• Put car on a stand and block wheels
• Use insulated tools
• Never use battery as workbench
2. Remove OEM Controller
• Remove OEM Protective cover
• Remove solenoid (
Fig. 1) - keep wires connected
• Remove resistor cage
• Remove motor phase cables and resistor cable,
B- cable from controller
• Unclip Harness wires
• Remove plate (along with Danaher controller and
black resistor module and wires)
3. Install New Mounting Plate (Fig. 2)
• Install plate in existing location using OEM
hardware.
INSTALLATION INSTRUCTIONS
RXV 23 (Danaher) Installation
Disconnect all batteries before beginning
installation. If the car has a run/tow switch, you must
place the switch in the TOW position first!
CAUTION
Parts:
• AC Navitas controller with Bluetooth
• On-The-Fly programmer (optional)
• Mounting plate and hardware
• Resistor wire (longer for replacement)
To view our Installation
video for Golf Cars, visit:
NavitasVS.com/support
Fig. 1
Fig. 2
Navitas TAC2 AC Motor Controller
for RXV
Product Model 10-000880-01 (440A)
10-000880-01 (600A)
To Next Page
