INSTALLATION/ SERVICE MANUAL
INSTALLATION/ SERVICE MANUAL
15
16

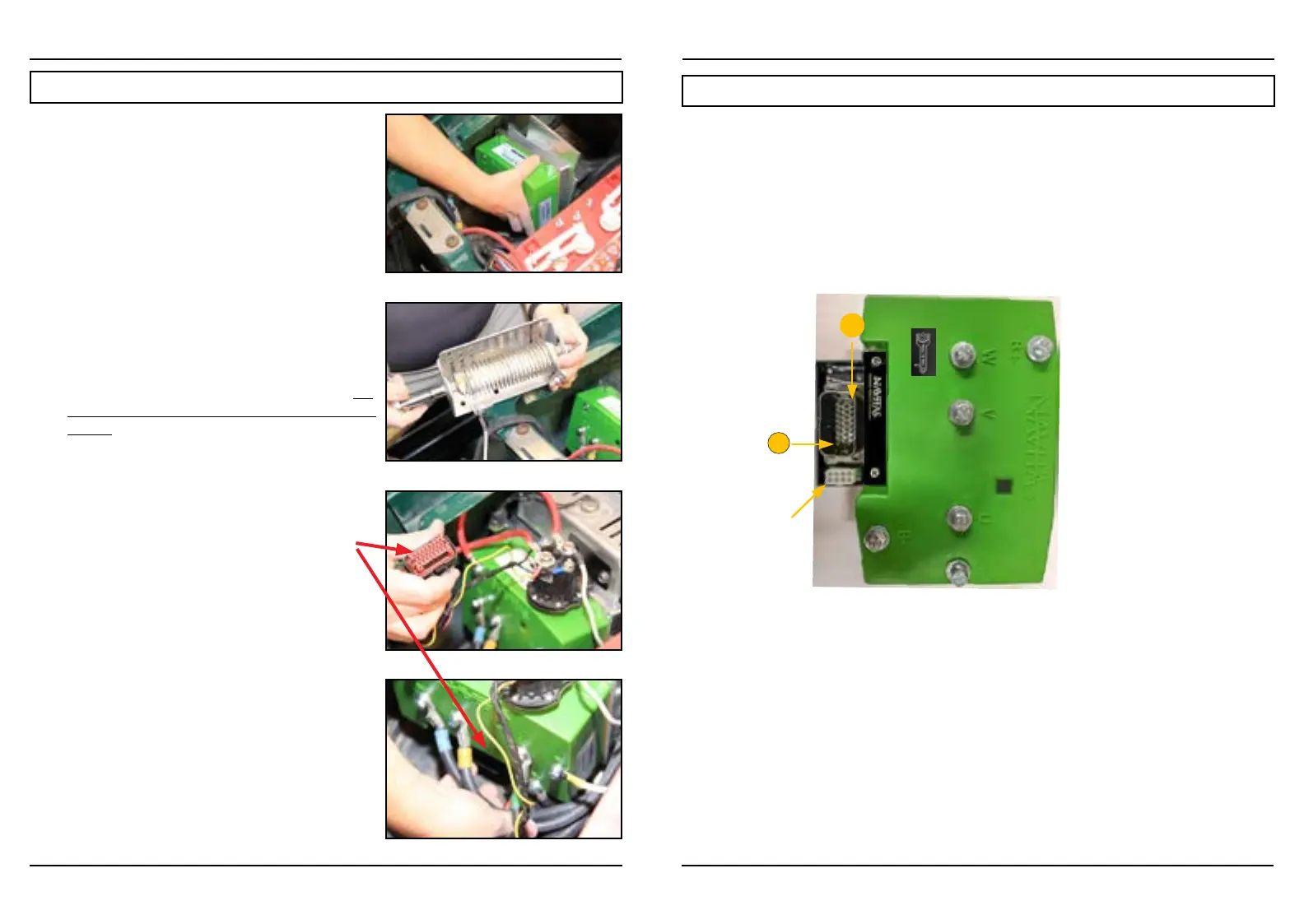

4. Mount Controller (Fig. 3)
• Use supplied bolts / washers / lock washers
• Bolt plate from back side
• Connect harness at bottom
5. Connect Controller
• Replace one existing resistor cable with the NEW
included longer resistor cable to resistor output
marked “R” on controller. Re-fasten other existing
resistor wire on other end of the resistor to the
Controller side of the solenoid or Controller B+. Do
not use Grey wire that was previously connected to
resistor.
• Re-fasten resistor cage to the plate
• Re-fasten solenoid to the cage using 2 of the OEM
bolts
(Fig. 4)
• Connect battery B- cable from battery pack to
controller
• Connect motor phase cables (U,V,W)
• Connect battery to B+ from solenoid
6. Connect OEM Wire Harness (Fig. 5 & 6)
• Connect OEM wire harness to adaptor module
7. Install On-The-Fly Programmer (optional)
• Install OTF (optional) (see install description in RXV
INSTALL instructions, p12)
• Connect OTF to Navitas adaptor module
• Zip Tie loose cables
8. TESTING INSTALLATION
• Lift drive wheels o ground
• Reconnect battery pack
INSTALLATION INSTRUCTIONS
RXV 23 (Danaher) Installation cont’d
INSTALLATION INSTRUCTIONS
RXV 23 (Danaher) Installation cont’d
Pinout for Controller
Diagrams and other updates available at:
NavitasVS.com/support
P1: Key In
P2: Brake Solenoid Out
P3: +5V PF
P4: AGND
P5: SPD A In
P6: SPD B In
P7: Brake In
P8: NA
P9: Throttle In
P10:Reverse Buzzer Out
P11:SOC Display Out
P12:Forward In
P13:Tow Switch In
P14:NA
P15:NA
P16:Motor Temperature In
P17:Charger Interlock In
P18:MAIN Solenoid Out
P19:Foot Switch In
P20:Reverse In
P21:NA
P22:Brake Light Relay Release
P23:NA
To OEM vehicle harness
To OTF Programmer
PN: 10-000686
P1: +12V PF
P2: OTF Regen
P3: OTF speed
P4: OTF acceleration
P5: +5V PF
P6
: OTF Lock
P7: OTF LED
P8: Analog Ground
Navitas TAC2 AC Motor Controller
for EZ-GO RXV Danaher
Product Model 10-000878-02
8-POS Molex
39-28-1083
23-POS Ampseal
776228-1
23
1
Module 40-000623
TAC2 for RXV Danaher
OTF
Issue Date: 20181219
Fig. 6
Fig. 5
Fig. 4
Fig. 3
Navitas TAC2 AC Motor Controller
for EZ-GO RXV Danahar
Product Model 10-000880-01 (440A)
10-000880-02 (600A)
