AE- 1 5 0 s y s t e m – U s e r M a n u a l
13
AE-150 installation

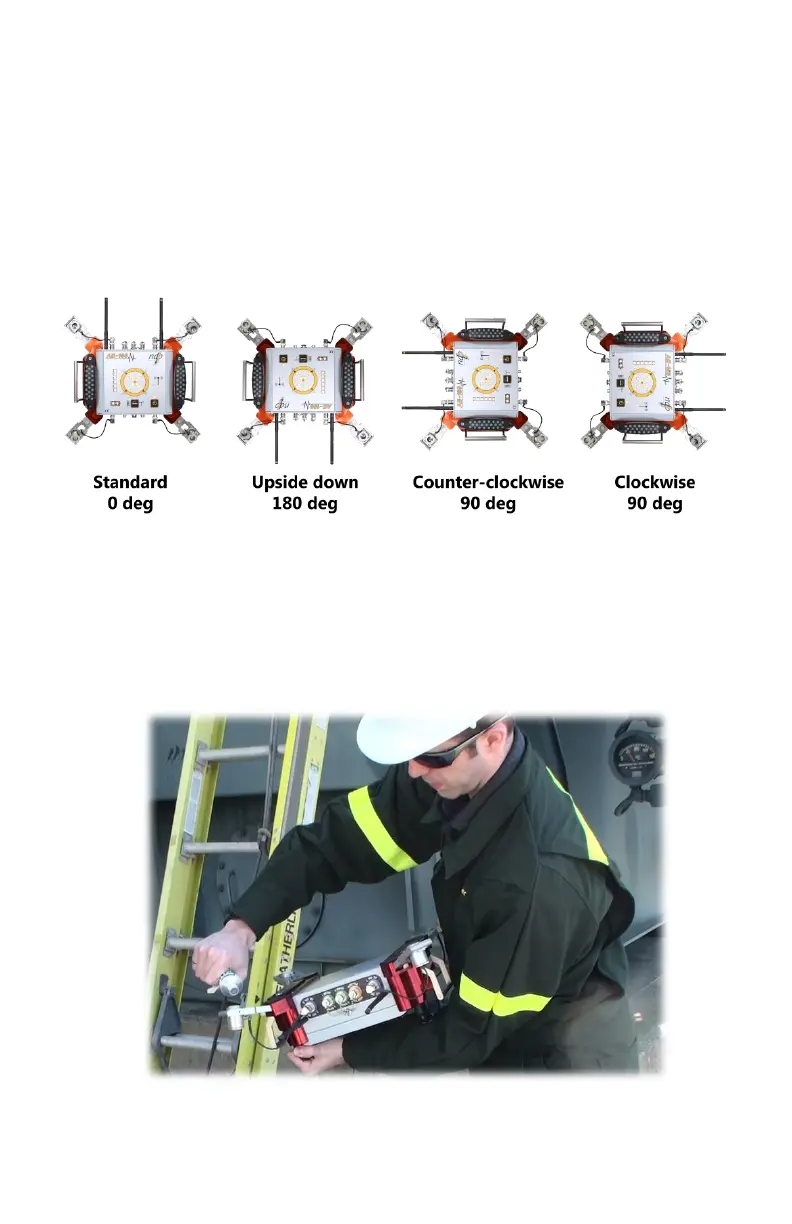

Rotation
The AE-150 instrument can be installed in any of the following rotations: 0°
(default), 180°, 90° counter-clockwise or 90° clockwise. Note the chosen
rotation as it will be used in Mirador Tx software.
Acoustic couplant
Gently clean all four acoustic sensors using a dry cloth.
Apply a thin layer (~3mm/ 0.25 in) of the provided acoustic couplant on all
four acoustic sensors.
