AE- 1 5 0 s y s t e m – U s e r M a n u a l

Initial setup

Start software

 Use the provided compact disc to install Mirador Tx software on your

computer (or contact ndb Technologies to obtain the latest version).

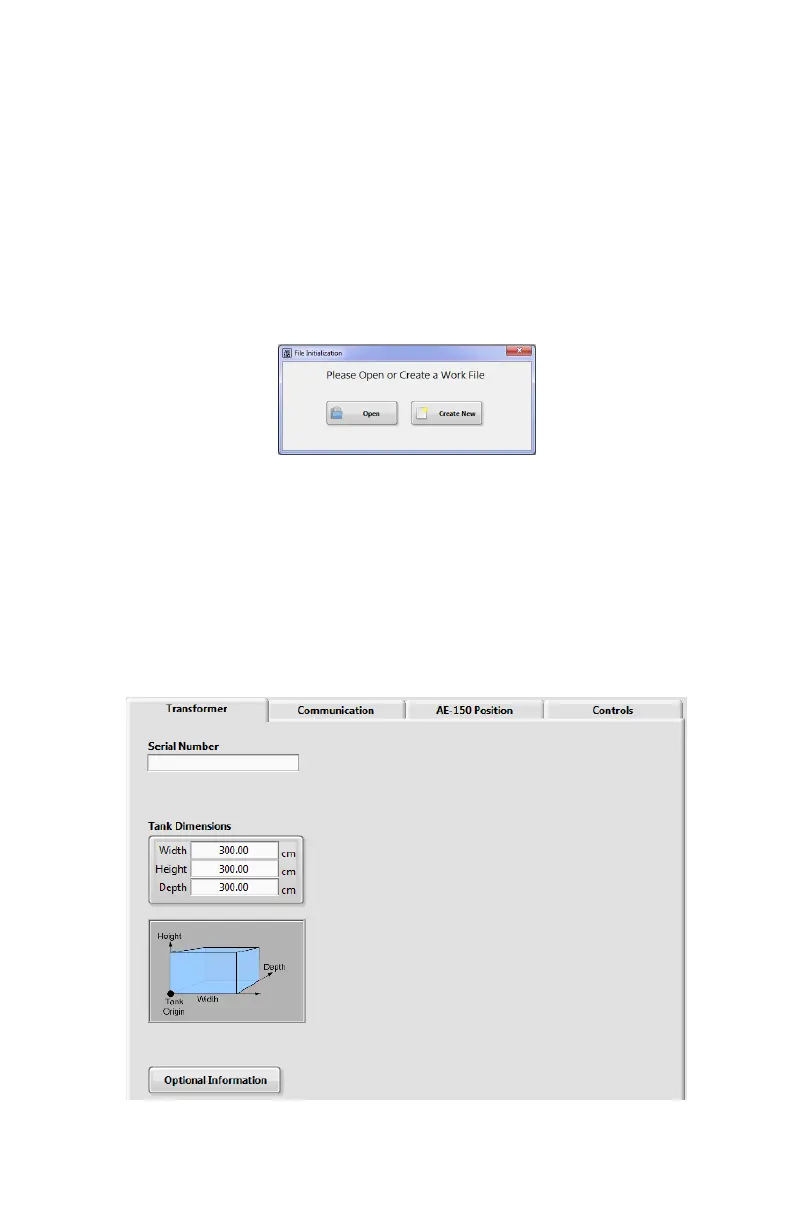

 Once installed, start Mirador Tx software and click Create New to

create a new file.

 Browse and select the desired location to save the file.

Transformer tab

 Click the AE-150 CONTROL > Transformer tab.

 Type the transformer’s serial number in the Serial Number field.

 Type the previously measured transformer tank dimensions in the Tank

Dimensions fields.

 (Optional) Click the Optional Information button to enter more details

(Company, Substation, Transformer identifier, etc.).
