AE- 1 5 0 s y s t e m – U s e r M a n u a l
49
o Controls tab => Accessories: This tab contains the inhibition and pulse
generator channel parameters:
Inhibition channels: The two Inhibition Channels are inputs used to
detect events such as a running pump or a running motor. These
voltage inputs are connected to a programmable comparator
module. These parameters are reserved for future use.
Pulser Output Channel: Enter the pulse period and pulse width,
then click Set to activate the pulse generator, or Stop to deactivate.
o Controls tab => Hardware: This tab contains the acoustic hardware
bandpass and the sensor pre-amplification voltage settings.

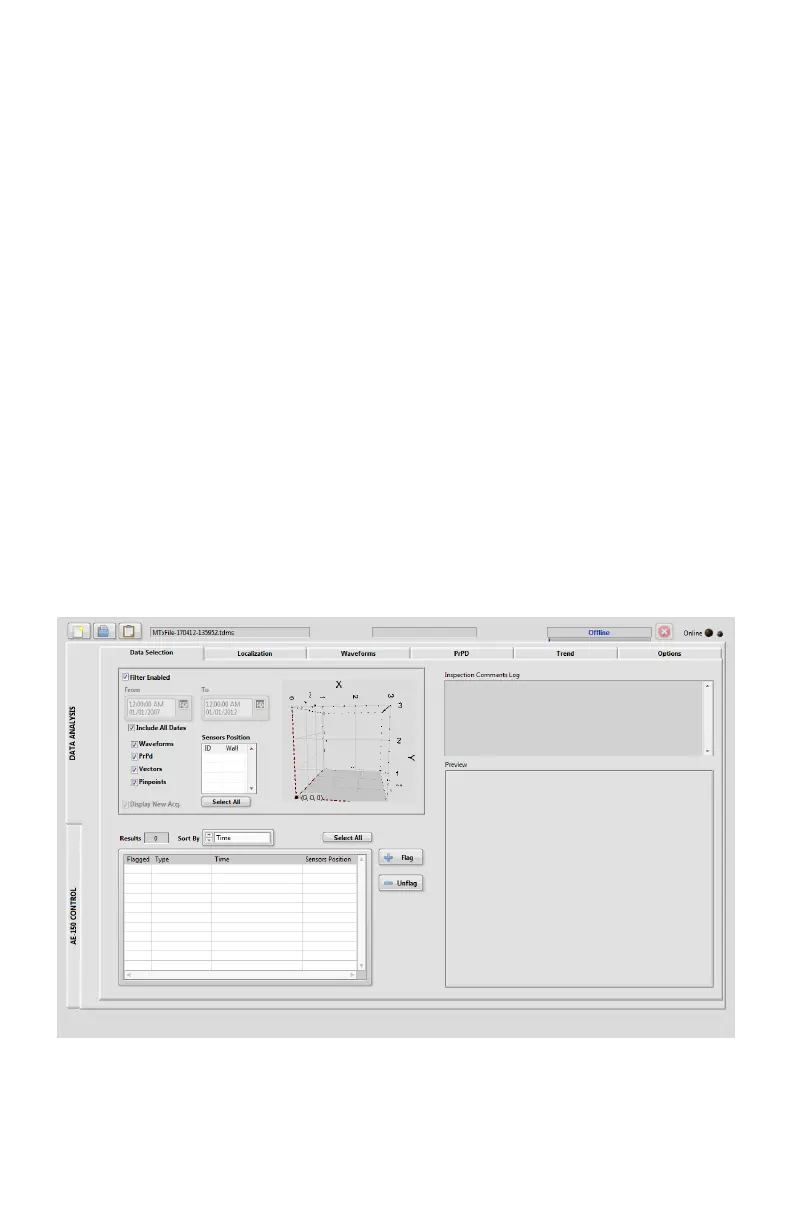

Data Analysis side tab
The Data Analysis side tab is divided in sub-tabs (Data Selection, Localization,
Waveforms, PrPD, Trend and Options) where acquired data will be analysed,
selected or discarded to create pinpoints and vectors in order to determine the
partial discharge source location in the transformer tank.
